Nya 10mm PVC Insulated Copper Wire
- Tianjin port Shanghai port Qingdao port or others
- T/T Credit Card
You May Like
-
6242Y - Twin & Earth 2.5mm Blue Brown + Bare Earth
-
China electrical wire production line galvanized wire
-
8 10 12 awg pvc insulated nylon sheathed THHN wire with UL listed
-
2.5mm Twin & Earth / PVC Flat Cable from experienced manufacturer
-
Low voltage electrical 2.5mm royal cord cable from Chinese direct factory
-
Professional Manufacturer strand wire cable PVC insulated nylon sheathed thhn electric wire
Product Details
Brand Name | RNE DA | Place of Origin | Hebei, China | |
Model Number | NYA BV | Type | Low Voltage | |
Insulation Material | PVC | |||
Conductor Material | Copper |
Product Description

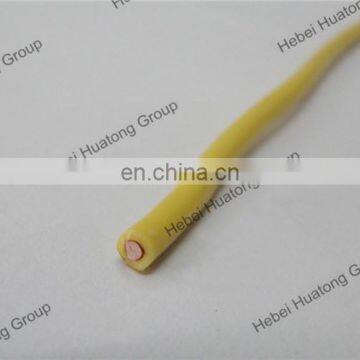

Nya 10mm PVC Insulated Copper Wire
1. Conductor: Copper/Aluminum
2. Standard:IEC60227
3. Product characteristics
1). Rated voltage U0/U 300/500V and 450/750V
2). The long-time permissible temperature of cable: BV-105 below 105°C,and the other below 70°C.
3). Conductor maximum short circuit(not more than 5 seconds)temperature shall not be higher than 160°c.
4). The power cable is not limited by drop in level when being laid, and the ambient temperature shall not be lower than 0°c.
5). The bend radius: the external diameter of cable <25mm, and the bend radius is above 4 times of the external diameter of cable. And the other is above 6 times of the external diameter of cable.
6). Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame.
7). Light weight, perfect bending properties, installed and maintained easily and conveniently.
8). Insulation sheath material and color: PVC in red, black, blue, and any color as required.
9). Type: Single or twin cables with different colors Provides OEM according to requests of customer.
4 Products parameter
HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC power cables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We are OEM for many USA, Europen, Australia cable company, 70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please
call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight
charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7
days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is
delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months
before the date you would like to get the products at your country.
