Product Details
| Brand Name | RENDA | Place of Origin | Hebei, China | |
| Model Number | RV | Type | Bare | |
| Application | Overhead | |||
Product Description

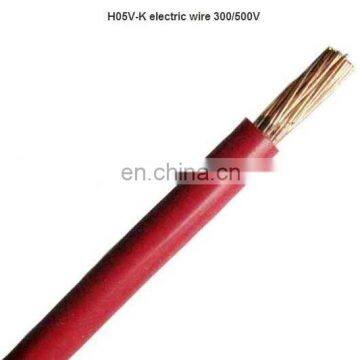

RV flexible wires H05V-K,H07V-K cable
1 Standard
GB5023.11997.JB 8734.15-1998, Q/ZEL 02-2002, GB 5023.17-1997, IEC227
2 Voltages U0/U:
450/750V300/500V300/300V.(600/1000V also available)
Max. permissible continuous operating temperature of the conductor: 70 The ambient temperature under installation should not below 0.
Impedance (ohms): 100±2ohm
3 Application
The products is suitable for use in power installations, fixed wiring or flexible
connections for electrical appliances like lighting, electronic equipment, instrument
and communication equipment with rated voltage 450/750V or less
4 Model and Name
Type | Name | Rated Voltage (V) | Cores | Nominal Sectional Area (mm2) |
60227IEC01(BV) | Copper conductor PVC insulated wire | 450/750 | 1 | 1.5-400 |
60227IEC02(RV) | Copper conductor PVC insulated flexible wire | 450/750 | 1 | 1.5-240 |
60227IEC05(BV) | Copper conductor PVC insulated wire | 300/500 | 1 | 0.5-1 |
60227IEC06(RV) | Copper conductor PVC insulated flexible wire | 300/500 | 1 | 0.5-1 |
60227IEC07(BV-90) | 90℃ resistance copper conductor PVC insulated wire | 300/500 | 1 | 0.5-2.5 |
60227IEC08(RV-90) | 90℃resistance copper conductor PVC insulated flexible wire | 300/500 | 1 | 0.5-2.5 |
60227IEC10(BVV) | Copper conductor PVC insulated PVC sheathed round cable | 300/500 | 2-5 | 1.5-35 |
60227IEC42(RVB) | Copper conductor PVC insulated parallel cable | 300/300 | 2 | 0.5-0.75 |
60227IEC52(RVV) | Copper conductor PVC insulated PVC sheathed round flexible cable | 300/300 | 2-3 | 0.5-0.75 |
60227IEC53(RVV) | Copper conductor PVC insulated PVC sheathed round flexible cable | 300/500 | 2-5 | 0.75-2.5 |
60227IEC56(RVV-90) | 90℃resistance copper conductor PVC insulated PVC sheathed round flexible wire | 300/300 | 2-3 | 0.5-0.75 |
60227IEC57(RVV-90) | 90℃resistance copper conductor PVC insulated PVC sheathed round flexible wire | 300/500 | 2-5 | 0.75-2.5 |
Shipping & Packaging
Certification
We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.
