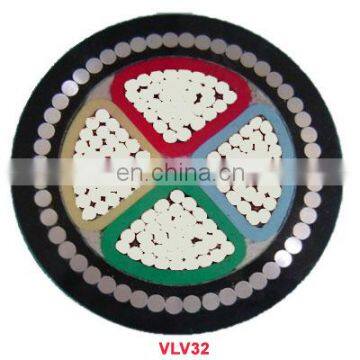

armoured power cable 4 Core PVC Cable low voltage pvc insulated power cable

Product Description

0.6/1KV PVC Insulated power cable:

1 Applicant:

The products can be produced and provided according to Chinese standard GB/T12706-2002(equivalent to IEC 60505).The factory can also manufacture the products that are based on British Standard(BS) and other standards.In addition,under the requirement of customers we can design and manufacture the products that have special performance.The products are used in fixed laying on transmission and distribution electrical lines of 50 HZ AC rated voltage up to 6 kV.

 2 Specific Property for Using

1.The long-time permissible working temperature of cable conductive core is not more than 70℃.
2.During short circuit(max permanent time is not more than 5 seconds),the max temperature of cable conductor is not more than 165℃.
3.The difference level of laying cable is not restricted.When laying the cable,ambient temperature is not lower than 0℃.
4.They have good chemical stability,and properties of acid resistance,alkali resistance,salt resistance,oil resistance,solvent resistance and flame resistance.
5.Light weight,good bending property and easy installation and maintenance

 3.1Type and Name:

3.2 Nominal thickness of insulation

3.3 DC resistance of conductor

3.4 Insulation Resistance

3.5 insulation resistance

 Details Show

   Shipping & Packaging

  Company Introduction

HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese

company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We areOEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.

 Certification

We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.

  FAQ

(1).When can I get the price?

We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please

call us or tell us in your e-mail so that we will regard your inquiry priority.

(2).How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. Sample is free, but the freight

charge should be paid.

(3).How long can I expect to get the sample?

After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7

days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express

account orprepay us if you do not have an account.

(4).What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.The best record we keep is

delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months

before the date you would like to get the products at your country.
