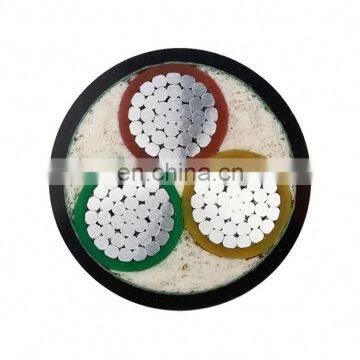

3 core 120mm aluminium power cable

China cable manufacturer pvc 3 core 120mm aluminium

electrical cable aluminum power cable

1 Construction:

  Conductor: aluminum or copper

  Insulation:PVC

  Sheath:PVC

  Rated voltage:0.6/1KV

   Certification:ISO9001:2008

2 Standard of products:

  The product is suitable for use in power distribution lines or fixed installations with rated power-frequency voltage up to and including 0.6/1KV.

 3 Application:

  For laying indoors, in tunnel or cable trench, unable to bear external mechanical forces, single core cable in magnetic duct is not permissible.

 4 Operating characteristics:

1). Rated power-frequency voltage Uo/U: 0.6/1KV.

2). Max. permissible continuous operating temperature of conductor: 70°C
3). Max. short-circuit temperature of the conductor shall not exceed: (5S maximum duration) 160°C

4). The ambient temperature under installation should not below 0°C

5). The bending radius of a cable should not be less than 15 times of the cable diameter.

5 Type and Name:

 Copper (aluminum) core, PVC insulated and sheathed power cables

Copper (aluminum) core, PVC insulated, PE sheathed power cables
Copper (aluminum) core, PVC insulated, steel tape armoring PVC sheathed power cables
Copper (aluminum) core, PVC insulated, steel tape armoring, PE sheathed power cables
Copper (aluminum) core, PVC insulated, steel wire armoring, PVC sheathed power cables
Copper (aluminum) core, PVC insulated, steel wire armoring, PE sheathed power cable

6 DC resistance of conductor:

 7 Insulation Resistance:

We are one of China top rank cable&wire manufacturer.Our products meet standards of GB,IEC,DIN,ASTM, JIS, NF, AS/NZS,CSA,GOST and so on. We also have obtained ISO9001,ISO14001,OHSAS18001,UL,CE,KEMA, TUV,SABS,PBS,Bureau Veritas,Lloyd,GL,NK,KR certifications.
We have obtained UL certifications for TC cable, DLO cable,RHH/RHW/RHW-2,XHHW/XHHW-2/SIS, THHN,SER/SEU/USE, MV-90/MV-105,MC cable,AC cable,TECK 90,SOOW,Welding cable,Mining cable,type DG,PV cable,Shipboard cable and so on.

1.25 years production experience and 16 years export experience .
2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3. OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback.  Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7.Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.

1.When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price,please call us or tell us in your e-mail so that we will regard your inquiry priority.

2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express  account or prepay us if you do not have an account.

4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
