CE certified PVC insulated for sale electric cable 5 x 6 mm

CE certified PVC insulated cable for sale electric cable 5 x 6 mm

Introduction:

PVC  insulated power cable not only has excellent electric,mechanical properties,but also has powerful resistance againest chemical corrosion,heataging and environmental stress.Its structure is simple,too.

PVC cable can be produced according to our Factory's specification which is equivalent to IEC60502.We can design and manufacture special XLPE cable according to the other standards,required by the customers.

Construction:

Number of cores: 1 .2.3.4.5,3+1,3+2,4+1 cores

Relative manufacturing standards: IEC60505, BS, DIN.

Packing: Wooden drum, steel wooden drum or as your request

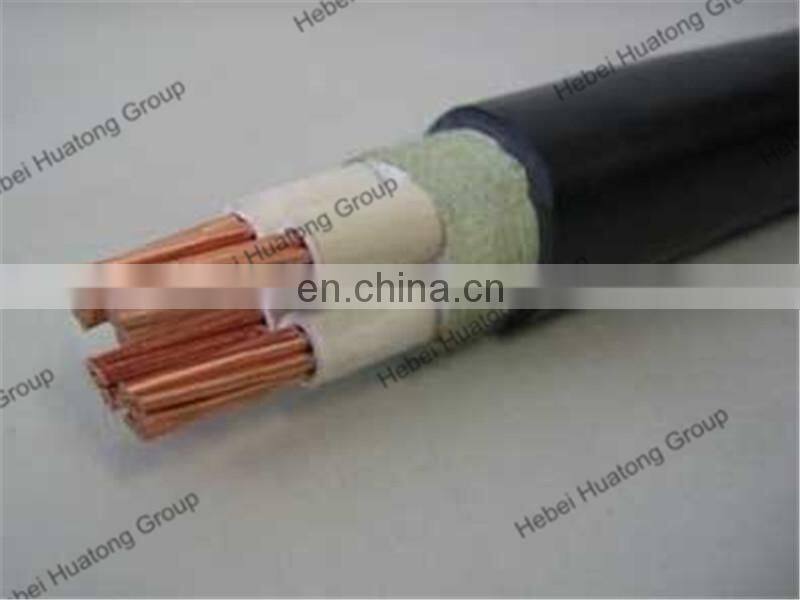

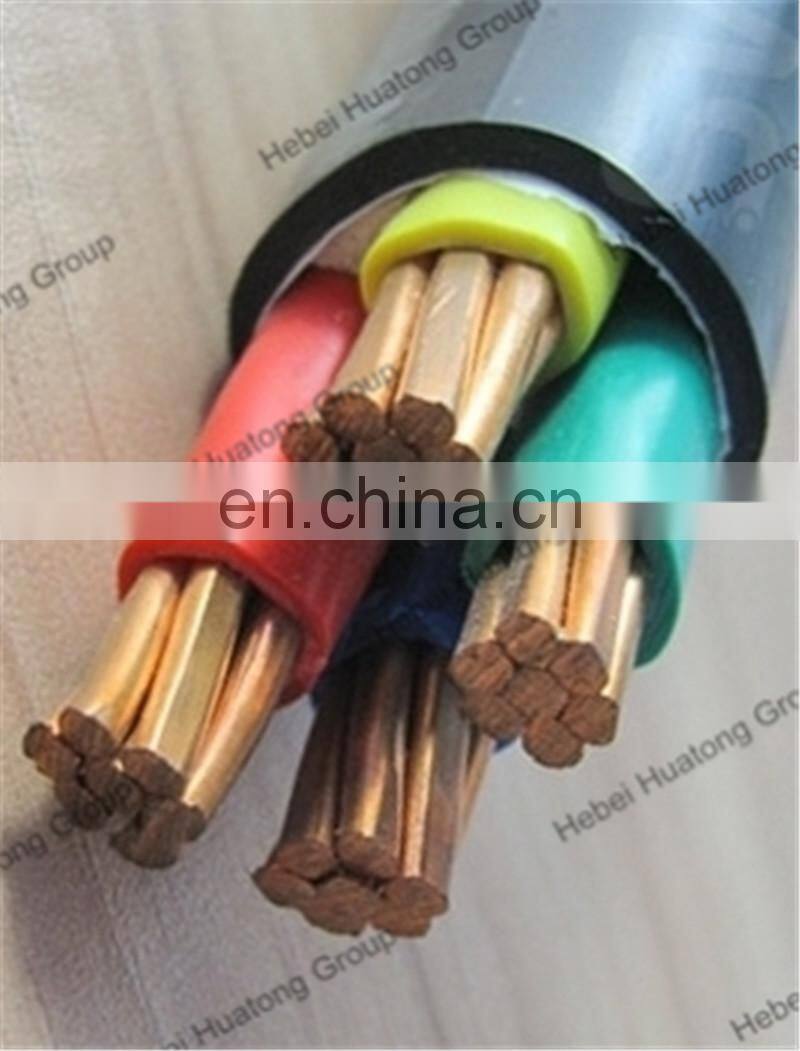

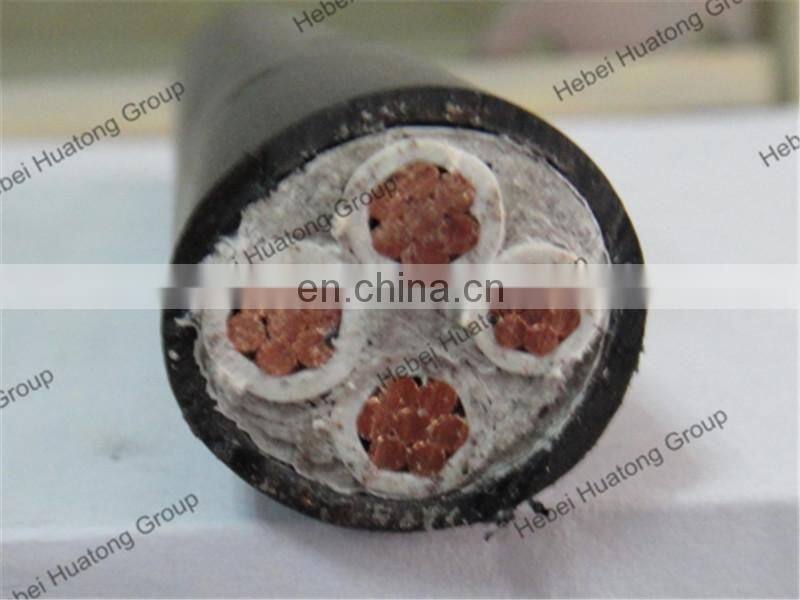

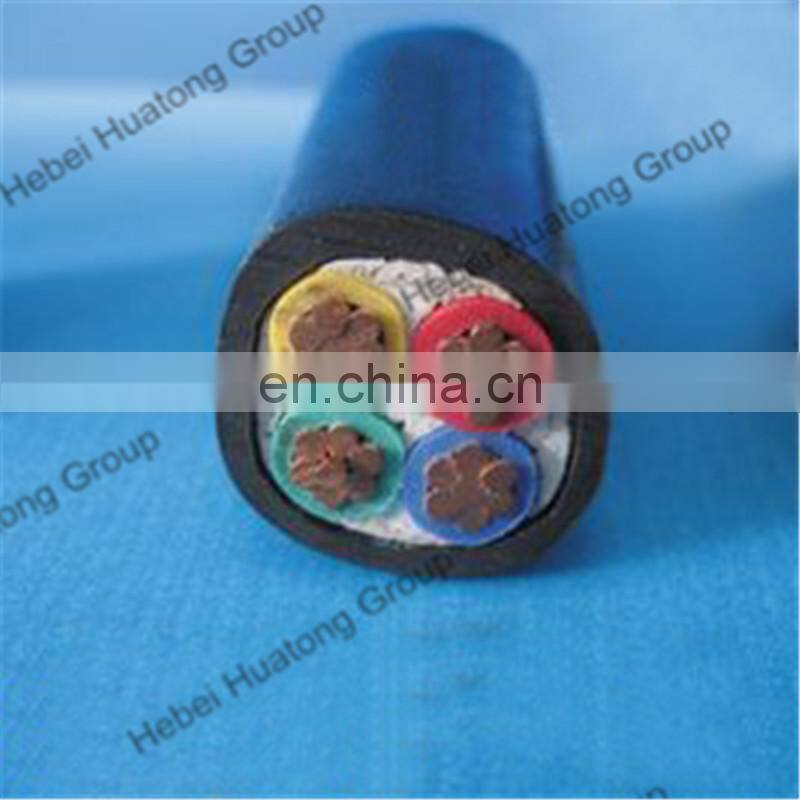

Power Cable (structure)

-Conductor:
Solid or stranded copper or aluminum

-Insulation:
PVC

-Circuit Identification:
The insulation shall be red, black

-Filler:
Polypropylene lament with lapped binding tape

-Inner Sheath:
Polyvinyl chloride (Black)

-Core-covering:
Binding tape

-Outer Sheath:
Polyvinyl chloride (Black)

-Application: for laying indoor,tunnel,canal and underground.

 Using features

1. The highest allowed operating temperature of conductor for long-term working is 90oC. In short-circuit (Max. Long term is no more than 5 seconds). The highest temperature for conductor is no more than 250 degrees.

2 . D.C Resistance of the conductor complies with the stipulations of GB/T3956-1997.

3 . The environment temperature should be no lower than 0 when lay. Otherwise it should be preheate d.

4.The cable is laid without horizontal drop limit. The Min. Bending radius of three core cable should be no smaller than 12 times of cable outer diameter.

5.. Working Frequency Voltage Test:.

For cable with Uo of 3.6kv~18kV: 3.5Uo/5min without puncture.

6 . Partial Discharge Test: The discharge volume should be no more than 10pC under 1.73Uo for the cable.

Details Show

   Shipping & Packaging

 Certification

We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.

  FAQ

(1).When can I get the price?

We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please

call us or tell us in your e-mail so that we will regard your inquiry priority.

(2).How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. Sample is free, but the freight

charge should be paid.

(3).How long can I expect to get the sample?

After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7

days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express

account orprepay us if you do not have an account.

(4).What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.The best record we keep is

delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
