Home > Products > PVC POWER CABLES > 0.6/1kv pvc insulated and sheathed copper 2 core 16mm pvc cable

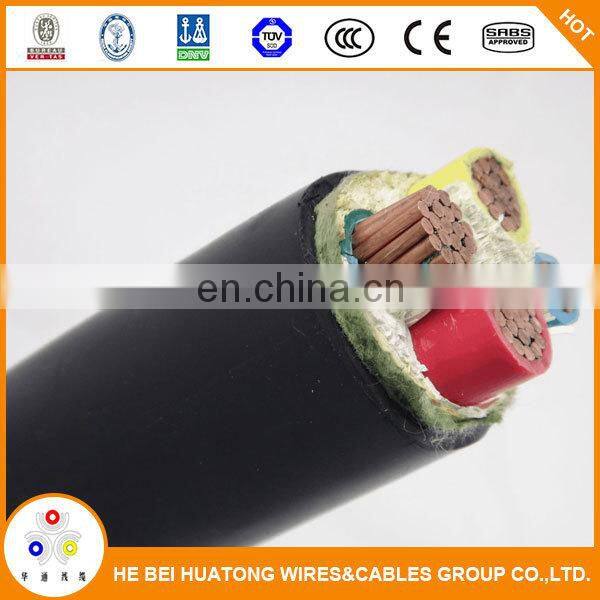

0.6/1kv pvc insulated and sheathed copper 2 core 16mm pvc cable
- Tianjin port Qing dao port Shang hai port
- T/T Credit Card
You May Like
-
0.6/1kV PVC insulated and sheathed 4 core 10mm2 copper cable and 16 mm2
-
2 core copper pvc insulated 16mm pvc cable
-
600/1000V copper conductor pvc insulated and sheathed electric cable 4x25
-
600V 1000V pvc coated flexible copper cable 16mm electric wire
-
CE listed 0.6/1kv copper conductor armoured electric cable 4x25
-
CE listedcopper conductor nyy cable 120mm
Product Details
| Brand Name | RNE DA | Place of Origin | Hebei, China | |
| Model Number | NYY,VV,VLVNYY-O | |||
| Application | Construction | Insulation Material | PVC | |
| Jacket | PVC | Conductor Material | Copper |
Product Description
0.6/1kv pvc insulated and sheathed copper 2 core 16mm pvc cable
1 Construction:
Conductor: copper,stranded
Insulation:PVC
Sheath:PVC
Rated voltage:0.6/1KV
Certification:ISO9001:2008
2 Standard of products
The product is suitable for use in power distribution lines or fixed installations with rated power-frequency voltage up to and including 0.6/1KV.
3 Application:
For laying indoors, in tunnel or cable trench, unable to bear external mechanical forces, single core cable in magnetic duct is not permissible.
4 Operating characteristics:
1). Rated power-frequency voltage Uo/U: 0.6/1KV.
2). Max. permissible continuous operating temperature of conductor: 70°C
3). Max. short-circuit temperature of the conductor shall not exceed: (5S maximum duration) 160°C
4). The ambient temperature under installation should not below 0°C
5). The bending radius of a cable should not be less than 15 times of the cable diameter.
5 Type:
Copper (aluminum) core, PVC insulated and sheathed power cables
Copper (aluminum) core, PVC insulated, PE sheathed power cables
Copper (aluminum) core, PVC insulated, steel tape armoring PVC sheathed power cables
Copper (aluminum) core, PVC insulated, steel tape armoring, PE sheathed power cables
Copper (aluminum) core, PVC insulated, steel wire armoring, PVC sheathed power cables
Copper (aluminum) core, PVC insulated, steel wire armoring, PE sheathed power cables
low voltage single core pvc insulated cable 1x16mm2 nyy
Specification of single core 1x16mm2 nyy cable:
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billionYuan.Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, largescale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria,Congo, Middle East and Southeast Asia and so on.
We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.

(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please
call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight
charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7
days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is
delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months
before the date you would like to get the products at your country.
