Home > Products > PVC POWER CABLES > Hebei 4 core 70mm2 95mm2 120mm2 150mm2 185mm2 240mmn2 PVC insulated cable wire unarmoured power cable
Hebei 4 core 70mm2 95mm2 120mm2 150mm2 185mm2 240mmn2 PVC insulated cable wire unarmoured power cable
- Tianjin port Qingdao port Shang hai port
- T/T Credit Card
You May Like
-
0.6/1KV 35mm2 50mm2 70mm2 95mm2 120mm2 armoured cable steel tape cable underground PVC cable specification
-
Under ground flame retardant 0.6/1KV 4* 95mm2 PVC insulated armoured cable steel tape cables
-
China supplier PVC insulated amor electric power cable with CE certificate
-
2015 new products pvc insulated 4 core 120mm2 150mm2 185mm2 240mm2 swa armoured cable
-
3 Core Low Voltage PVC Insulated aluminum cable 25mm
-
0.6/1kv PVC Insulated 5 Core 50mm aluminum cable price
Product Details
Brand Name | RNE DA | Place of Origin | Hebei, China | |
Model Number | VLV | Type | Low Voltage | |
Application | Construction | Insulation Material | PVC | |
Jacket | PVC | Conductor Material | Aluminum |
Product Description

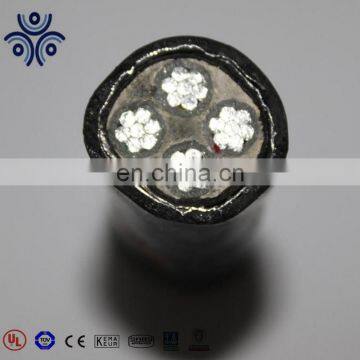

Hebei 4 core 70mm2 95mm2 120mm2 150mm2 185mm2
240mmn2 PVC insulated cable wire unarmoured power cable
1 Construction:
Conductor: aluminum or copper
Insulation:PVC
Sheath:PVC
Rated voltage:0.6/1KV
Certification:ISO9001:2008
2 Standard of products:
The product is suitable for use in power distribution lines or fixed installations with rated power-frequency voltage up to and including 0.6/1KV.
3 Application:
For laying indoors, in tunnel or cable trench, unable to bear external mechanical forces, single core cable in magnetic duct is not permissible.
4 Operating characteristics:
1). Rated power-frequency voltage Uo/U: 0.6/1KV.
2). Max. permissible continuous operating temperature of conductor: 70°C
3). Max. short-circuit temperature of the conductor shall not exceed: (5S maximum duration) 160°C
4). The ambient temperature under installation should not below 0°C
5). The bending radius of a cable should not be less than 15 times of the cable diameter.
5 Type and Name:
Copper (aluminum) core, PVC insulated and sheathed power cables
Copper (aluminum) core, PVC insulated, PE sheathed power cables
Copper (aluminum) core, PVC insulated, steel tape armoring PVC sheathed power cables
Copper (aluminum) core, PVC insulated, steel tape armoring, PE sheathed power cables
Copper (aluminum) core, PVC insulated, steel wire armoring, PVC sheathed power cables
Copper (aluminum) core, PVC insulated, steel wire armoring, PE sheathed power cable
Type | Name |
VV VLV | Copper(aluminum)Conductor,PVC insulated and Sheathed Power Cable |
VY VLY | Copper(aluminum)Conductor,PVC insulated,PE Sheathed Power Cable |
VV22VLV22 | Copper(aluminum)Conductor,PVC insulated,Steel-tape Armoured,PVC Sheathed Power Cable |
VV23VLV23 | Copper(aluminum)Conductor,PVC insulated,Steel-tape Armoured,PE Sheathed Power Cable |
VV32 VLV32 | Copper(aluminum)Conductor,PVC insulated,Fine Steel-wire Armoured,PVC Sheathed Power Cable |
VV33VLV33 | Copper(aluminum)Conductor,PVC insulated,PE Sheathed Power Cable |
VV42VLV42 | Copper(aluminum)Conductor,PVC insulated,Thick Steel-wire Armoured,PVC Sheathed Power Cable |
VV43VLV43 | Copper(aluminum)Conductor,PVC insulated,Thick Steel-wire Armoured,PE Sheathed Power Cable |
6 DC resistance of conductor:
Nominal | at 20℃,DC resistance is | Nominal | at 20℃,DC resistance is | Nominal | at 20℃,DC resistance is | |||
Copper Core | Aluminum Core | Copper Core | Aluminum Core | Copper Core | Aluminum Core | |||
1.5 | 12.1 | 18.1 | 35 | 0.524 | 0.868 | 240 | 0.0754 | 0.125 |
2.5 | 7.41 | 12.1 | 50 | 0.387 | 0.641 | 300 | 0.0601 | 0.100 |
4 | 4.61 | 7.41 | 70 | 0.268 | 0.443 | 400 | 0.0470 | 0.0778 |
6 | 3.08 | 4.61 | 95 | 0.193 | 0.320 | 500 | 0.0366 | 0.0605 |
10 | 1.83 | 3.08 | 120 | 0.153 | 0.253 | 630 | 0.0283 | 0.0469 |
16 | 1.15 | 1.91 | 150 | 0.124 | 0.206 | 800 | 0.0221 | 0.0369 |
25 | 0.727 | 1.20 | 185 | 0.0991 | 0.164 | 1000 | 0.0176 | 0.0291 |
7 Insulation Resistance:
Test item | PVC insulated Cable | XLPE insulated Power Cable | |
0.6/1KV | 3.6/6KV | ||
volume resistivity (ρΩ.cm) | 1013 | 1014 | - |
Ki insulation resistivity constant(MΩ.km) | 36.7 | 367 | - |
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects.
Products: XLPE insulating power cables with voltage up to 35kV, PVC insulated power cables, mining cable, general rubber sheathed flexible cable, Submersible oil pump cable,locomotivevehicle cables, elevator cable,shipboard cable, nuclear station cables, prefabricated branch cables, ABC cables, control cables, special cables, the motor winding connecting conductors, aluminum stranded conductor (AAC) and aluminum stranded steel-core reinforced conductor (ACSR) so on.
We are JV with Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables.submersible oil pump cables, .)and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria, South Africa,Congo, Middle East and Southeast Asia countries and so on.
1. 22 years production experience and 13 years export experience .
2.high-end Machinery and equipment for high quality cable .
3.manufacture various of cable :power cable,control cable,abc cable,submersible oil pump cable,rubber cable,elevator cable,electric cable...
4. products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL,DNV:
system ceryification:ISO9001,ISO14001,OHSAS18001
5.our product sells all over the world and has the good reputation.
fessional teamwork service for you actively.
7.quick solution and long time online time waiting for your inquiry.
8.rapid delivery and feedback.
9. Stock available, Free sample
10.We can do that you expect
(1)When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, pleasecall us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freightcharge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
(5)What cables does Hua Tong manufature?XLPE insulating power cables with voltage up to 35kV, PVC insulated power cables, mining cable, general rubber sheathed flexible cable, Submersible oil pump cable, locomotive vehicle cables, elevator cable,shipboard cable, nuclear station cables, prefabricated branch cables, ABC cables, control cables, special cables, the motor winding connecting conductors, aluminum stranded conductor (AAC) and aluminum stranded steel-core reinforced conductor (ACSR) so on.
(6). Which payment terms do you accept?
A: The payment term varies with different price level and total value of every contract.
The following are most common terms:
a.100% TT advance for small amount orders.
b.30% T/T down payment, balance payment negotiable accordingly.
