Home > Products > PVC POWER CABLES > PVC insulation and sheath stranded wire ground 70mm cable 35mm2 wire
PVC insulation and sheath stranded wire ground 70mm cable 35mm2 wire
- Tianjin port or other main port
- T/T Credit Card
You May Like
-
PVC insulated and sheath steel wire SWA 25mm2 armoured cable
-
0.6/1KV Cu/PVC/SWA/PVC 4 core 185 mm2 Armored Cable
-
NYY 0.6/1KV underground cable Cu/PVC/PVC without armored power cable
-
Low voltage SWA copper armoured cable 4 core 25mm power cable
-
1x300mm2 power cable with CE certificate
-
Super quality copper electric wire and cable power cable NYY-O NYY-J 16mm cable
Product Details
| Brand Name | RENDA | Place of Origin | Hebei, China | |
| Model Number | VV | Type | Medium Voltage | |
| Application | Construction | Insulation Material | PVC | |
| Jacket | PVC |
Product Description

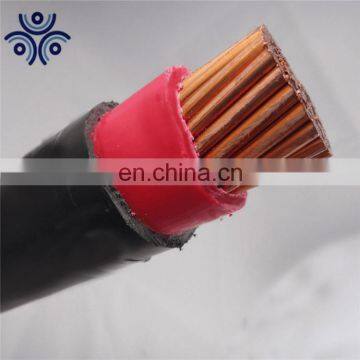

PVC insulation and sheath stranded wire ground 70mm cable 35mm2 wire
1 Construction:
Conductor: copper,stranded
Insulation:PVC
Sheath:PVC
Rated voltage:0.6/1KV
Certification:ISO9001:2008
2 Standard of products
The product is suitable for use in power distribution lines or fixed installations with rated power-frequency voltage up to and including 0.6/1KV.
3 Application:
For laying indoors, in tunnel or cable trench, unable to bear external mechanical forces, single core cable in magnetic duct is not permissible.
4 Operating characteristics:
1). Rated power-frequency voltage Uo/U: 0.6/1KV.
2). Max. permissible continuous operating temperature of conductor: 70°C
3). Max. short-circuit temperature of the conductor shall not exceed: (5S maximum duration) 160°C
4). The ambient temperature under installation should not below 0°C
5). The bending radius of a cable should not be less than 15 times of the cable diameter.
5 Type:
Copper (aluminum) core, PVC insulated and sheathed power cables
Copper (aluminum) core, PVC insulated, PE sheathed power cables
Copper (aluminum) core, PVC insulated, steel tape armoring PVC sheathed power cables
Copper (aluminum) core, PVC insulated, steel tape armoring, PE sheathed power cables
Copper (aluminum) core, PVC insulated, steel wire armoring, PVC sheathed power cables
Copper (aluminum) core, PVC insulated, steel wire armoring, PE sheathed power cables
wooden drum or steel wooden drum or as your request.
Conductor shape round,fan-shaped
Nominal section 1.5-240mm2
Number cores 1-5core,4+1core,3+2core
Standard IEC60502
Rated voltage Low voltage
Certificate ISO9001-2008
Operating working temperature 70 degrees for PVC insulated
Packing length 1500m,2000m,2500m or stipulated by clients.
Exporting regions Southeast Asia,Africa,Mid East,South America.
HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We areOEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.
We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC
DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained
ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR
certificates.
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
