Home > Products > Stainless Steel oil sight glass > BSP Thread G1 INCH Stainless Steel 304 Liquid Oil Level Sight Glass With Borosilicate Glass

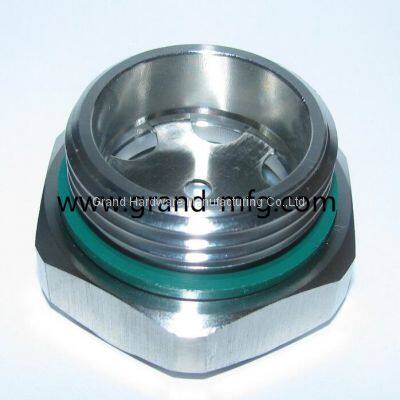

BSP Thread G1 INCH Stainless Steel 304 Liquid Oil Level Sight Glass With Borosilicate Glass
- Ningbo port
- T/T
- 45 days
You May Like
-
G Thread 3/8 1/2 3/4 Inch Oil Level Indicators to Check Oil Level Sight Glass
-
GM-HDN38 Dome Brass Oil Sight Glass Used for Compressor,roots Blower,speed Reducers,pump
-
Male G Thread 1/8",1/4",3/8",1/2",3/4",1",2"steel Oil Drain Plugs Nickel Plated
-
NPT 1/2\" 3/8\" Domed Shaped Oil Sight Glass for Cooling System
-
PPC's Low-cost Sight Glasses on the Market for Visual Inspection of Flow Liquids
-
Hydraulic Oil Level Indicator With Level Marks
Product Details
| Brand Name | grand-mfg | Place of Origin | China | |
| Model Number | GRAND-MFG | Standard or Nonstandard | Standard |
Product Description
GRAND-MFG sight glasses & breather vent plugs
Any special demands please just contact us and send detailed requirements for solutions.
Grand-MFG sincerely to support every customer, hope our quality parts help with your fulture business soon!
Stainless steel Oil level Sight glass, oil sight gauge, oil sight gage, oil level indicator, liquid sight glass, sight window, view ports, male thread sight glasses, domed sight glass plug
Material
Body: SS304, SS304L, SS316, SUS316L SUS304, SUS304L, SUS316, SUS316L
O-Ring: Viton and NBR
Glass: Natural Glass
Glass Thickness: 2mm to 5 mm
Glass Type: General Glass, Tempered Glass and Borosilicate Glass
Resist Temperature Range: -30 Centigrade to 120 Centigrade.
Pressure Range: 5-10 Bar or 0.5MPa to 1 MPa.
Connections: NPTF, NPT, UNC, UNF, Metric and BSP (G thread)
Size:M10X1, M16X1.5,M20X1.5, ,M27X1.5,M33X1.5,
G 3/8,G 1/2,G 3/4,G 1 NPT 3/8, NPT 1/2,NPT 3/4,NPT 1
MOQ: 2000 Pcs each size
Delivery time: 20 days.
Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes,
Speed Reducer, Compressor and Power Transmission
| item | SS sight glasses |
| material | Stainless steel 304,Stainless steel 304L,Stainless Steel 316, Stainless steel 316L |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |
| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
Any demands just contact us or vist our GRAND-MFG website to get details.Thank you.
