- Grand Hardware Manufacturing Co.,Ltd
-
Taizhou, Zhejiang, China
- Main products: oil level sight glass, oil level indicator sight glass, oil sight plug, fused oil sight glass, breather air vent plug, oil sight window, steel oil drain plug, oil level gauge, brass oil sight glass, steel oil sight glass, aluminum oil sight glass, hydraulic oil level gauge
Home > Products > Aluminum Oil Sight Glass > Aluninum Oil Level Sight Glasses OEM and ODM Service G3/4 Inch

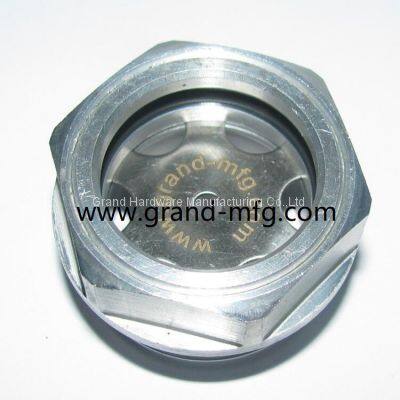

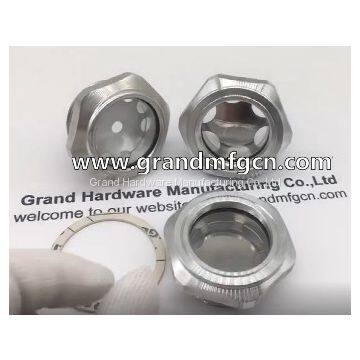

Aluninum Oil Level Sight Glasses OEM and ODM Service G3/4 Inch
- Ningbo port
- T/T
- 45 days
You May Like
-
Aluminum Die Casting Fir Fighting Flammable and Explosive Detector Aluminum Housing
-
MNPT 2 INCH Stainless Steel Ss304 Liquid Sight Glass Oil Levels Glass Window
-
Male NPT Thread 1/2\" Stainless Steel 304 Oil Level Sight Glasses
-
MNPT 3/4 Stainless Steel Sight Glass SS304 Pressure Vessel Liquid Level Sight Gauge
-
Male Metric Thread M36X1.5 Oil Sight Glasses for Radiator Cooling System Sight Glass
-
Aluninum Blower Oil Level Sight Glasses OEM and ODM Service G 3/4
Product Details
| Brand Name | www.grandmfgcn.com | Place of Origin | China | |
| Model Number | GM | Material | Other, ALUMINUM | |
| Type | Sight Glass | Shape | Equal | |
| Technics | Other, ALUMINUM BAR | Connection | Male | |
| Head Code | Hexagon |
Product Description
Material Body: Aluminum 6061 T6/Aluminum 6063
O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal
Glass Thickness: 2mm to 5 mm
Reflectors: Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 120'C
Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.
| item | aluminum sight glasses |
| material body | Aluminum 6061 T6/Aluminum 6063 |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |
| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | UNC,UNF,Metric and BSP(G thread) |
| size | Below you will get the size you wanted.Another size is okay. OEM are welcome. |
| Usage | Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission. |
Any demands just visit GRAND-MFG web and let me know
the item NO. you need.Thank you.
