Home > Products > Brass Oil sight glass > Aluninum Blower Oil Sight Glasses OEM Metric Aluminum Sight Glass Plugs

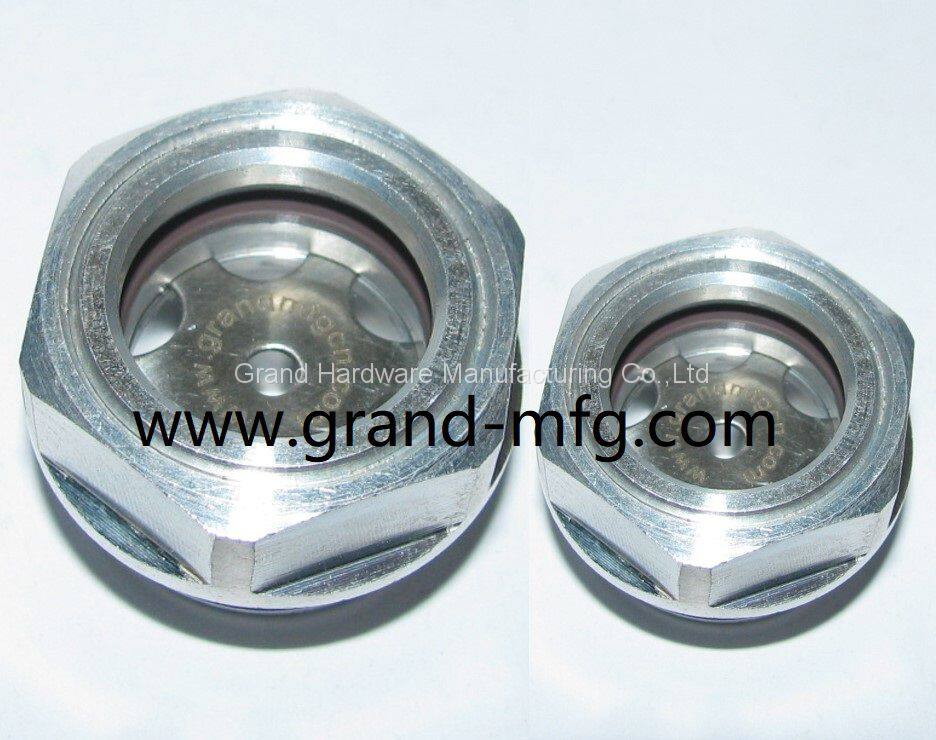

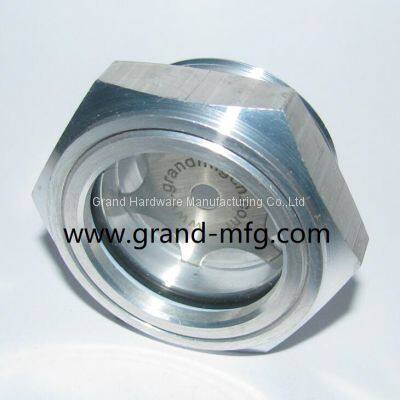

Aluninum Blower Oil Sight Glasses OEM Metric Aluminum Sight Glass Plugs
US$ 0.68 - 4
/ Piece
500 Pieces(Min. Order)
- Ningbo port
- T/T
- 45 days
You May Like
-
100 Bar Stainless Steel 304 Oil Levels Sight Glass MNPT Thread 1/4 1/2 3/8 Inch
-
Brass Oil Level Glass Sights for Reducers Compressors Gearboxes Hydraulic Tank G3/8 G3/4
-
High Pressure Stainless Steel 316L Oil Level Sight Glass Male Npt Thread 1/4 Inch 2 Inch
-
High Pressure Stainless Steel 316L Oil Level Sight Glass Male Npt Thread 1/4 Inch 2 Inch
-
High Pressure Stainless Steel 316L Oil Level Sight Glass Male M18 M27 M36x1.5
-
High Pressure Stainless Steel 316 Oil Level Sight Glass Male M18 M27 M36x1.5
Product Details
| Brand Name | www.grand-mfg.com | Place of Origin | China | |
| Model Number | GM | Material | Other, ALUMINUM | |
| Type | Sight Glass | Shape | Equal | |
| Technics | Other, ALUMINUM BAR | Connection | Male | |
| Head Code | Hexagon |
Product Description
Material Body: Aluminum 6061 T6/Aluminum 6063
O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal
Glass Thickness: 2mm to 5 mm
Reflectors: Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 120'C
Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.
| item | aluminum sight glasses |
| material body | Aluminum 6061 T6/Aluminum 6063 |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |
| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | UNC,UNF,Metric and BSP(G thread) |
| size | Below you will get the size you wanted.Another size is okay. OEM are welcome. |
| Usage | Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission. |
ANY SPECIAL DEMANDS JUST CONTACT US OR VISIT OUR GRAND-MFG WEBSITE TO GET THE ITEM NO..
