Home > Products > Stainless Steel oil sight glass > stainless steel 304 liquid water flow sight glass manufacturer NPT BSP Metric thread
stainless steel 304 liquid water flow sight glass manufacturer NPT BSP Metric thread
0.68 - 10
/ Piece
500 Pieces(Min.Order)
- Ningbo port
- T/T
- 45 days
You May Like
Product Details
| Brand Name | grandmfg | Place of Origin | China | |
| Model Number | GRAND-MFG | Type | Oil PUmp | |
| Size | 1/2“,3/4“,1“,1-1/4“,1-1/2“,2“ | Warranty | grandmfg |
Product Description
GRAND-MFG sight glasses & breather vent plugs
Any special demands please just contact us and send detailed requirements for solutions.
Grand-MFG sincerely to support every customer, hope our quality parts help with your fulture business soon!
Material Body: Stainless steel 304,Stainless steel 304L,Stainless Steel 316,Stainless steel 316L
O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal
Glass Thickness: 2mm to 5 mm
Reflectors: Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 120'C
Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.
| item | SS sight glasses |
| material | Stainless steel 304,Stainless steel 304L,Stainless Steel 316, Stainless steel 316L |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |
| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
| item | sight glasses,oil gauges |
| oil drain plugs,steel plugs | |
| breather vent plugs | |
| auto radiator parts | |
| magnetic drain plugs | |
| precision machined parts(brass,steel,stainless steel,aluminum) hydraulic steel fittings OEM and ODM business welcome. | |
| website | |
| sales department | Grace |
| grandmfg@vip.126.com |
| item | SS machined parts |
| material | SS304,SS316 |
| finish | Natural |
| service | OEM and ODM business |
| Dimension Tolerance: | CNC Lathe +/-0.01 mm. General Lathe +/-0.1 to 0.2 mm |
| item | brass breather vent plugs |
| material | brass or aluminum |
| Thread Type | BSP,Metric,NPT |
| finish | Natural and Nickel Plated |
| size | Any Size OEM are welcome. |
| Work Pressure | 0.005 MPa to M 0.03 Mpa |
| Tempture Range | : -30 Cent degree to 130 Cent degree. |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission. |

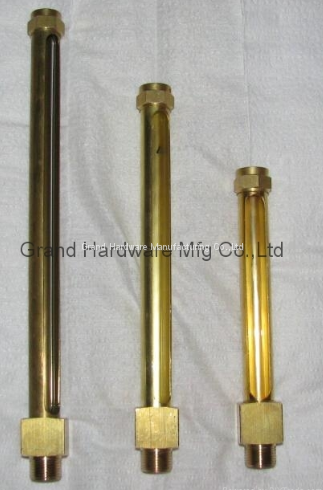

| item | brass sight gauges |
| Housing | brass tube |
| tube | quartz glass tube |
| O-Ring and flat gaskets | NBR Rubber |
| Thread szie | M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2” |
| Temperature resistant | : -20’C to 120 ‘C. / 0’F to 260 ‘F |
| Distance of two bolts | 80mm to 600mm |

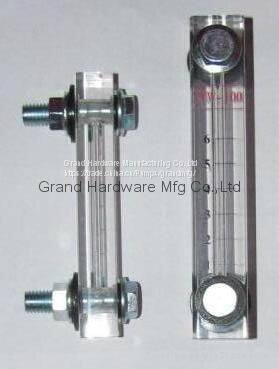

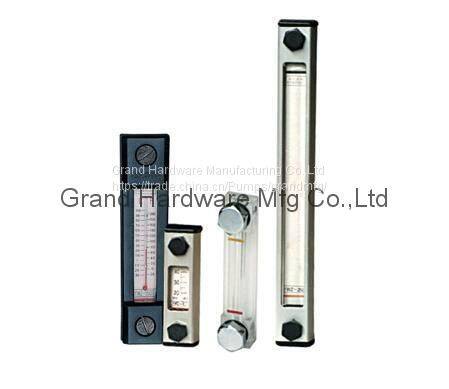

| item | Hydraulic oil level indicator |
| Housing | Aluminum alloy housing and inside thermoplastic (PC) |
| O-Ring and flat gaskets | NBR Rubber |
| Reflector | aluminum with printed white |
| Bolt | M10 Hexagon nut and washer in galvanized steel |
| Temperature resistant | : -20’C to 100 ‘C. / 0’F to 220 ‘F |
| Distance of two bolts | 50mm to 500mm |
| Usage | Thin-wall container, Radiator, Hydraulic reservoir and receivers. |
| item | plastic sight glasses |
| material | plastic |
| seal | NBR |
| Reflectors | Plastic PMMA |
| Resist Tempreature Range | : -30'C to 70'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | Metric and BSP(G thread) |
