Yilian Brand Non Woven Coating and Lamination Machine

FOB Price

US$ 76000 - 100000 / Set

1 Set(Min. Order)

Port NINBO
Payment TermsT/T L/C Cash
Delivery Detail45 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	YILIAN	Place of Origin	China
Model Number	SJFM1100-2000B	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas	Weight	15T
Dimension(LWH)	960086003600MM	Voltage	380V
Power	60-80KW	Application	Other, Apparel, Beverage, Chemical, Food, Medical, Textiles, package
Condition	New	Automatic Grade	Semi-Automatic
Driven Type	Electric	Packaging Material	Other, EXPORTING PACKING
Packaging Type	Other, EXPORTING PACKING

Product Description

SJFM 1100-2000B high speed Non woven coating lamination machine

Brief introduction:

Sjfm series environmental protectional extrusion lamination machine, set unwinding and rewinding, drying, surface treatment,extrusion, compounding, trimming, suction side as a whole;it features with web guiding, corona treatment, line speed, meter counting; automatic tension control, temperature control and other advanced technology. Running speed 100-150m/min.

Application: paper pe coating, woven PP sack lamination, non woven lamination and so on.

It is widely used in disposable paper cup,oil and water proof paper bag, fast food boxes, pp woven bag, non woven vertical bag, baby diaper packing bag, cement bag, ground film, roof radiant barrier product and so on.

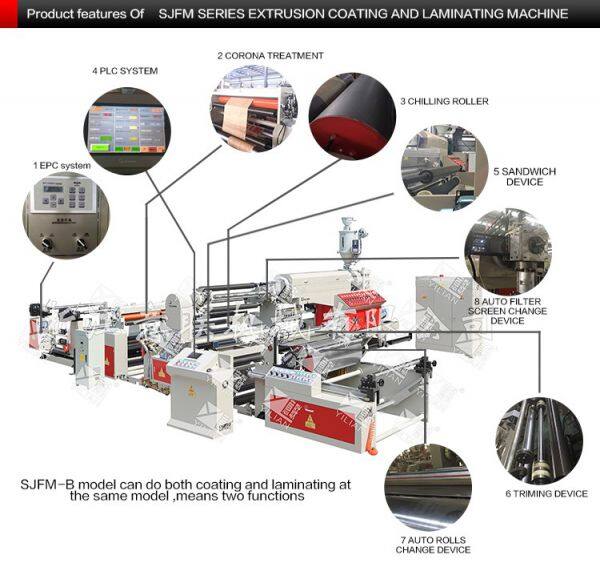

Features:

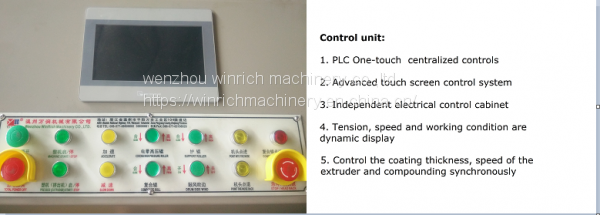

1.PLC man-machine interface centralized control, machine, electricity, gas, integrated design.

2 high efficient corona device

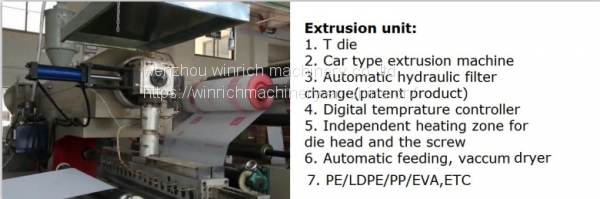

3. Easy and quick filter screen exchange

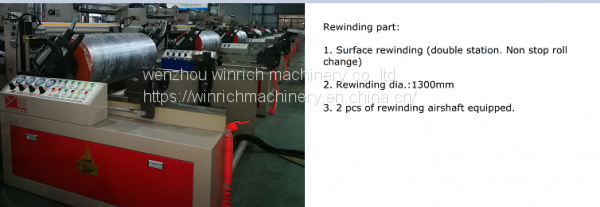

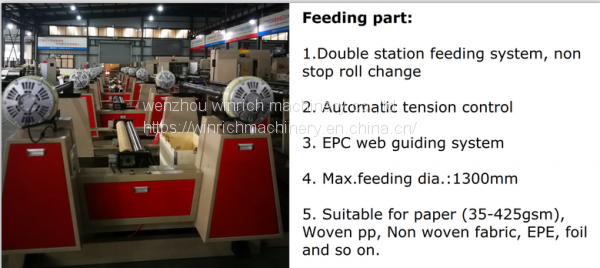

4.Double station unwinding and rewinding, automatic non stop roll exchange

Form of production:

Single-layer lamination / three layer compounding/ multilayer compounding (one-time seven layers available, increase the extrusion unit)

Technical parameters:

Model	SJFM-800	SJFM-1100	SJFM-1300	SJFM-1600	SJFM-1800
lenght of die lip	900mm	1200mm	1400mm	1800mm	2000mm
width of finished product	400-700mm	500-1000mm	600-1250mm	800-1500mm	900-1700mm
max,compounding speed	100-150m/min	100-150m/min	100-150m/min	100-150m/min	100-150m/min
thickness of shower film	0.01-0.1mm	0.01-0.1mm	0.01-0.1mm	0.01-0.1mm	0.01-0.1mm
L/D ratio for screw	Φ80mm×30	Φ95mm×30	Φ105mm×30	Φ120mm×32	Φ140mm×32
diameter for roll unwinding and rewinding	Φ1300mm	Φ1300mm	Φ1300mm	Φ1300mm	Φ1300mm
overall size	9600×8000×3200mm	9600×8300×3200mm	9600×8600×3200mm	9600×9000×3200mm	9600×9300×3200mm
power	60kw	70kw	80kw	100kw	130kw
compounding/glossy cool roll	Φ510mm	Φ510mm	Φ510mm	Φ510mm	Φ610mm
applicable for base material	PAPER/Aluminum foil/non woven fabric/BOPP/BOPET/BOPA/CPP/CPE)

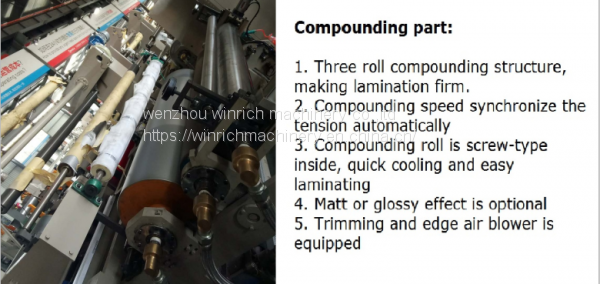

Details:
