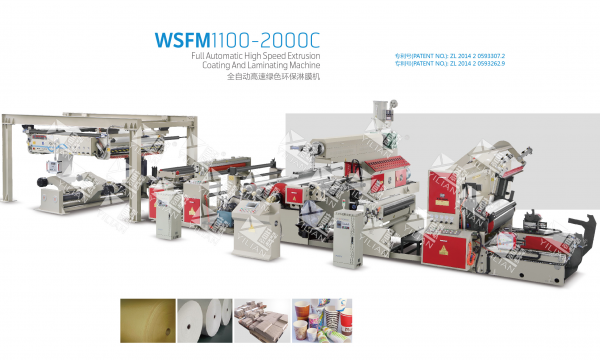

China Yilian Brand Auto Splicer High Speed PLA Extrusion Coating Machine
US$ 180000 - 300000
/ Set
1 Set(Min. Order)
- NINGBO
- T/T L/C Credit Card Other Cash
- 90 days
You May Like
-
China Supply SJFM-1300A High Speed Extrusion Paper pe Coating Machine
-
China Supply SJFM 1300B High Speed Nonwoven Fabric Extrusion Laminating Machine
-
China Supply WSFM C Type Automatic Environmental Protection Paper PE Coating Machine
-
Yilian Brand SJFM1100-2000A PE Film Extrusion Coating Machine
-
China Supply Automatic Nonwoven Fabric PP Film Extrusion Lamination Machine
-
Yilian Brand SJFM1100-2000B Non Woven Fabric Extrusion Coating Machine
Product Details
| Brand Name | YILIAN | Place of Origin | China | |
| Model Number | WSFM1100-2000 | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas | Weight | 29T | |
| Dimension(L*W*H) | 13100*9600*3600MM | Voltage | 380V | |
| Power | about 180Kw | Application | Other, Beverage, Food, Medical, PACKAGE | |
| Condition | New | Automatic Grade | Automatic | |
| Driven Type | Electric | Packaging Type | Other, EXPORT PACKING |
Product Description
Application:
For producing Single Side PLA / PE Coated Paper Cup Paper,Paper Bowl Paper,Instant Noddle Bowl Paper etc.
Main features:
1.PLC man-machine interface control, the design of mechanical electrical integration.
2.High precision and imported die head
3.High speed and efficient mixing equipment (Italy technology).
4.Automatic hydraulic filter screen exchange
5.Equipped with dry type composite system, with the function of dry composite machine
6.And can be matched with a single extruder, Twin Extruder, extruder, multilayer coextrusion
The main technical parameters:
| machinery specification | 1100/90mm,1300/100mm ,1500/105mm, 1800/110mm |
| speed of coating film | 150m/min,180m/min,200m/min |
| suitable coating resin film | LDPE,PP, EVA ,EAA,PLA |
| suitable base material | BOPP,BOPET,BOPA,CPP,CPE,PAPER,AL |
| width of coating film | 1100mm,1300mm,1500mm,1800mm |
| thickness of coating film | 0.012~0.1mm |
| inaccuracy thickness of coating film | ≦±5% |
| complex cooling roller | Φ500mm,Φ600mm,Φ700mm |
| screw specification | （L/D）Φ90：33,Φ100：33,Φ105:33；Φ110:33 |
| main unwinding diameter | Φ800-1500mm |
| diameter of auxiliary unwinding | Φ500mm |
| diameter of rewinding | Φ800-1700mm |
