Metric Solid Brass Oil Sight Glass Used for Compressor Pump Gearbox Roots Blower M20X1.5
- Ningbo port
- T/T
- 45 days
You May Like
-
Liquid Level Sight Glass for Forklift Truck Radiators NPT 1/2 Male Threaded
-
Male Metric Thread M12*1.5,M16*1.5,M18*1.5 Quartz Glass Tube Brass Sight Gauge for Horizontal Drum
-
Drum Sight Gauges for Checking Level of Chemicals or Oil
-
NPT Thread 1/2\",3/4\" Chemical Drum Sight Indicators With Quartz Glass Tube,male Thread Connection
-
Nickel Plated MNPT Carbon Steel Oil Sight Glass With Stainless Steel Reflector
-
NPT 1/2 Compressors Pump Oil Sight Glass Carbon Steel Oil Levels
Product Details
| Brand Name | grand-mfg | Place of Origin | China | |
| Model Number | grand-mfg |
Product Description

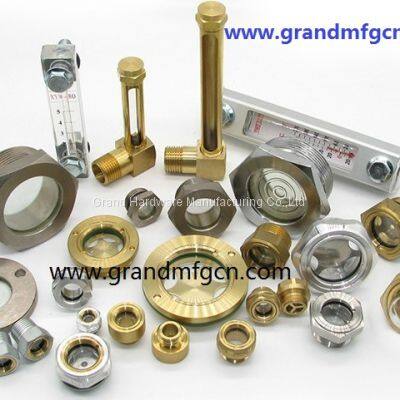

GRAND-MFG sight glasses & breather vent plugs
Any special demands please just contact us and send detailed requirements for solutions.
Grand-MFG sincerely to support every customer, hope our quality parts help with your fulture business soon!
Material Body: Brass
O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal
Glass Thickness: 2mm to 5 mm
Reflectors: Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 120'C
Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.
| item | brass sight glasses |
| material | brass |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |
| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
Any demands just contact us or vist our GRAND-MFG website to get details.Thank you.
