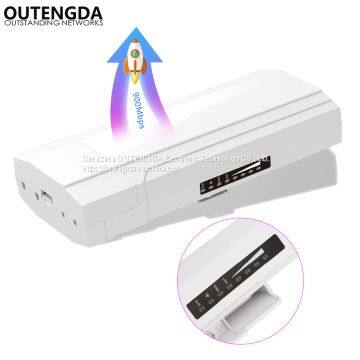

900Mbps 5G Outdoor CPE Router PTP 10KM Range Wi-fi Access Point WDS Wireless Wifi Bridge Extender Wifi Repeater For IP Camera

Main Features
■ Outdoor weatherproof protection design, Two Ethernet Ports
■ Qualcomm Chipset, 802.11ac/a/n Support
■ 128MB SDRAM + 16MB Flash Build-in for Higher Performance
■ Gateway / Repeater / AP /WISP Client/WDS/AP+WDS operation modes
■ S-WDS Mode, Advanced Software Technology, PTP/PTMP connection
■ 24V Passive PoE supports up to 70 meter (200 feet) deployment

■ 18dBi 5GHz directional MIMO panel antenna to build long distance Wi-Fi connection

■ Equipped LED display, show operation mode, channel, signal strength

Descriptions

OAP890 is a high power industrial 5G outdoor CPE with the next generation 802.11ac Wi-Fi standard, Qualcomm Chipset, combined 900Mbps high speed in 5G, equipped Gigabit WAN/LAN port, 3 times Ethernet data rate faster than other general cpe, make more than 60 end users access into it and enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.

900Mbps Data Rate & Gigabit WAN/LAN Ports

OAP890 features 802.11ac Wi-Fi and 2*2 MIMO technology, 900Mbps wireless speed. Equipped with Gigabit Ethernet port ensures high speed internet access and more end users access.

10KM PTP/PTMP Distance

Designed in two line Power Amplifier on PCB board, the power can be 500mW high power, 18dBi MIMO high gain panel antenna, greatly increase the wifi range to 10KM distance, then supply the stable wifi signal for users.

Power over Ethernet

OAP890 has integrated passive Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.

Multiple operation mode, Press WDS Switch button(F&S) to do PTP/PTMP Connection

OAP890 supports Gateway, WISP, Wireless AP, WiFi Repeater, WDS operation mode, it is widely used in WiFi Bridge Connection, WISP Connection and Wireless Security;

OAP890 with WDS Switch button, press it to do the PTP/PTMP connection, very easy, no need to access into GUI.

Access Controller System

With Access Control System under AP/WDS operation mode, easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore.

Specifications
