Home > Products > In wall AP > 1200Mbps in-wall Full Gigabit Embedded Wireless Panel router in wall access point with two lan RJ45 and RJ11 phone port for smart hotel

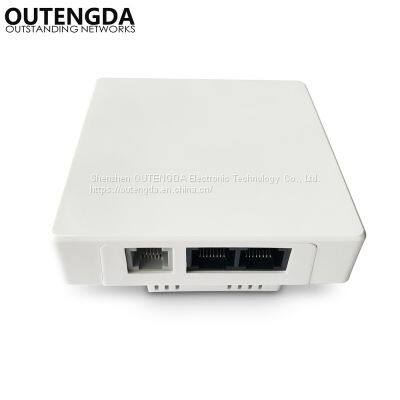

1200Mbps in-wall Full Gigabit Embedded Wireless Panel router in wall access point with two lan RJ45 and RJ11 phone port for smart hotel
- SHENZHEN
- T/T PayPal Other
- 7 days
You May Like
-
OUTENGDA 802.11AC 1200M 5G in wall wifi access point for smart home hotel wireless coverage 802.3af standard poe router AP
-
118*70mm US standard in Wall Wireless AP for Hotel Domitory Office Rooms USB Interface Access Point Socket WiFi Extender Router AP
-
802.11ax Wifi6 High-Power Ceiling Ap Enterprise Wireless Access Point For Smart Hospital Hotel Distributed Wifi Coverage Router
-
WIFI6 Ceiling Router High-power enterprise-class wireless wifi access point Dual-band wireless router POE Gigabit AP 802.AX
-
802.11AX WIFI6 1800M Enterprise Ceiling Router Access Point Gigabit high-power Hotel AP Office WiFi Coverage 802.3AF POE Router
-
802.11AX WIFI6 Outdoor wieless access point Dual band 2.4&5.8GHz outdoor POE router For farm outdoor IP67 waterproof AP Router
Product Details
| Brand Name | OEM | Place of Origin | China | |
| Model Number | MFAP630 | Type | Wireless | |
| Certification | CE | Function | Firewall | |
| Products Status | Stock | Application | Soho | |
| WAN Ports | 1 | LAN Ports | 2 |
Product Description
Pls click to enter the different model, thanks.
HARDWARE FEATURES | |||||
Model | MFAP630 | ||||
Chipset | QCA9563 + QCA9887 +QCA8334 | ||||
Flash | 16M | ||||
DDR | 128M | ||||
2.4G working frequency band | 2.4GHz – 2.484GHz | ||||
2.4G WIFI transmission protocol | 802.11b / g / n | ||||
5G working frequency band | 5.150GHz～5.850GHz | ||||
5G WIFI transmission protocol | 802.11a / n / ac | ||||
SSID hiding | stand by | ||||
Maximum rate | 1200Mbps | ||||
Max Access Users | 100+ | ||||
RF Power (2.4GHz) | 802.11b | 11M | 16±2dBm | 1M | 18±2dBm |
802.11g | 54M | 15±2dBm | 6M | 17±2dBm | |
802.11n HT20 | MCS7 | 14±2dBm | MCS0 | 16±2dBm | |
802.11n HT40 | MCS7 | 13±2dBm | MCS0 | 15±2dBm | |
RF Power (5GHz) | 802.11a | 54M | 13±2dBm | 6M | 15±2dBm |
802.11n HT20 | MCS7 | 12±2dBm | MCS0 | 14±2dBm | |
802.11n HT40 | MCS7 | 11±2dBm | MCS0 | 13±2dBm | |
802.11ac HT80 | MCS9 | 10±2dBm | MCS0 | 12±2dBm | |
Receive Sensitivity (2.4GHz) | 802.11b | 11M | -85dBm | 1M | -94dBm |
802.11g | 54M | -72dBm | 6M | -90dBm | |
802.11n HT20 | MCS7 | -70dBm | MCS0 | -88dBm | |
802.11n HT40 | MCS7 | -68dBm | MCS0 | -86dBm | |
Receive Sensitivity (5GHz) | 802.11a | 54M | -74dBm | 6M | -90dBm |
802.11n HT20 | MCS7 | -72dBm | MCS0 | -88dBm | |
802.11n HT40 | MCS7 | -68dBm | MCS0 | -86dBm | |
802.11ac HT80 | MCS9 | -58dBm | MCS0 | -80dBm | |
2.4G EVM | 802.11b_11M: ≤-10dB ；802.11g_54M: ≤-25 dB ；802.11n_MCS7: ≤-28 dB | ||||
5G EVM | 802.11a_54M: ≤-25 dB ；802.11n_MCS7: ≤-28 dB ；802.11ac_MCS9: ≤-32 dB | ||||
ppm | ±20ppm | ||||
LAN | 2*10/100/1000M Adaptive LAN port | ||||
WAN | 1*10/100/1000M Adaptive WAN port | ||||
RJ11 | 1*RJ11 port | ||||
Power Supply | 48V （802.3af POE） | ||||
LED | WAN LED ×1；,LAN LED×2；SYS LED*1 | ||||
Maxi power consumption | <8W | ||||
Dimensions (W X D X H) | 86MM × 86MM × 35MM | ||||
Environment |
Operating Temperature: -20~55 ℃ Extreme Temperature: -30~55 ℃ Storage Temperature: -40~70 ℃ | ||||
