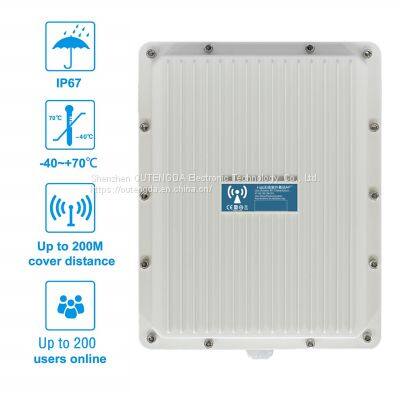

11ax WIFI6 Outdoor Access Point High-Power Gigabit POE Smart farm long-distance high concurrency Router

Chipset

IPQ6000+QCA8075+QCN5022+QCN5052

Standard

802.11ax/ac/b/g/n

Flash

SPI NOR 8MB (1.8v)+ NAND 128MB

DDR3L

512MB

2.4G Frequency

2.4GHz - 2.484GHz

2.4G Wi-Fi standard

802.11b/g/n/ax

5.8G Frequency

5150~5850MHz

5.8G Wi-Fi Standard

802.11 a/n/ac/ax

Interface

1 * 10/100 /1000 RJ45 WAN Port

1 * Reset button,press 10 seconds to revert to default setting

Antenna

N type antenna connector

Data Rate

1800Mbps

End Users

160+

2.4G RF Power

≤ 23dBm

5.8G RF Power

≤ 23dBm

2.4G Receive
Sensitivity

802.11b

11M

-90dBm

1M

-98dBm

802.11g

54M

-77dBm

6M

-93dBm

802.11n HT20

MCS7

-72dBm

MCS0

-92dBm

802.11n HT40

MCS7

-71dBm

MCS0

-90dBm

802.11ax HT20

MCS11

-63dBm

MCS0

-93dBm

802.11ax HT40

MCS11

-60dBm

MCS0

-91dBm

5.8G Receive
Sensitivity

802.11a

54M

-77dBm

6M

-95dBm

802.11n HT20

MCS7

-75dBm

MCS0

-93dBm

802.11n HT40

MCS7

-72dBm

MCS0

-91dBm

802.11ac HT20

MCS7

-74dBm

MCS0

-93dBm

802.11ac HT40

MCS7

-72dBm

MCS0

-91dBm

802.11ac HT80

MCS9

-62dBm

MCS0

-88dBm

802.11ax HT20

MCS11

-63dBm

MCS0

-93dBm

802.11ax HT40

MCS11

-60dBm

MCS0

-90dBm

802.11ax HT80

MCS11

-56dBm

MCS0

-87dBm

2.4G EVM

802.11b: ≤-10 dB;

802.11g: ≤-25 dB;

802.11n: ≤-28dB ;
802.11ac:≤-32 dB;

802.11ax: ≤-35 dB

5G EVM

802.11a: ≤-25 dB;

802.11n: ≤-28 dB;

802.11ac: ≤-32 dB;

802.11ax: ≤-35 dB

PPM

±20ppm

PoE

48V (IEEE 802.3at)

LED light

Sys, WAN, LAN

Power Consumption

≤ 24W

Size

295*231*80MM

Weight

3.5KG

Others:

Environment

Operating
Temperature: -20~45 ℃
Limit working temperature: -30~70 ℃
Storage Temperature: 0~70 ℃
Humidity: 5%~95% non-condensing

Impedance

50 Ohms nominal

Gain

6dBi 8dBi 12dBi 14dBi 17dBi (Optional)

Radiation

Omni or Orientation

Polarization

Vertical

Connector

N-J

MM Dimension

￠20*350mm
