4 Axis Vertical Milling Machine VMC460L VMC Machine for Sale

Jinan Hankui international trade co., ltd.

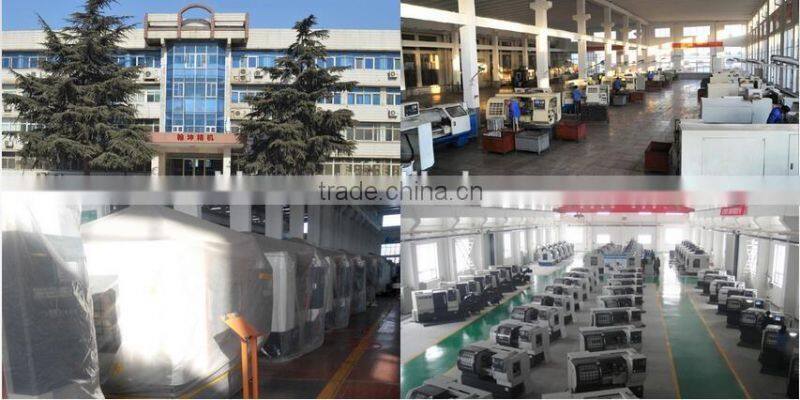

The plant area is about 10,000 square meters. It was set up by the former Jinan Machine tools factory employees. Some technicians have more than 20 years experience of machine tool design and assembly. We cooperated with famous parts supplier such as Fanuc, Syntec, Mitsubishi, SIEMENS.We have mastered the advanced machine tool technology and were dedicating to service customers domestic and abroad and welcomed deeply.

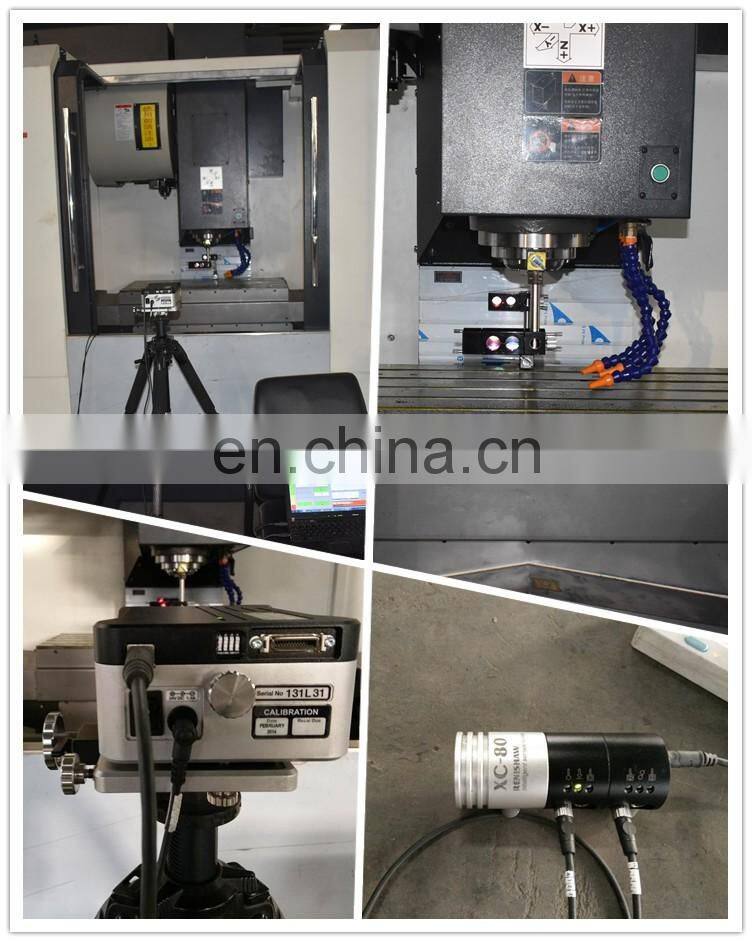

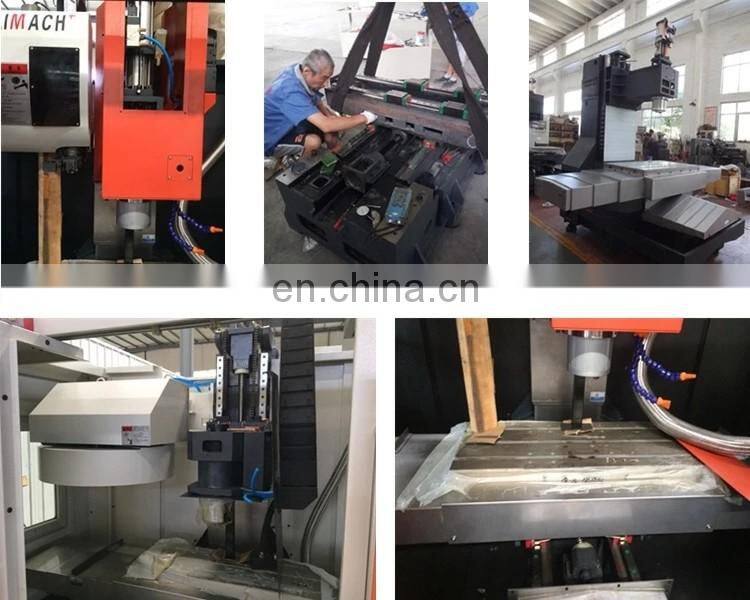

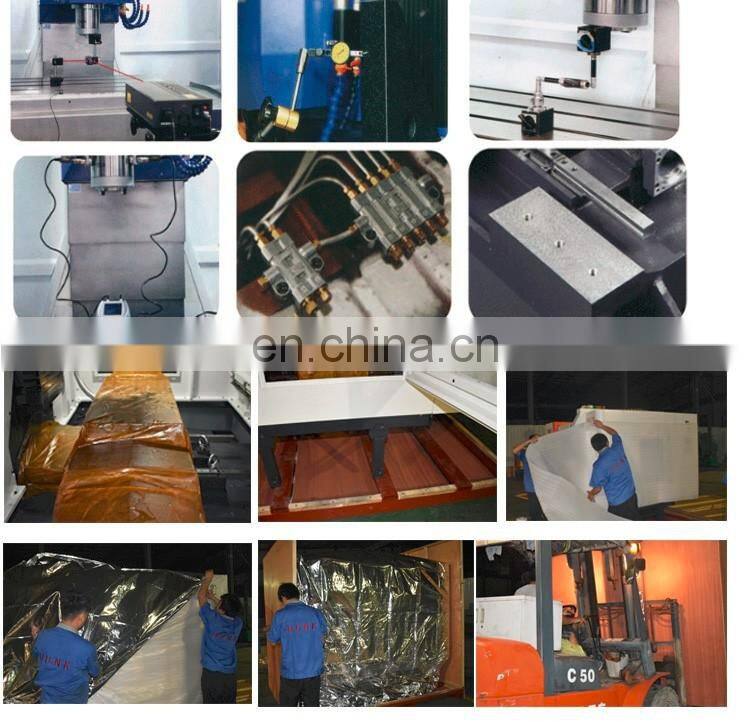

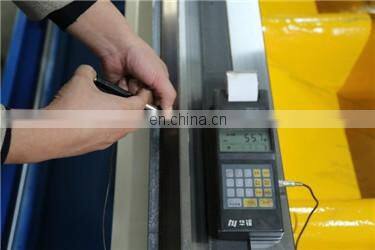

Quality control

Customer witness

Now our products have a large market share and have a high popularity in domestic. Sales and services network have been established in many provinces and cities.Our products have been sold to America, Norway, Argentina, Mexico, Russia, Turkey, Pakistan, Slovakia, Indonisia, Serbia, Syria, India and many other more than 30 countries with high reputation.

Exibitions

We actively participate exihitions like Beijing, Shanghai, Qingdao, Guangzhou, Jinan and so on.

We also particated the exihitions in Indonisia, happily communicated with our old clients and  also met many new clients.

Product catagory

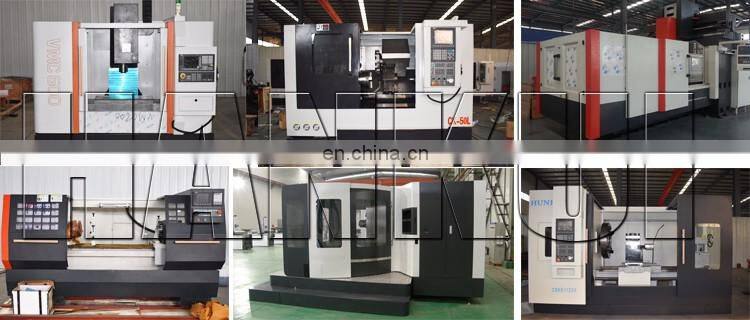

The main products are slant bed cnc lathe/ flat bed cnc lathe/ cnc vertical machining center/ cnc horizontal machining center/cnc gantry machining center.

Our culture

Our manager hold a series of activities monthly make us healty and happy. Also cultivate our motivation and teamwork spirit, make us learn to cooperate and trust on each other. We work and improve toghther with our company.

After Sales service:

1.24 hours on Internet and Telephone, free instruction and problem solving.
2. Free training how to use.
3. User-friendly English manual or operating video for machine using and maintaining.

4. on-the-spot training and installation can be met if required.

In this picture, our Mexico client make a farewell party for our technician after he finish traning for the staff. They are very satisfied with our machine and our technician. They orderred again and invite our technician visit them again.

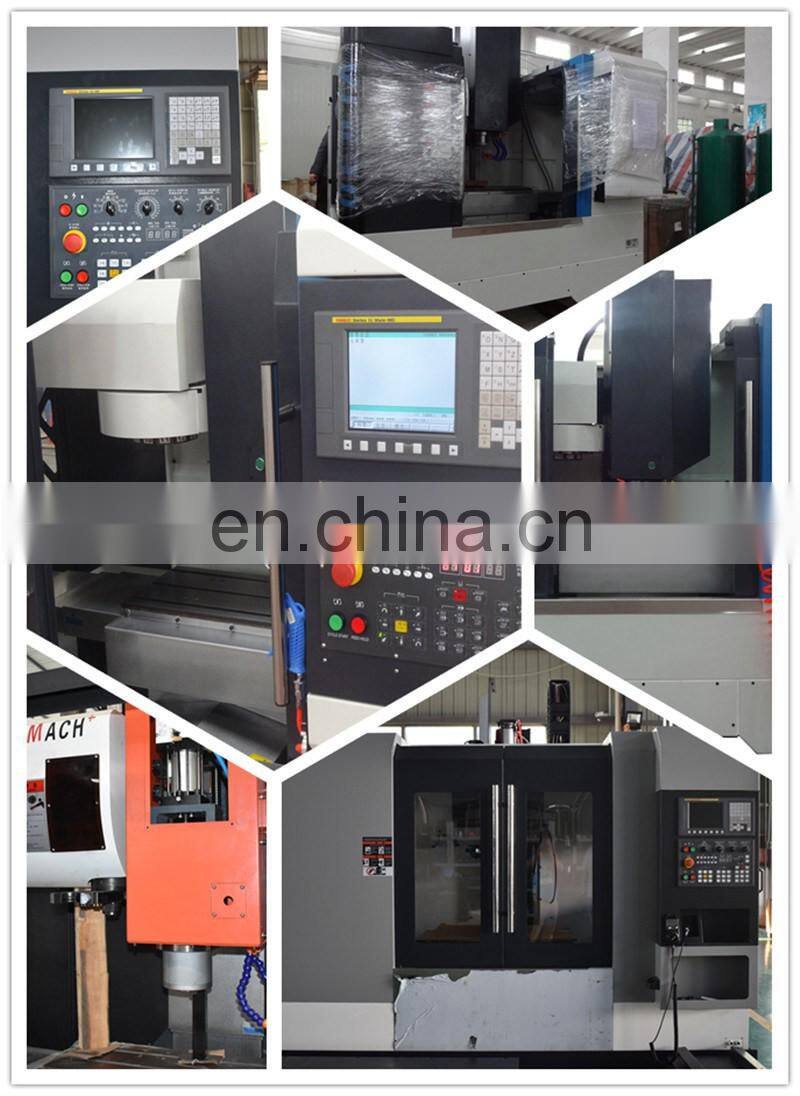

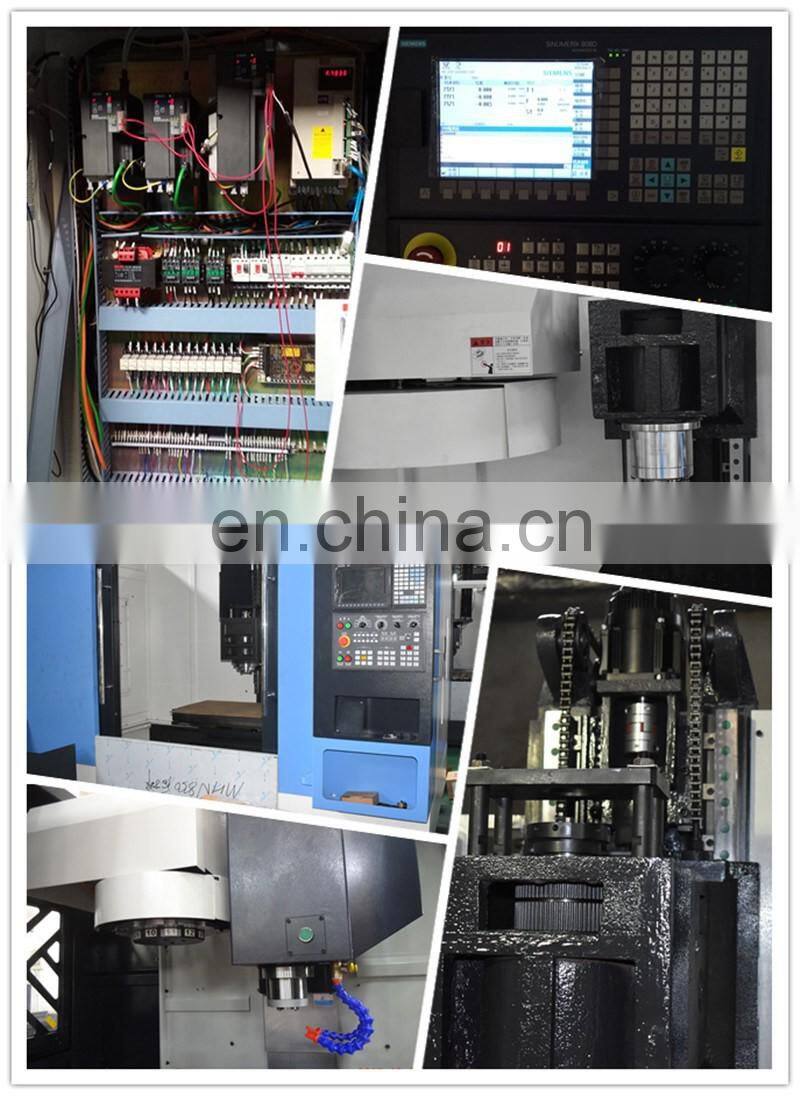

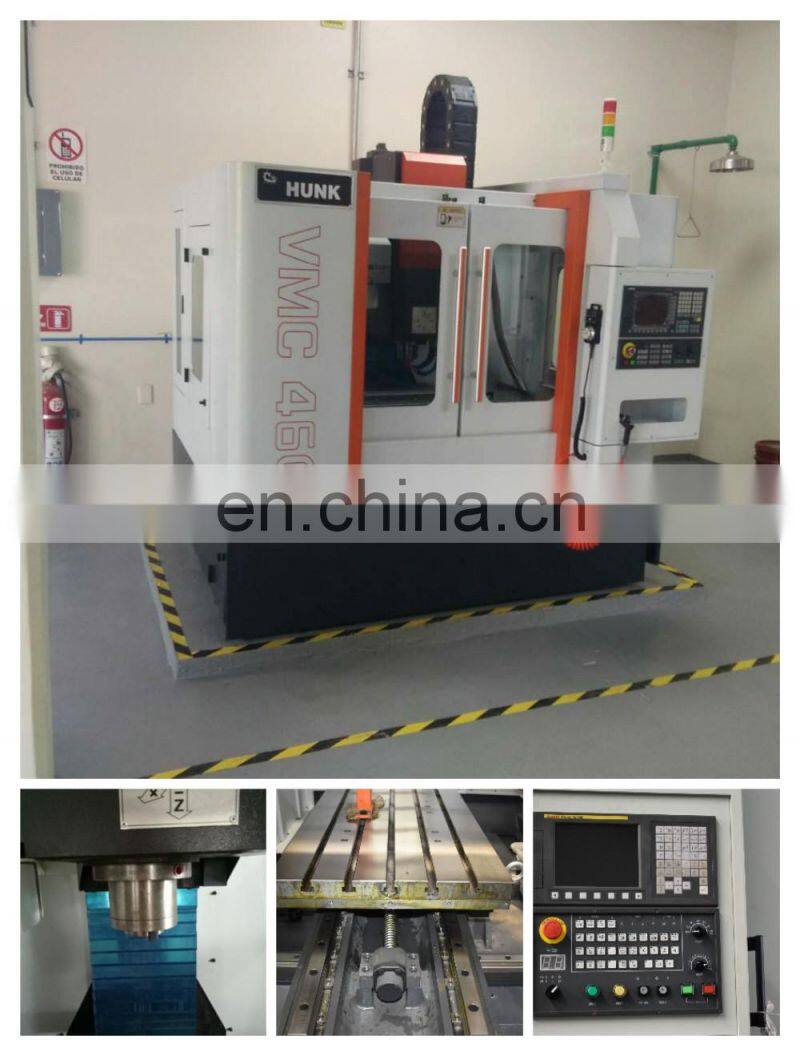

It is of semi closed loop vertical machining center with X, Y, Z axis controlled by servo motor directly.

The three axis are all the steel ball rolling linear guide rail which is large load capacity, wide span and high precision.

It can finish clamping one-time of various dishes, plates, shell, cam, mold and other complex parts. It can complete the drilling, milling, boring, reaming, expansion, and other rigid tapping process.

Standard configuration:

(1) 16(standard) tools, Drum-type tool magazine,

(2) Nozzle coolant, Belt Driven,

(3) HIWIN (Taiwan) ballscrew,

(4) PMI (Taiwan) linear guideway,

(5) ROYAL/POSA (Taiwan) spindle,

(6) Schneider( France) electric parts,

(7) Heat exchanger

Optional:

(1) 16 tools, Umbrella-type tool magazine

(2) Spindle speed 12000r (with oil cooler),spindle conneted to the drive motor directly

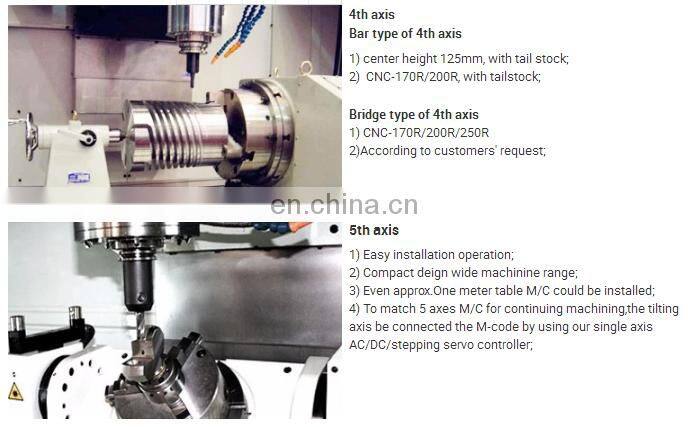

(3) 4th axis ( bar type, made in China), center height 110mm/125mm, with tailstock

(4) 4th axis (bar type, GAS Taiwan) CNC-120R/170R/200R, with tailstock

(6) 4th axis (bridge type, GSA Taiwan) CNC-120R/170R/200R

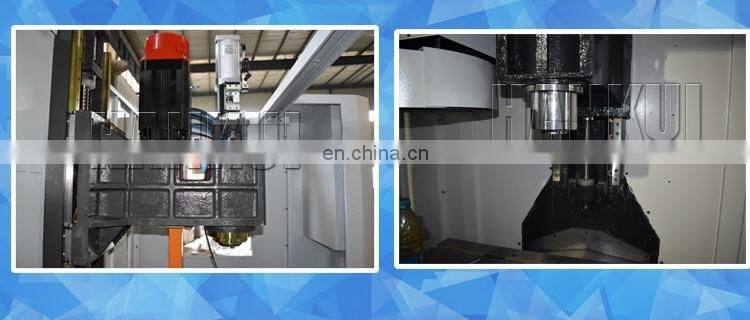

⑴ Base, sliding block, working bench, vertical column , spindle box and other main basic parts adopt HT250 cast iron; base is box type structure with symmetric compact and reasonable structure.

⑵ The guide rail of X, Z, Y axis are use Taiwan HIWIN company's heavy load linear ball guide, has the advantages of fast speed, Eliminate intermittent creep, high rigidity, low friction, low noise , low temperature rise and so on.

⑶ Z axis matched with counterweight to keep balance, which ensure the spindle box running smoothly and stable; Z axis drive motor matched with electric brake device

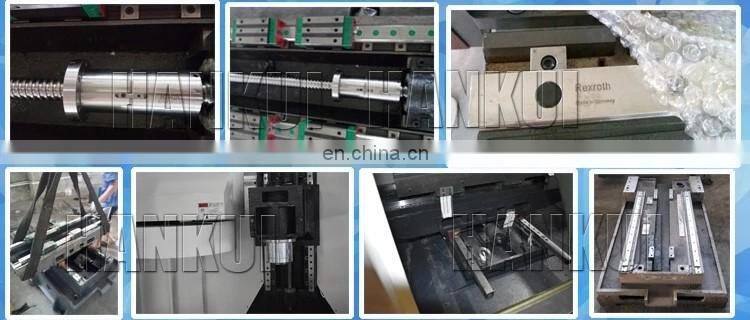

⑷ The feed of X, Y, Z direction adopts the inner loop preloading large-lead ballscrew with double nut so it is of high feed speed. The drive motor connect with screw straightly via elastic coupling.

⑸ Spindle is of central blowing structure. When the spindle releases tool , the high pressure gas is used to clean the main shaft, so ensure the precision and service life of the tool .

⑹ The machine tool external protection of machine tool uses the full protection structure. It is convenient operation, safe and reliable, and nice shape.
