5 Axis Vertical Cnc Machine Center Multitasking Machining Center

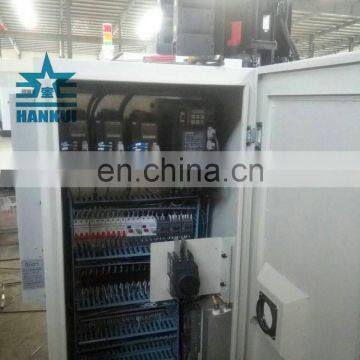

The CNC control system

SIEMENS  Mitsubishi  Fanuc  Syntec

The system has a perfect and reliable interlocking, safety protection and fault diagnosis alarm functions etc.

 Cooling system

Tank volume : 100L

Cooling pump power : 180W

Cooling pump flow : 92L/min

Rated head : 10m

Taiwan BT30-10T Disc cutter

The machine matched with 12 hats (standard) or 16 disc knife library (optional) supplied by Taiwan professional manufacturers.

polished by resin sand and aging treatment

Base, sliding block, working bench, vertical column , spindle box and other main basic parts adopt HT250 cast iron.

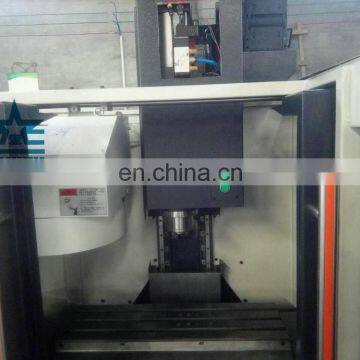

The spindle

The spindle unit of the machine tool is high speed, high accuracy, high rigidity, with large load carrying capacity of axial and radial, and the maximum speed of up to 8000rpm

      Guide rail

The guide rail of X, Z, Y axis are use Taiwan HIWIN company's heavy load linear ball guide, has the advantages of fast speed.

     ballscrew

The feed of X, Y, Z direction adopts the inner loop preloading large-lead ballscrew with double nut so it is of high feed speed.

It can complete the drilling, milling, boring, reaming, expansion, and other rigid tapping process. So it is suitable for many varieties, medium and small batch production. It can finish the processing of complex, high precision parts. It can be matched the four rotary axis , in order to meet the requirements of special parts.

The main products are horizontal / vertical/ gantry machining center, flat / slant bed CNC tuning lathe, CNC vertical turning lathe etc. With superior equipment, advanced technology, detection devices, the imported parts from Taiwan, Japan, Germany etc., we can manufacture the high quality machine tools. And we also take over the metal products and spare parts machining in good quality.

We have passed the ISO9001:2008 international quality management system authentication. "Honest and trust, Customer ahead, pursuit of excellent", we devoted to provide high quality performance CNC products and metal products to you. Welcome to visit our factory.
