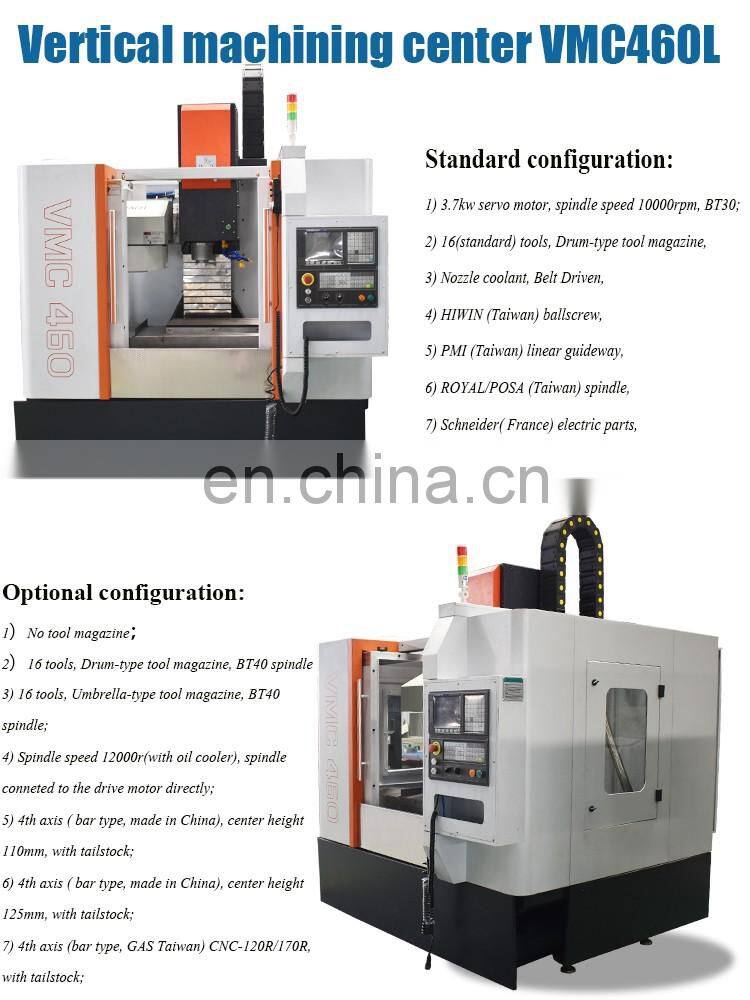

VMC460L Mini Cnc Milling Machine Center With Servo Spindle Motor

VMC460L Mini Cnc Milling Machine Center with Servo Spindle Motor

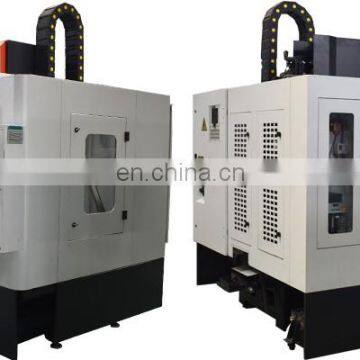

It is vertical machining center with X, Y, Z axis controlled by servo motor directly. The three axis are all the steel ball rolling linear guide rail which is large load capacity, wide span and high precision. XY axis is 35mm overloading and Z axis is 45mm overloading .Compact and reasonable structure and dimensions. Spindle is driven by servo motor through synchronous belt.

It can finish clamping one-time of various dishes, plates, shell, cam, mold and other complex parts. It can complete the drilling, milling, boring, reaming, expansion, and other rigid tapping process . so it is suitable for many varieties, medium and small batch production. It can finish the processing of complex, high precision parts . It can be matched the four rotary shaft , in order to meet the requirements of special parts.

Main Compenents

Resin sand casting
Spindle (Taiwan)
Ball screw (Taiwan)
Pressurizing cylinder (Taiwan)
Linear slide ways (Taiwan)
Bearing (NSK)
The electric skidding system (lubrication pump)
The spindle synchronous belt and wheel
Guide way pair treated with quenching and grinding

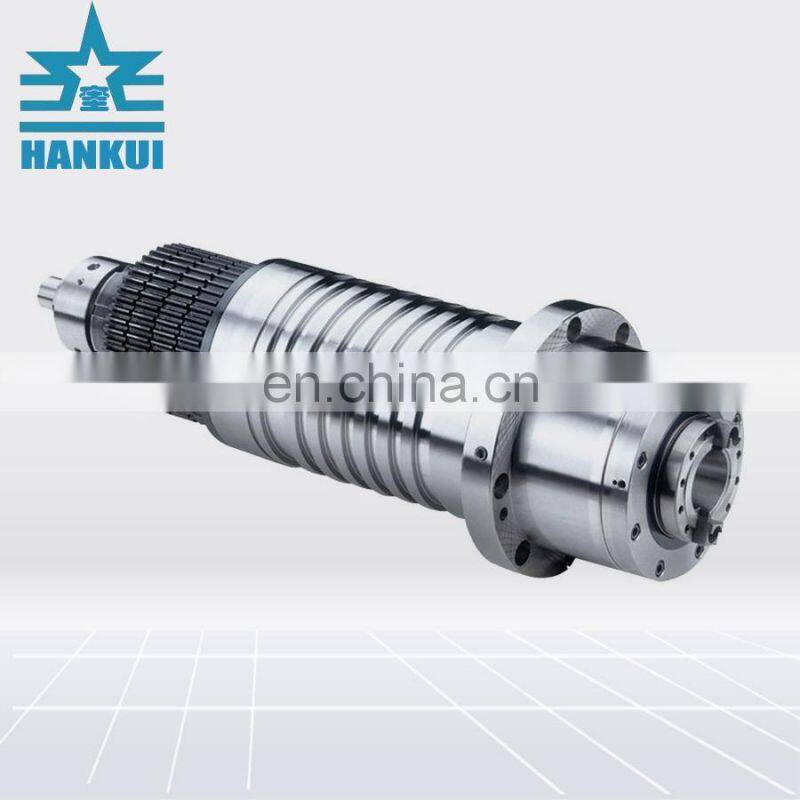

Taiwan Spindle

Name: Spindle

Brand: Royal/Posa

Original: Taiwan

Taiwan famous brand of main spindle, Royal or Posa for your cholice.

Cnc Controller System

Name: Cnc Controller System
Standard Brand:SIEMENS
Optional brand: Fanuc, Mitsubishi, Syntec, KND, GSK

International famous brand of cnc controller system, reliable and long service life.

Ball Screw & Linear Guide Rail

Name: Ball Screw & Linear Guide Rail
Brand: HIWIN & PMI
Original: Taiwan

International famous brand of ball screw and linear guideway, reliable and long service life.

Tool Magazine

Name: Tool Magazine
Original: Taiwan

International famous brand of ball screw and linear guideway, reliable and long service life.

  The main products are horizontal / vertical/ gantry machining center, flat / slant bed CNC tuning lathe, CNC vertical turning lathe etc. With superior equipment, advanced technology, detection devices, the imported parts from Taiwan, Japan, Germany etc., we can manufacture the high quality machine tools. And we also take over the metal products and spare parts machining in good quality.
