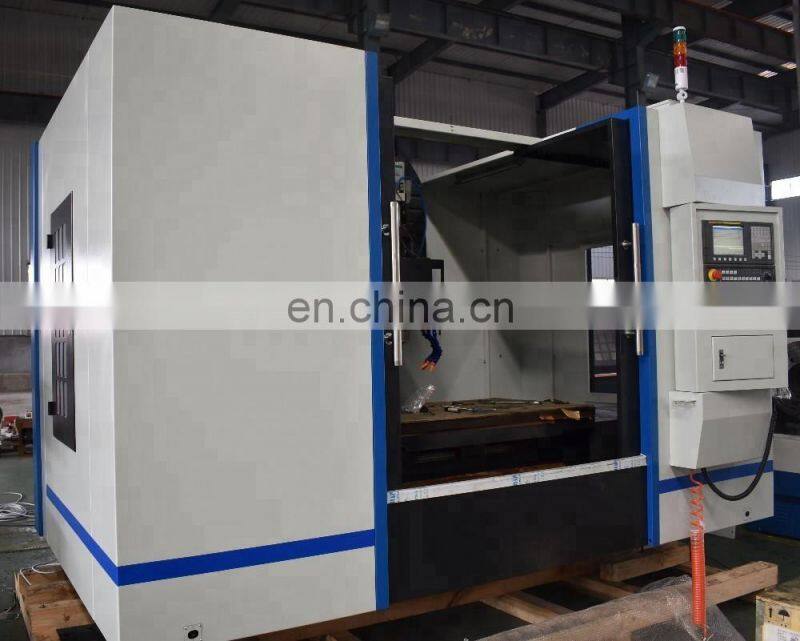

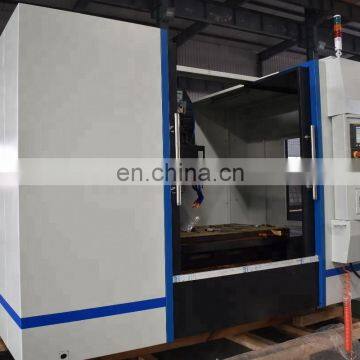

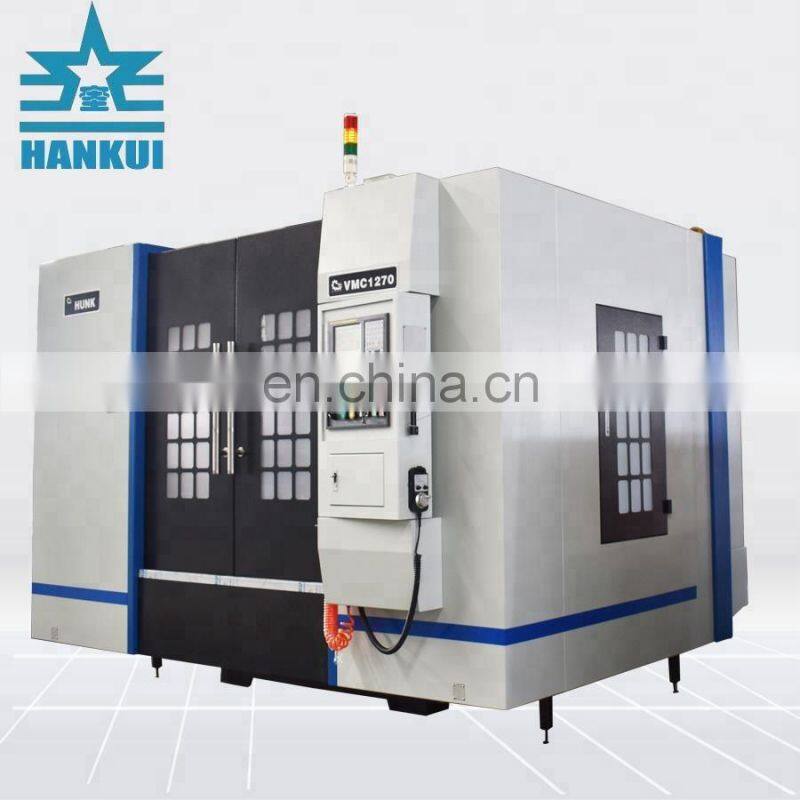

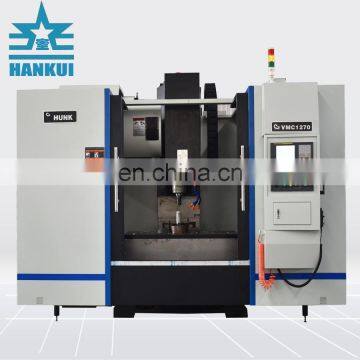

VMC1270L 5 Axis Cnc Controller Milling Vmc Machine

It can complete the drilling, milling, boring, reaming, expansion, and other rigid tapping process. So it is suitable for many varieties, medium and small batch production. It can finish the processing of complex, high precision parts. It can be matched the four rotary axis , in order to meet the requirements of special parts.

1)Base, sliding block, working bench, vertical column , spindle box and other main basic parts adopt HT250 cast iron; base is box type structure with symmetric compact and reasonable structure which ensures the basic parts of the high rigidity and bending resistance performance; the column is of A shape bridge span, together with bed inside grid reinforced, effectively ensure the rigidity and accuracy of the Z axis strong cutting force.

2)The guide rail of X, Z, Y axis are plastic rectangular guide, has the advantages of fast speed, Eliminate intermittent creep, high rigidity, low friction, low noise , low temperature rise and so on. Using automatic forced lubrication, it can improve the accuracy of machine tools.

4)The feed of X, Y, Z direction adopts the inner loop preloading large-lead ballscrew with double nut so it is of high feed speed. The drive motor connect with screw straightly via elastic coupling. The feed servo motor passes power to the high precision ball screw directly . It is no gap, and it ensures the accuracy of positioning and synchronization for the lathe

The main products are horizontal / vertical/ gantry machining center, flat / slant bed CNC tuning lathe, CNC vertical turning lathe etc. With superior equipment, advanced technology, detection devices, the imported parts from Taiwan, Japan, Germany etc., we can manufacture the high quality machine tools. And we also take over the metal products and spare parts machining in good quality.

We have passed the ISO9001:2008 international quality management system authentication. "Honest and trust, Customer ahead, pursuit of excellent", we devoted to provide high quality performance CNC products and metal products to you. Welcome to visit our factory.
