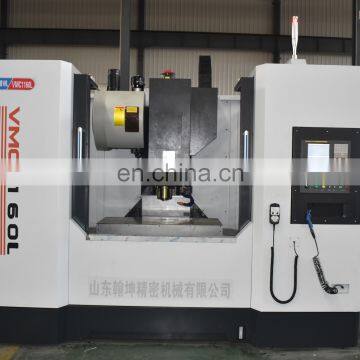

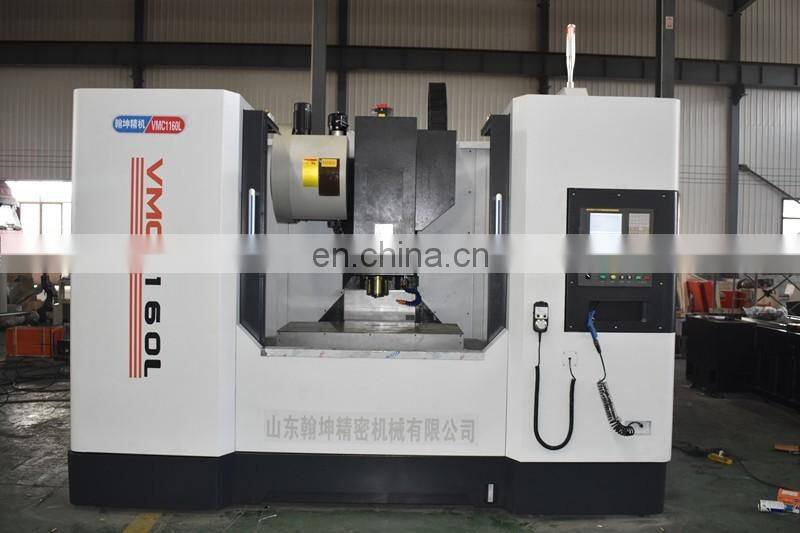

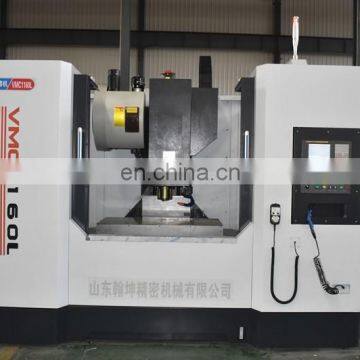

VMC1160L Hobby Cnc Vmc Grinding Milling Machine 5 Axis

The CNC control system

SIEMENS  Mitsubishi  Fanuc  Syntec

The system has a perfect and reliable interlocking, safety protection and fault diagnosis alarm functions etc. It equipped with RS232 communication interface for computer controlling and storage to realize DNC machining (There will be differences between different systems)

 Cooling system

Tank volume : 100L

Cooling pump power : 180W

Cooling pump flow : 92L/min

Rated head : 10m

Taiwan BT30-10T Disc cutter

The machine matched with 12 hats (standard) or 16 disc knife library (optional) supplied by Taiwan professional manufacturers.  matched with damping structure, it can reduce the impact when move to ensure the service life of the tools;

polished by resin sand and aging treatment

Base, sliding block, working bench, vertical column , spindle box and other main basic parts adopt HT250 cast iron;

the basic parts are polished by resin sand and aging treatment, so it ensure machine's long-term stability when working.

The spindle

The spindle unit of the machine tool is high speed, high accuracy, high rigidity, with large load carrying capacity of axial and radial, and the maximum speed of up to 8000rpm

      Guide rail

The guide rail of X, Z, Y axis are use Taiwan HIWIN company's heavy load linear ball guide, has the advantages of fast speed, Eliminate intermittent creep, high rigidity, low friction, low noise , low temperature rise and so on. Using automatic forced lubrication, it can improve the accuracy of machine tools.

     ballscrew

The feed of X, Y, Z direction adopts the inner loop preloading large-lead ballscrew with double nut so it is of high feed speed. The drive motor connect with screw straightly via elastic coupling. The feed servo motor passes power to the high precision ball screw directly . It is no gap, and it ensures the accuracy of positioning and synchronization for the lathe

Shandong Hunk precision machinery Co., Ltd. is a CNC machine tools company, located in the beautiful capitcal Jinan city.Our company is specializing in the production of CNC machine tool, and we has passed the ISO9000 certification and the right of import and export. By the August 2014, our company has owned 10 patent technologies, including the appearance, design, the utility model of machine and so on. And our company is a provincial high-tech enterprises.

Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in orderto keep your business running.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A: T/T, L/C,West Union.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q: Once a machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
