Vertical Glass Grinding Machine / Glass Grinding Machine

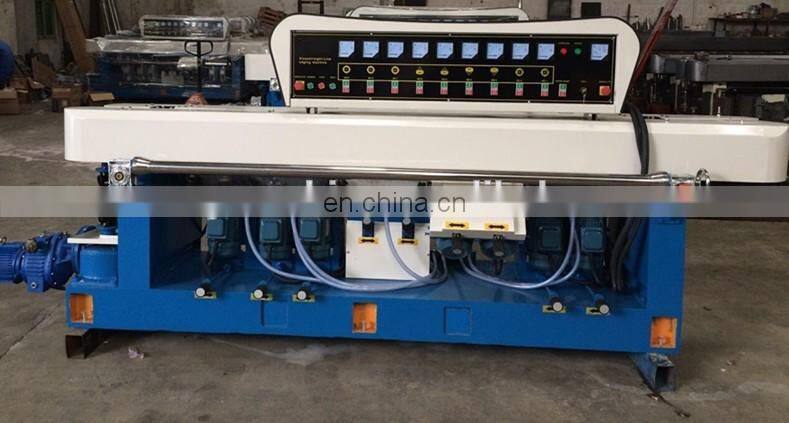

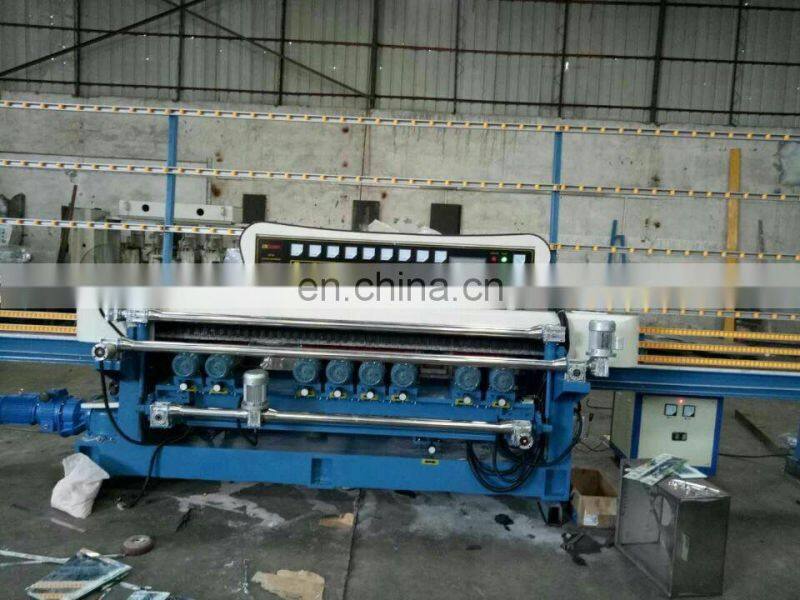

SZM9325 Straight-line Glass Edging Machine:

9 head glass grinding machine can process straight line and 45°edge. Rough grinding, fine grinding, polishing and chamfering can be completed in one process. It adopts stepless speed change which effects wider adjust range and stable speed alteration. Feeding and working speed can be adjusted at random. Front rail can be adjusted to fit varied thickness of processed glass. The machine has stable structure, precise smooth transmission system, advanced configuration control system and super size processing capacity, essential for processing glass for home furniture and architecture.

1 Machine Size :6800mm×1000mm×2350mm

2 Working Table Height  750mm

3. Machine Weight :3000kg

4. Power :19kw

    Voltage: 380v 60hz 3p/220v 60hz 2p

5. Feeding Speed :1.6m~4m/min

6. Processed Glass

Max.:Grinding Quantum of straight-line  3mm

Max.:Grinding Quantum of Chamfer  2.5mm

Angle :45°

Max.:Glass Size:3000×3000mm

Min.:Glass Size::80×80mm

Glass Thickness :3~25mm

7. Grinding Heads :9pcs,used for straight-line, rough grinding, fine grinding, refine grinding, polishing, rough grinding for chamfer, fine grinding for chamfer.

Contact information:

Company Name:JINAN SUNNY MACHINERY CO.,LTD.

ADD.:ZONE 2,YAOSHAN INDUSTRIAL PARK,TIANQIAO AREA,JINAN,SHANDONG,CHINA

CONTACT PERSON:MISS AWEN

 tel./fax:86-0531-66683798

mob:86-15063343341[whatsapp]
