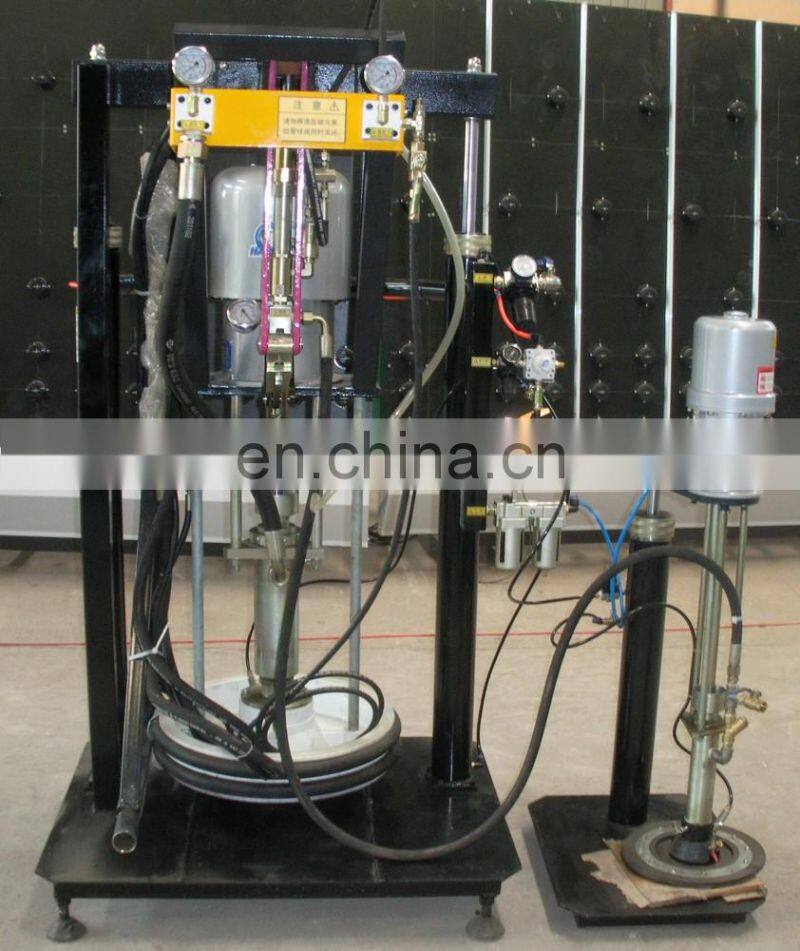

Two Component Glue Coating Machine ST03 Insulating Glass Two Component Silicone Coating Machine

Two component glue coating machine  ST03 Insulating glass silicon coating machine

1.Technique parameter:

Mixing ration proportion of mixture                    6:1-14:1

Raw material barrel                                              55galon(200L)

Solidification pharmaceutical barrel                   5galon(20L)

Max.air-consumption volume                              0.5m³/min

Max. squeeze pressure                                        20Mpa

Air source pressure                                              0.5-0.8Mpa

 2.Functions and Features:

1. It is composed of raw material pump, solidification pharmaceutical pump, proportional pump, sealant-mixture system, hydraulic pressure system, electronic system and so on.

2. Raw material pump, solidification pharmaceutical pump and proportional pump adopt the special high-pressure filling pump and the material can be supported equivalently in two-way. The raw material pump is compelled by the hydraulic pressure system while the solidification pharmaceutical pump is compelled by the pneumatic motor.

3. There are high-pressure valves in the underpart entrance of solidification pharmaceutical filter and material-feeding place of the mixing device and one-way valve is set in the nixing device so as to prevent two-components from fleeing each other. Silicone Extruder Machines, Silicone Extruder Machinery, Silicone Extruder Equipment, Silicone Extruder Equipments, Two Component Sealant Spreading Machine.

4.Rising and falling system is controlled by hand valve and the proportion of the two-components can be changed by adjusting the slipper in the swinging pole. Tightening the nut once the demanding scale is reached.

Remarks:

1. Pkg: Each PC In Wooden Cases

4.  Delivery Time: During 20 Days After We Receive Your First Payment

5.  Payment: Telex Transfer (T/T), 30% Be Paid After Confirming The Order and the rest 70% is effected before the shipment

Contact Person: Ms. Lucy

Whatsapp or Mobilephone: 0086 151 6904 2082

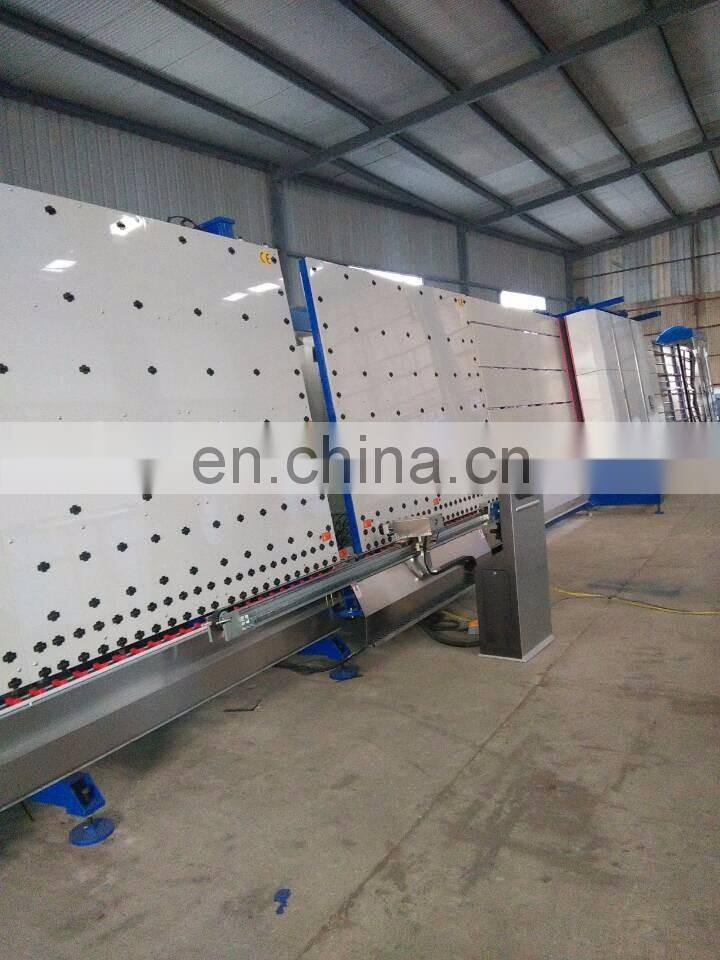

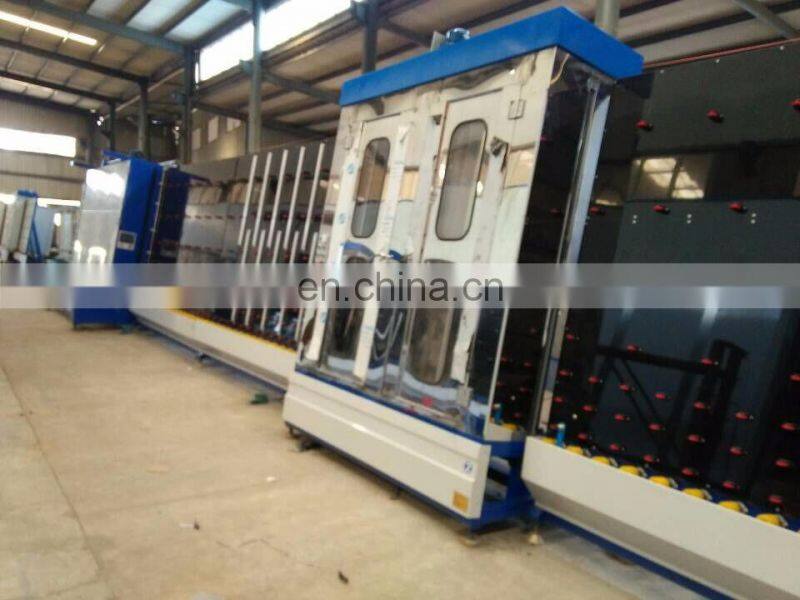

Others insulating glass machines for reference, thanks.
