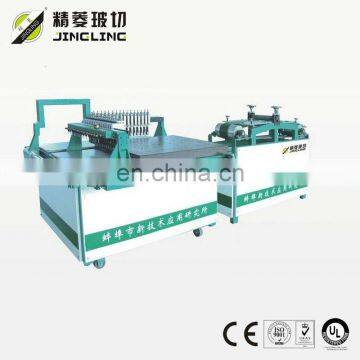

Glass breaking machine

JQZ-100 Glass Breaking Machine is a continuously glass breaking device for mini-size rectangle and squareness glass ,especially suitable for glasses such as glass mosaic artwork, illumination etc. Besides better quality it also is faster than manual operation 50~60 times.

1. Size :10*10~50*50
2. Thickness:2~6mm(adjustable)
3. Outline dimension: L*W*H 1300*550*1100mm
4. Weight :150kg
5. operation method

Adjust the distance between 2 iron plates under transmission belt to less than the width of 2 specifications size, and the distance of middle of press wheel and the edge of iron plate is 1 specification size.

The transmission belt will round clockwise after push the push the power on button. Rotate the hand wheel to regulate two bowls space( less than the glass thickness 0.1~0.5mm, the space is according to glass thickness), put the cut glass sheet on the transmission belt with tooth mark above and move forward for trial breaking. Adjust the space between bowls, when the cutting article is satisfactory then the mass production is beginning.

Equipped whit speed adjustable and prograde & reverse electrical machine ,customers can adjust breaking speed according to the thickness of glass .It also can round reversely if necessary.

1. Cautions

(1)     The glass should move along with ruler( edge line of the ruler should be vertical with bowl line ).

(2)     Turn on when adjust speed.

(3)     Adjust the handle wheel of bowl shoule be move as equal as possible, make sure the space of two sides are equal or it will affect cutting result.

(4)     Please put the machine on a plane and dry position. Don’t move or liberate machine when it is running or it will affect cutting result.

(5)     Please be careful when transfer or move .Do not turn over ,Do not put heavy things on the surface of table

(6)     Lubricate transmission gear and chain regularly.

(7)     Clean the machine in time when cutting work finished.

1. Equipped Electrical Machine

JWB-X-0.37-150(rotate speed adjustable)

Electrical Machine 0.37KW
