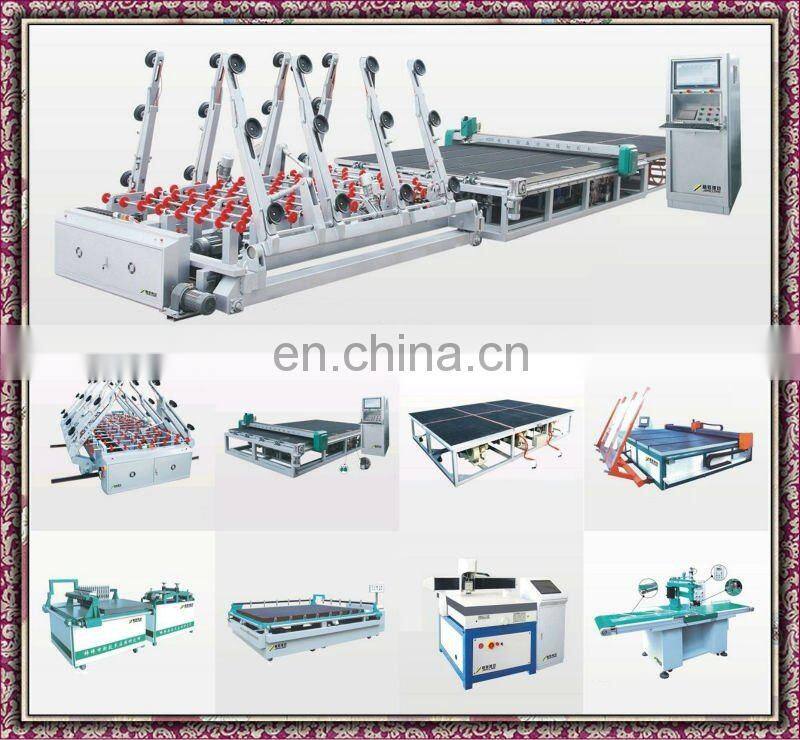

CNC Automatic Shaped Glass Cutting Table

FOB Price

US$ 1,000 - 10,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

JL-CNC-4028 Automatic Shaped Glass Cutting Table

Characteristic

- Mn bridge steel (Q345A ), perfect surface treatment

- Optimized table structure makes sure the stable table, dynamic balance and mechanics intensity perfectly matched

- Cutting pressure automatic adjusted according to glass thickness

- Cutter head 360 degree rotating

- Climbing wheels on the cutter head for protecting the cutter assembly and the glass

- Water proof surface panel, stainless steel side covered, water and deformation resisting

- High quality felt, perfect level, anti-static

- Automatic side locating system, pneumatic mechanical and photoelectric joint locating

- Self-lubricating guide rail

- Air filter for keeping the oil clean

- Air float and belt transmit

- Linear guide rail

- Automatic oiling for transmission system

Mechanical parts

Name	Brand
Table surface panel	High-density waterproof panel, roughness≤±0.20mm/m (Imported material)
Rack and rail	ALTANTA GEMERGY
Belt/band pulley	KONYEAR
Cutter wheels and holder	BOHLE GEMANY

Electric parts:

Name	Brand
Touch screen	LG KOREA
Relay	OMRON JAPAN
Terminal	WAGO GERMANY
Air-break switch/low-voltage apparatus/button	MOELLER GERMANY
Servo motor	YASKAWA JAPAN
Proportioning solenoid valve	SMC JAPAN
A.C. contactor	SCHNERDER
Laser Sensor	PANASONIC
Position switch	OMRON
Control card	NAIKA (GERMANY)/GALIL(USA)
Frequency converter	DELTA
Pneumatic components	AIRTAC

Technical parameter:
