China Yilian Brand EVA Extrusion Coating Machine

Sjfm series green laminator, paper plastic composite units (no adhesive composition unit): set discharge, drying, surface treatment, composite, cutting edge, suction side, volume as a whole; the photoelectric error correction, corona treatment, line speed, feed length digital display; automatic constant tensile force, temperature control and advanced technology.s:

1. 1.Double stations of non-stop feeding system, pre-drive high speed paper changing system, intermediate floating straight edge system, automatic tension control, according to the sensor to detect, feedback, automatically adjust the tension, realize the whole machine line tension automatically control.

2.Cooling roller adopts high degree of finish roller, which can eliminate bubbles produced during the compounding process.

3.Silicone roller and cooling roller adopt screw-type cooling structure, which to make cooling quickly and laminating easily.

4.Rotary type water joints adopts domestic advanced seal structure ,to prevent leaking and prolong life of joints

5.Compounding roller is droved by one vector frequency electric motor, can adjust the speed quickly ,to making different thickness of the film what we need, Ensure the thickness uniformity the same.

6.T-type flow structure, the key parts (die lip) to facilitate flexible adjustments plated lapping processed to ensure that the effect of the lamination was smooth.

7.The domestic leading of automatic hydraulic changing filter device ,is able to filtering impurities ,cutting molten resin quickly when machine stopped,reduce waste of resin.

8.large length to diameter ratio, the resin more thoroughly when the winding is not easy crimping.

9.The machine adopts PLC One-touch  centralized controls，advanced touch screen control system.

10.It controls the speed of the extruder and compounding body at the same time, the extruder along with the compounding body to higher speed, lower speed, and proportional increasing or decreasing, assure film thickness is constant

11.According to requirements , set coating film thickness, the extruder can cooperate  compounding body speed automatically, to reach setted the film thickness.

12.Multi-parameter memory function, feel free to call stored in the parameters system.

13.Tension, speed and working condition are dynamic display

14.High effeicient corona treater

Main technical parameters:

1.Applicable coating film resin: Coating grade like LDPE 、PP 、EVA、EAA etc .

2.Based material: paper (35~425g/m2 ),PET, textile fibre ,non-woven fabric, Knited mesh

3.Max working speed: 100~150m/min

4.Max width of coating film: custom make

5.Thickness of coating film: 0.01–0.11mm

6.Inaccuracy thickness of coating film: ±6%

7.Setting range of Auto-tension : 10-200kg/entire width (constant tension)

8.Max extrusion: 200kg/h

9.Compound cooling roller: Φ500 (can choose)

10. Total power：about 80kw

11.Max rewinding diameter: Φ1300mm

12. Inside diameter of  base material: Φ76

13.Machine total weight: about 15000kg

14.Overall dimension:9600mm×8000×3250mm（L×W×H）

15.Machine color: can choose

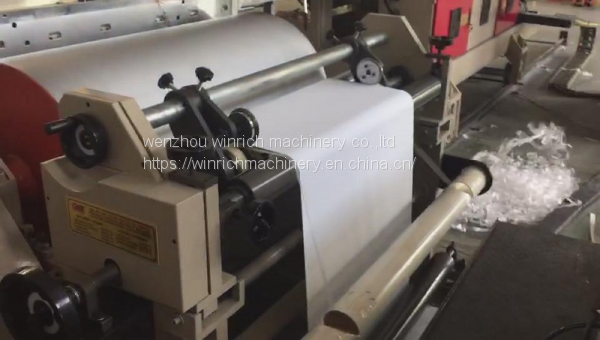

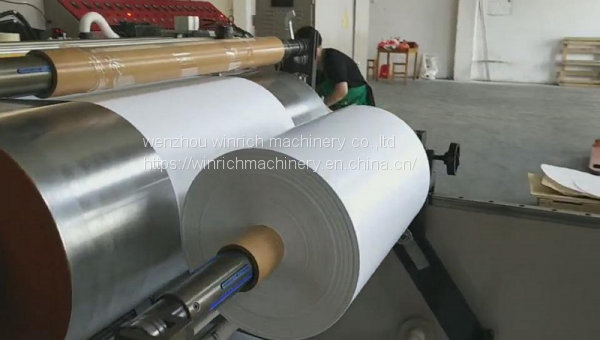

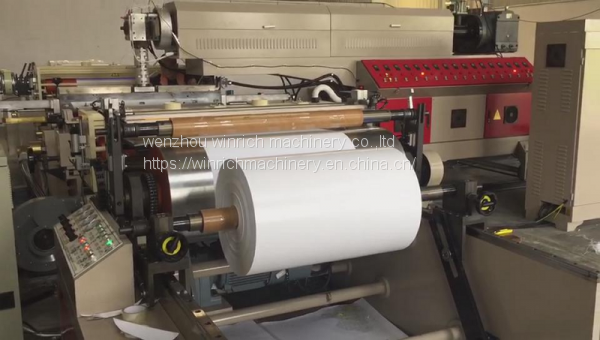

Picture from customer factory:

Sample: PET film thickness 0.14mm, EVA coating thickness: 0.15-0.2mm
