Dielectric HR Mirror
- Changchun
- T/T
- 7 days
You May Like
Product Details
| Brand Name | TC OPTICS | Place of Origin | China |
Product Description

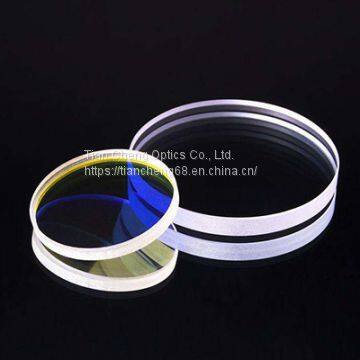

Dielectric HR Mirror
Metal Coated Mirror
Optical Mirror
Dielectric HR Mirror offers near total reflection, minimizing losses in nearly all optical systems. It has a high reflectivity in a narrow band or broadband wavelength.
Capacity:
Material: Optical glass and Fused silica
Diameter: 1 to 300 mm
Diameter tolerance: +0/-0.1 mm
Thickness tolerance: ±0.02 mm
Surface Quality: 20-10
Surface Figure: λ/10
Parallelism: 1 minute
Coating: Aluminum, Silver, Gold and Dielectric
Specification:
Material | BK7 grade A optical glass |
Dimension Tolerance | ±0.2 mm |
Clear Aperture | > 85% |
Parallelism | <30 arc seconds |
Surface Quality | 20-10 scratch and dig |
Flatness | λ/10 per 25 mm@632.8 nm |
Coating | R > 98% on S1, R=(R s+ R p)/2 |
Protective Bevel | 0.25 mm x 45° |
BK7 Dielectric HR Mirror Standard Products:
Part No. | Size (mm) | Incidence Angle | Wavelength (nm) |
TDM701 | Ф25×6 | 0° | 632.8 |
TDM702 | Ф25×6 | 45° | 632.8 |
TDM703 | Ф25×6 | 0° | 1064 |
TDM704 | Ф25×6 | 45° | 1064 |
TDM705 | 5×7×2 | 0° | 780 |
Note: Other material, sizes and coatings are available upon request.
