Stainless Steel Wire Helix Paint Delivery Eco-friendly Chemical Composite Hose

Applications:

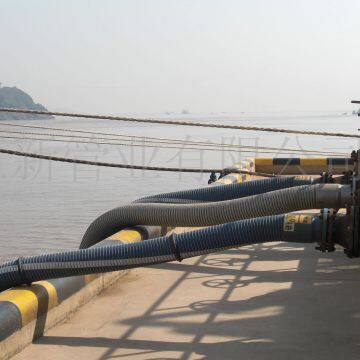

Grain oil hoses are specifically applied to tankers, exchange plants, loading and unloading platforms, ship-to-ship, ship-to-shore and etc. they are specifically engineered for the transfer of the peanut oil, olive oil and palm oil etc .various kinds of edible oil .

Performance in positive/negative pressure

As the steel ring being the main skeleton, the maximum working pressure is up to 5.0Mpa, negative pressure 0.1Mpa. When the pressure reaches to its limit because of the fluids inside, the hose itself would only creep instead of instantaneous blasing.

Great temperature tolerance

The normal working temperature is  -80℃~110℃ and the hose wouldn't get harder or softer as the climate or applicable temperature around changes.

Features:

1.The complicated working conditions, such as wind, wave, ship’s sway, hose

weight and operation factors at sea and coats have been taken into account when

designing. Flex oil hose is made of corrosion resistant material, suitable in

coastal conditions with high corrosion.

2.Reinforced steel strength and other improved materials help to lighten hose

weight and enhance flexibility.

Composite hoses are lightweight, kink proof and flexible for superb handling.

Multi-layer construction prevents catastrophic failures.

Flexibility is retained at low and even cryogenic temperatures

Fatigue-free and do not age or weather.

Description:

It is a multi-layer thermoplastic hose made from Polypropylene, Polyethylene and Polyester films and Polypropylene fabrics, with a weather-proof and abrasion resistant outer cover made of Polymeric coated Polyester abric.Outer cover is also available in a special PU coated fabric; its UV, Ozone, Sunlight and weathering resistance, offers superior temperature and abrasion charactwieristics.

All the different layers are wrapped together and tensioned between internal and external wire spirals. This enables our product to meet the requirement of the Petrol-chemical industry and those of the oil tank truck industry.
