Gasoline Diesel Chemical Transfer Highways Railway Hose 15 M / Bar

Description:

• Composite hoses are lightweight, kink proof and flexible for superb handling.

• Multi-layer construction prevents catastrophic failures.

• Flexibility is retained at low and even cryogenic temperatures.

• Fatigue-free and do not age or weather.

Outstanding flame retardant property.

Anti-static.

Long-term durability.

The CCS and ABS certificates are available.

Structure: internal steel wire material: 304 steel wire

Steel wire material: hot-dip galvanized steel wire

Composite material: Polypropylene

Working pressure:-0.6Mpa to 2.5Mpa

Use temperature: -30 C ~ 120 C

Features：

1. Multipurpose oil resistant composite hose, it is widely used in transportation fuel oil liquid gas, gasoline, diesel, kerosene, oil and other hydrocarbon products.

2. Multipurpose chemical delivery hose, which is widely used to transport corrosive chemical liquid and gas products, excellent chemical resistance properties.

3. Hose for cars, it is special used in tank, soft light, suitable for frequent bending mobile use, long life design, tank hose international.

4. Dock ship loading and unloading hose, it is dedicated to the ferry terminal, strengthening structure, heavy chemical resistance, excellent, frequent bending will not crack.

5. Paint conveying hose, it is dedicated to the paint products, solvent resistance, abrasion resistance and excellent antioxidant properties.

6. Low temperature resistant hose, which is used for transporting low temperature environment or use products, such as LPG, LNG, ethylene, propane, dry ice.

7. High temperature tube, it is used for conveying high temperature hot water, hot oil product, etc..

Application:

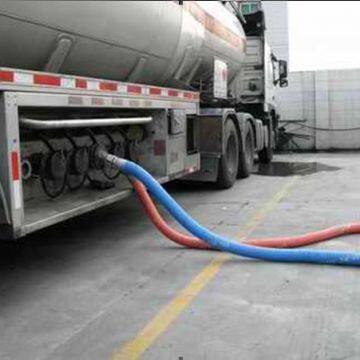

Widely used to transport corrosive chemical liquid and gas, excellent chemical resistance: often used in various factories, wharfs, highways and railway oil transmission and unloading. It is characterized by light weight, softness, easy operation and high performance price ratio.

Length:1 "8" is the longest 40 m / bar: 10 "the longest 20 m / band: 12" to 16 "the longest 15 m / bar.

Connection: flange, quick connector (quick connector material: 304/316/316L/ copper, aluminum alloy, etc.) external thread, internal thread, etc.

Parameter：
