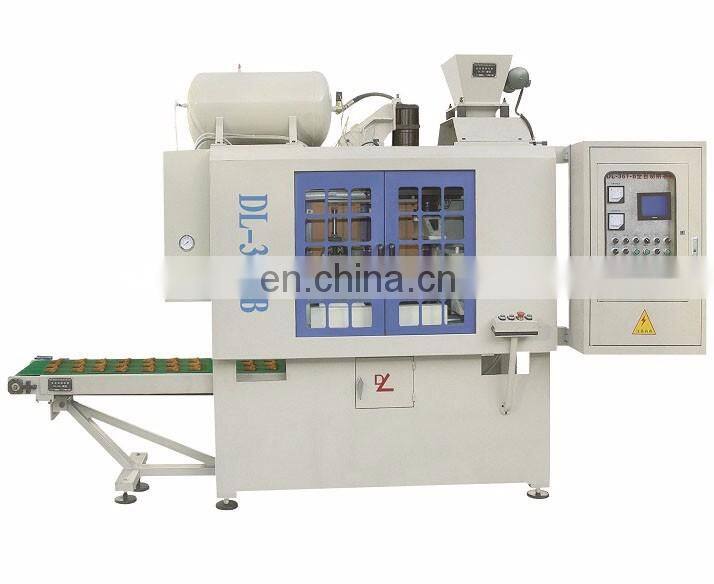

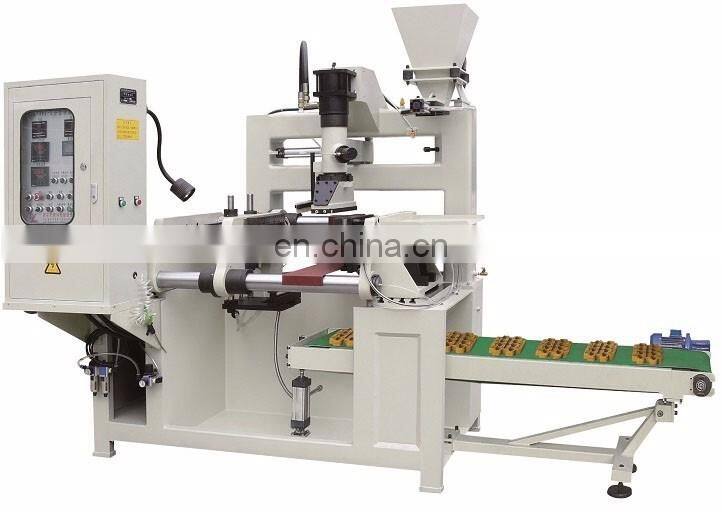

DL-361 Automatic sand core shooting mhine

Automatic sand core shooting machine Advantages

DL-361 core shooter is a heat core box shooter which is vertically divided, semi-automatic, with the die upturned.

Compared to common core shooter, advantages of the heated core box shooter are as followed :
1. With the human-computer interface, imported high quality electrical and air controlled components, precise and reliable control and convenient operation are guaranteed.

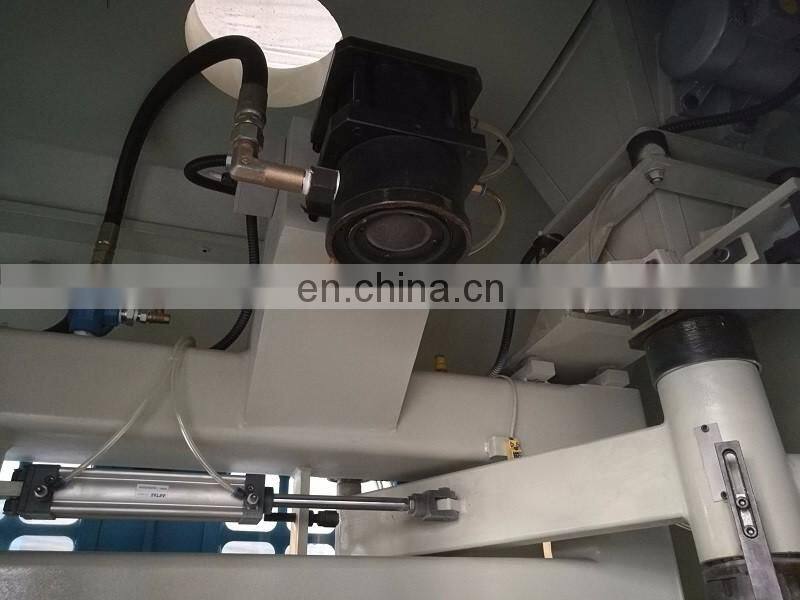

2. The shooting head rotates for 50° to receive sand. It is far away from high temperature area but within the range that personnel can operate, therefore, it is easy to clean the shooting hole manually.

3. The machine can be plainly moved as a whole. After die is closed, the die will move along the X axis and Y axis to make the shooting hole alignment more convenient and precious.

4. Core-pulling rack is set for the moving die which meets special requirements of the die. If the core doesn't need to be pulled, switch off the core-puller.

5. Die adjustment margin is set to make it easy to use different dies and lower the requirements of die exterior physical dimension.

Main Specifications And Technical Parameters

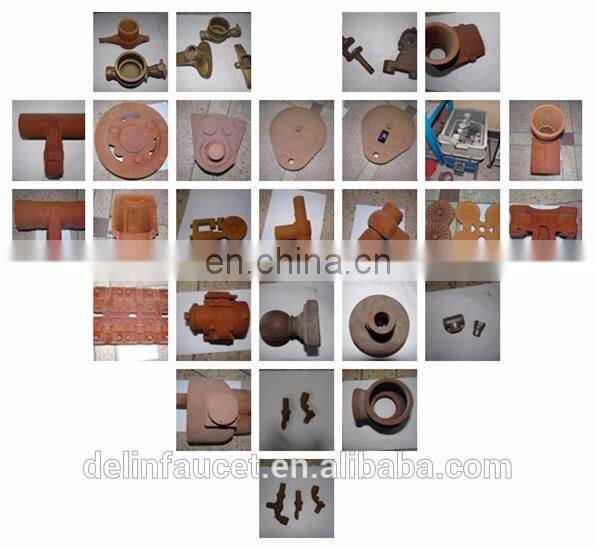

Smaple Show

The core shooter is applicable to valve, water tag, hardware fittings, hydraulic pressure and small workpieces of variety cores in the air-powered industry ect. .
