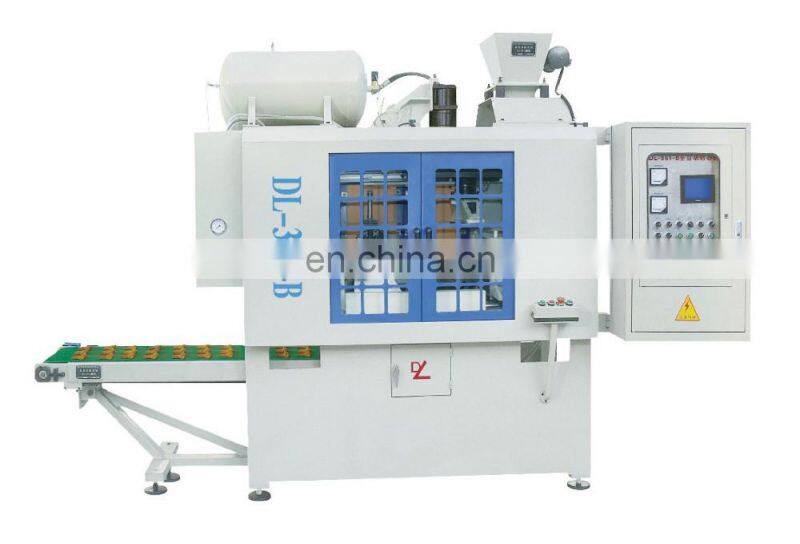

high quality faucet sand core shooting machine

FOB Price

USD $1,000 - $100,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Fujian, China
Brand Name	DELIN facuet sand core shooting machine	Model Number	DL-400-B
Voltage	100-380v	Power(W)	8kw
Dimension(LWH)	14206801700mm	Weight	513kg
Certification	CE, CE	Warranty	1years
After-sales Service Provided	Engineers available to service machinery overseas

1. Faucet sand core shooting machine feature:

1)Horizontal parted type,fetching core manually.

2)three kinds of function manual,single-circle automatic, automatic circulation.

3)Can shooting sand simultaneously in two sides, big moulding board, electric heating, high efficiency.

4)Apply to good fluidity coated sand.

2.Faucet sand core shooting machine parameters:

Greatest Weight of sand cores	3.2kg*2
the biggest size of core boxes	380280200mm
left and right itinerary of plunger	125mm
the longest itinerary of clamping	≤300mm
net weight of machine	513kg
heating power	8kw
size of machine	14206801700mm
According to customers' requirement	add core-pulling at frontal and back

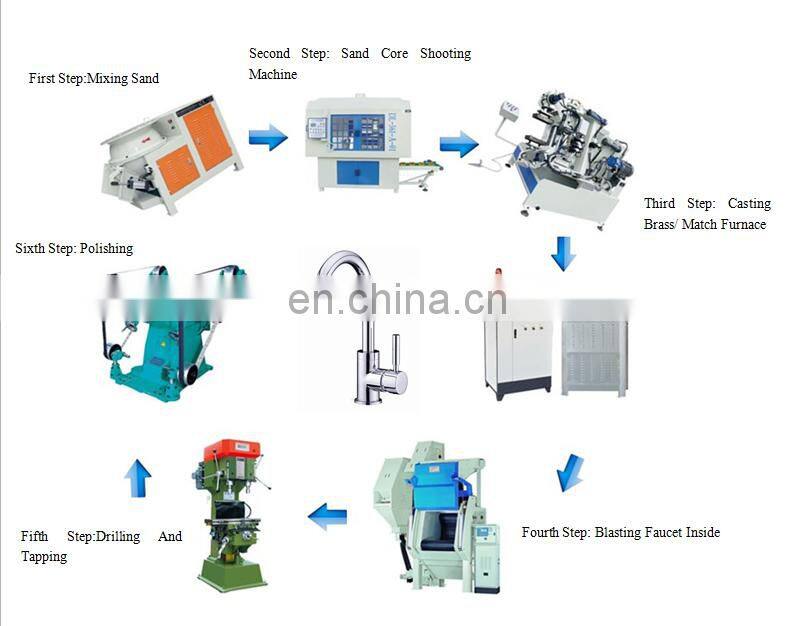

3.Faucet sand core shooting machine Production Prcess:

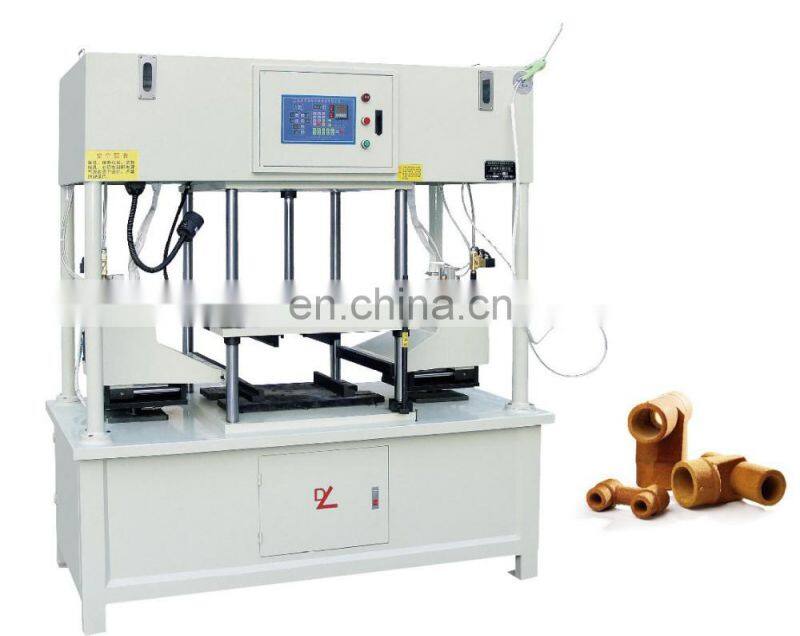

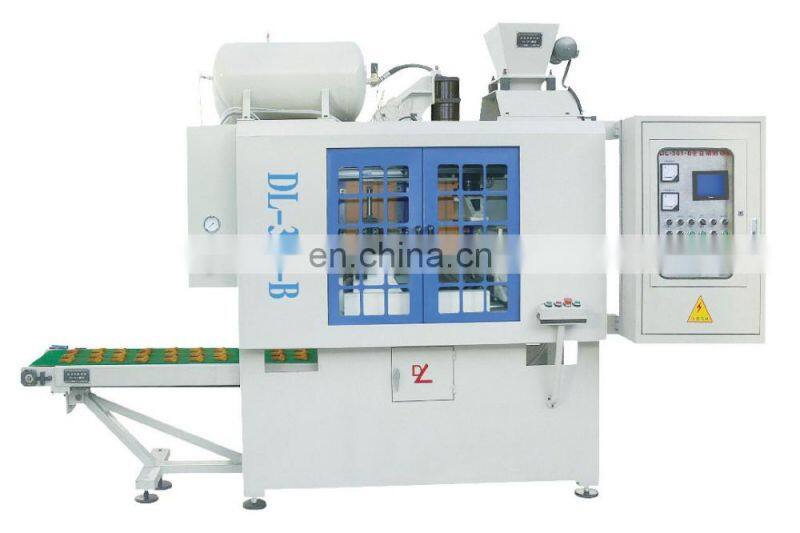

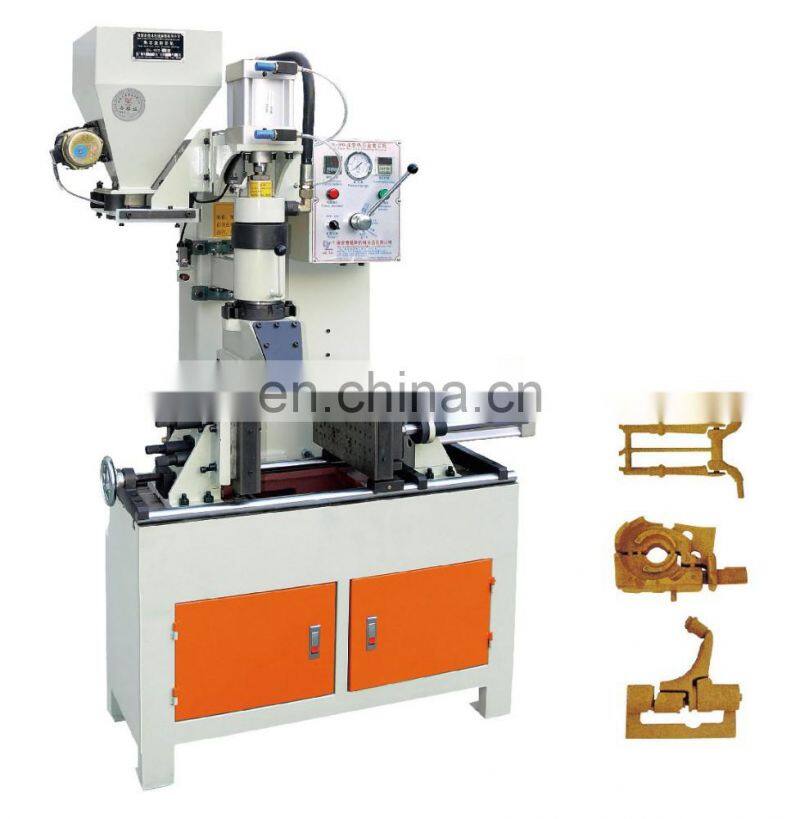

4.Machine Show:

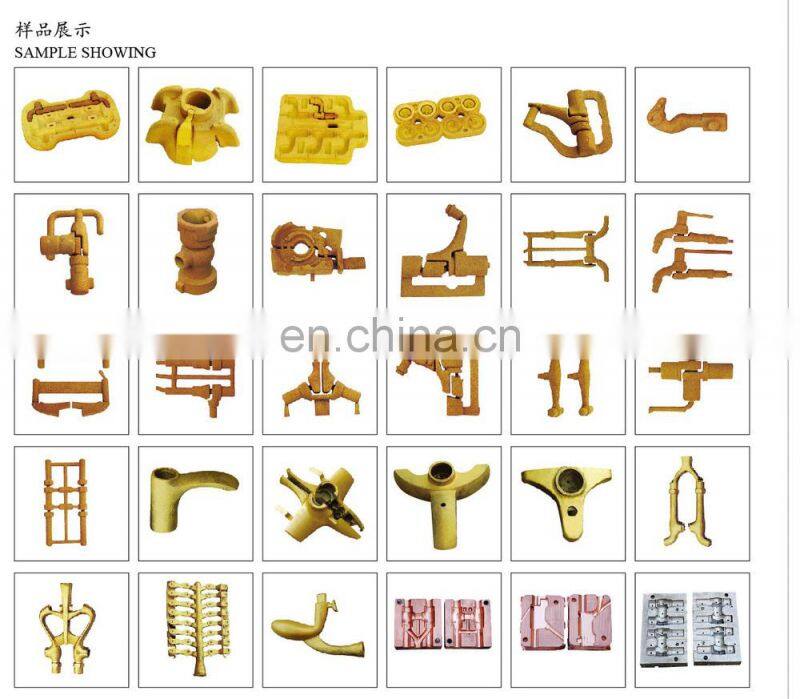

5.Sample line:

6.our service:

1)Reply your enquiry in 24 working hours.

2)Experienced staffs answer all your questions in professional and fluent engliash.

3)Customized design is availlable.

4)Exdusive and unique solution can be provided to our customer,by your our well-trained and professional enginees and staffs.

5)Special discount and protection of sales area provided to your distributor.

6)Do the best colorful metal cheep small wholesale in china.
