Fully Automatic Double Electric Sand Core Shooter Machine
- xiamen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
High Quality Faucet Sand Core Shooting Machine
-
Hight Quality Heat Core Box Core Shooting Machine
-
International New Technology Upc Faucet Shower Faucet Cartridge Machine
-
Portable Sand Blasting Machine
-
Easy Operation Automatic Core Shooting Making Machine
-
Brass Basketball Shooting Game Machine for Sale
Product Details
| Place of Origin | Fujian, China | Brand Name | DELIN | |
| Model Number | DL-650 core shooter machine | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
FULL AUTOMATIC SAND CORE SHOOTER MACHINE:
Introduction:
DELIN FULL AUTOMATIC SAND CORE SHOOTER MCAHINE is a heated core box core-making equipment with a four-column operable structure which can be operated manually or automatically. It is applicable to sand core with a qualitative properties less than 3.2kg.
Its working principle is to shoot the dry resin bonded sand into a heated core-box. After being rapidly hardened to a certain thickness, high qualitysand core with a smooth surface and precise dimension is obtained.
Main features and working principle:
1. four-column operable structure which can be operated manually or automatically
2. shoot the dry resin bonded sand into a heated core-box.
3. High productivity: A cycle period only lasts for ten-odd seconds to tens of seconds, many sand cores can be produced at the same time.
4. the casting process redundancy is reduced.
Technical datas:
model | Automatic Double Head Core Shooting Machine |
Maximum core box dimension | (380x280x200)mm |
The maximum distance from worktable to shooting head | (50-150)mm |
Shooting head right-and-left stroke | 125mm |
Effective clamping pressure of shooting head | 4900N |
Compressed air-pressure | (0.45-0.7)kpa |
Sand hopper volume | (5x2)kg |
Free air consumption | 0.1M3 |
Machine net weight | 855kg |
Electrical equipment installation capacity | 6.4kw |
Machine exterior dimension length* width* height
| (1420x680x1650)mm |

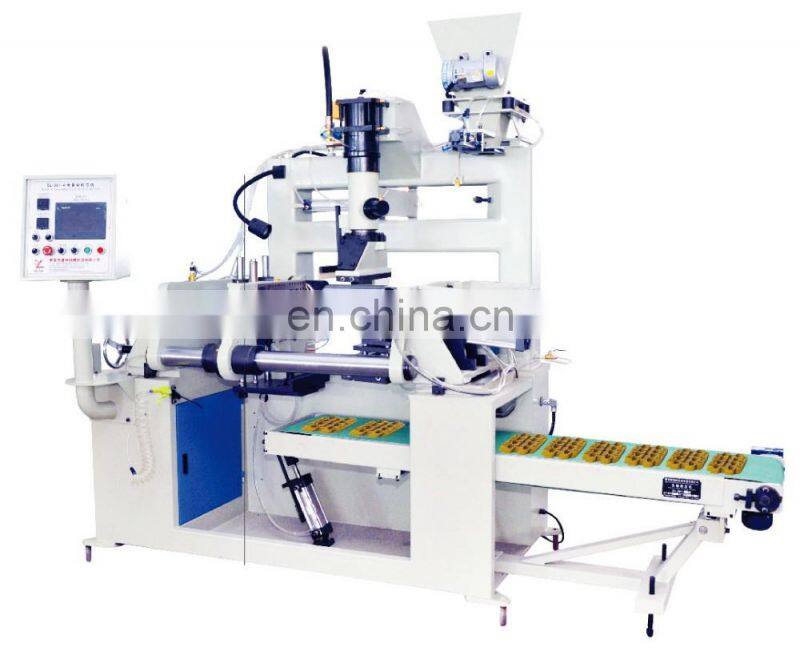

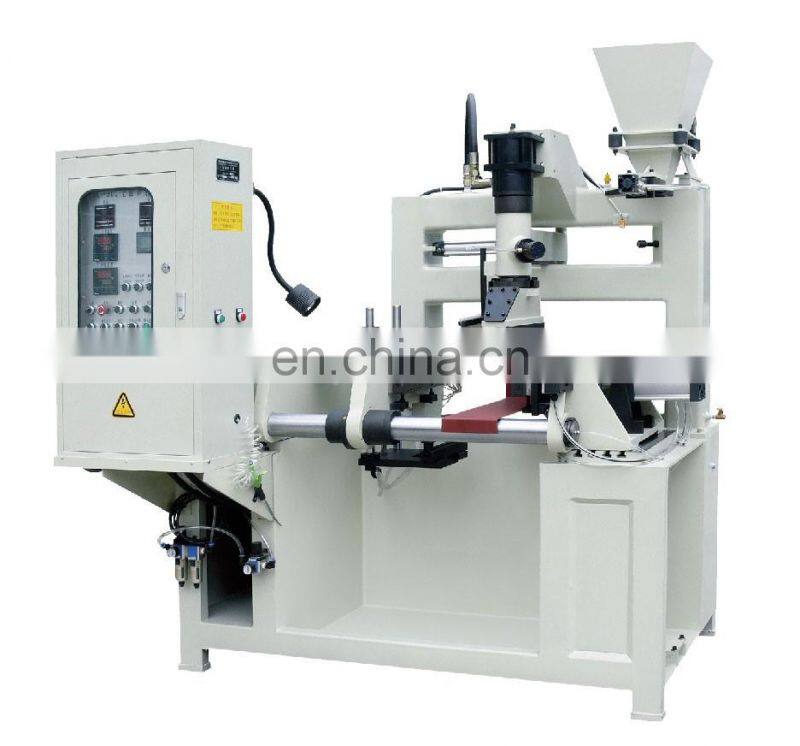

Machine Shows:
Process Procedure:
PRODUCT SHOWS
