Home > Products > Metallized Polypropylene Film Capacitor > CBB23 Metallized polypropylene film capacitor(Box-type)

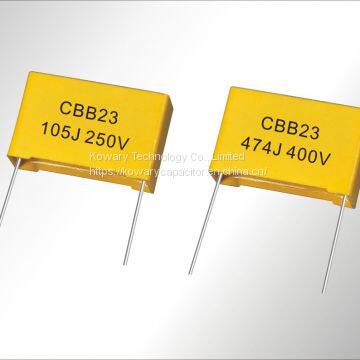

CBB23 Metallized polypropylene film capacitor(Box-type)
USD $0.015 - $1
/ Piece
1000 Pieces(Min.Order)
- 1000000 Piece / Pieces per Month
- T/T L/C Other
- 7 days
You May Like
-
CBB20T/A Metallized Polypropylene Film Capacitor Axial
-
MPB-A Metallized polypropylene film A.C. capacitor for capacitive divider
-
MPP-A Metallized polypropylene film A.C. capacitor for capacitive divider
-
X2-A Metallized polypropylene film A.C. capacitor for capacitive divider
-
PPS CBB81 High-voltage Polypropylene Film/Foil Capacitor
-
CBB13 Polypropylene film/foil capacitor (Non-inductive)
Product Details
Brand Name | KOWARY | Place of Origin | China | |
Model Number | K6B | Type | Polypropylene Film Capacitor | |
Application | General Purpose | Rated Voltage | 400VAC, 500VAC, 600VAC, 700VAC, 900VAC | |
Operating Temperature | -40°C ~ 105°C | Package Type | Through Hole | |
Capacitance | 0.00047μF ~ 0.15μF |
Product Description
Features | Metallized polypropylene film. |
Low loss at high frequency. | |
Small inherent temperature rise. | |
Plastic case (UL94 V-0), epoxy resin sealing | |
Applications | Pulse applications with high A.C. voltage and high current |
Electric lighting (i.e. Electric ballast, E-HID) | |
High-frequency A.C. loads | |
Specifications | REFERENCE STANDARD: IEC 60384-17 |
Climatic Category: 40/105/56 | |
Rated Temperature: 85°C | |
OPERATING TEMPERATURE: -40°C ~ 105°C (+85°C to +105°C: decreasing factor 1.25% per °C for UR) | |
CAPACITANCE RANGE: 0.00047μF ~ 0.15μF | |
CAPACITANCE TOLERANCE: ±5%(J), ±10%(K), ±20%(M) | |
RATED VOLTAGE: 400VAC, 500VAC, 600VAC, 700VAC, 900VAC | |
Test Voltage: 1.6UR for 5 sec. | |
DISSIPATION FACTOR: ≤0.001 Measured at 1KHz and 20°C | |
INSULATION RESISTANCE: ≥100 000MΩMeasured at 20°C, 100V and 1 min. | |
Notes | Customization for special specification and requirement is available. |
Kindly contact with info at for product datasheet. Thanks! |
