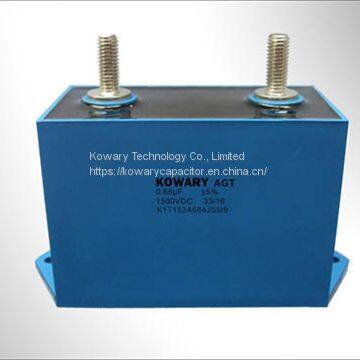

Power Electronic Capacitor High Frequency Resonant AGT

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Kowary	Place of Origin	China
Model Number	1.0uF 750VAC	Type	Polypropylene Film Capacitor
Application	Power	Rated Voltage	500 to 3000 Vac
Operating Temperature	- 40 to + 85 ℃	Package Type	Through Hole
Capacitance	0.04 to 10μF

■GENERAL TECHNICAL CHARACTERISTICS

Reference standards IEC 61071

Dielectric Polypropylene film

Construction Dry construction, Non-inductive type

Case Solvent resistant plastic case. Flammability class UL94 V-0.

Output Threaded insert M6, Lead screw M8

Dissipation factor ≤5×10^-4 Measured at 1000 Hz and 20±5℃

Life expectancy 100,000 hours at U_N and 70 ℃(Hot-spot temperature)

Dielectric strength 1.5×Urms (AC) applied to 10s at 20±5 ℃

Test voltage terminal to case 3KVAC/50Hz for 60s

Insulation resistance(IR*C_N) ≥ 5000s but need not exceed 30GΩ, after 1 minute of electrification at 100Vdc (20±5℃)

■ELECTRICAL SPECIFICATION Unit: mm

Remark: 1. *** Internal code.

2. Customization for special specification and requirement is available.
