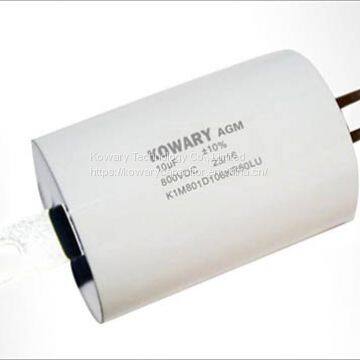

Power Electronic Capacitor High Ripple Current AGM
- 1000000 Piece / Pieces per Month
- Shenzhen
- T/T L/C D/P D/A PayPal Other
- 15 days
You May Like
Product Details
| Brand Name | Kowary | Place of Origin | China | |
| Model Number | 20uF 500VAC | Type | Polypropylene Film Capacitor | |
| Application | Power | Rated Voltage | 400, 800, 1000Vdc (permissible AC voltage at 50/60Hz 250,400,500Vac) | |
| Operating Temperature | - 40 to + 85 ℃ | Package Type | Through Hole | |
| Capacitance | 1 to 200μF |
Product Description
■GENERAL TECHNICAL CHARACTERISTICS
Reference standards IEC 61071
Dielectric Polypropylene film
Construction Dry construction, Non-inductive type
Case Polyester tape wrapping; UL94V-0 material filling
Output Threaded insert M5, M6 or M8, 2 Lugs
Dissipation factor ≤10×10-4 Measured at 100 Hz and 20±5℃
Life expectancy 100,000 hours at UNDC and 70 ℃(Hot-spot temperature)
Dielectric strength 1.6×UNDC applied to 10s at 20±5 ℃
Test voltage terminal to case 3KVAC/50Hz for 60s
Insulation resistance(IR*CN) ≥5000s but need not exceed 30GΩ, after 1 minute of electrification at 100Vdc (20±5℃)
■ELECTRICAL SPECIFICATION Unit: mm
Part Number | Cap (μF) | Dimension (Insert) | Output Insert | Du/dt (v/μs) | Imax@60℃ @10KHz (A) | ESR @1.0KHz (mΩ) | ||
D | L | P | ||||||
UNDC 400Vdc, Urms 250Vac | ||||||||
K1M401D206KR50F5#*** | 20 | 41.0 | 50.0 | 62.0 | M5*8 | 60 | 27 | 3.2 |
K1M401D256KR50F6#*** | 25 | 47.0 | 50.0 | 62.0 | M6*8 | 60 | 32 | 2.7 |
K1M401D306KR50F6#*** | 30 | 50.0 | 50.0 | 62.0 | M6*8 | 60 | 37 | 2.5 |
K1M401D406KR50F6#*** | 40 | 58.0 | 50.0 | 62.0 | M6*8 | 60 | 46 | 2.1 |
K1M401D506KR50F8#*** | 50 | 64.0 | 50.0 | 62.0 | M8*8 | 60 | 54 | 1.9 |
K1M401D506KR64F6#*** | 50 | 53.0 | 64.0 | 77.0 | M6*8 | 30 | 40 | 2.7 |
K1M401D606KR64F6#*** | 60 | 58.0 | 64.0 | 77.0 | M6*8 | 30 | 46 | 2.4 |
K1M401D806KR64F8#*** | 80 | 66.0 | 64.0 | 77.0 | M8*8 | 30 | 56 | 2.1 |
K1M401D107KR64F8#*** | 100 | 74.0 | 64.0 | 77.0 | M8*8 | 30 | 66 | 1.9 |
K1M401D157KR64F8#*** | 150 | 90.0 | 64.0 | 77.0 | M8*8 | 30 | 90 | 1.6 |
K1M401D207KR64F8#*** | 200 | 104.0 | 64.0 | 77.0 | M8*8 | 30 | 100 | 1.2 |
UNDC 800Vdc, Urms 400Vac | ||||||||
K1M801D106KR50F5#*** | 10 | 36.5 | 50.0 | 62.0 | M5*8 | 70 | 23 | 4.3 |
K1M801D156KR50F6#*** | 15 | 45.0 | 50.0 | 62.0 | M6*8 | 70 | 32 | 3.2 |
K1M801D206KR50F6#*** | 20 | 52.0 | 50.0 | 62.0 | M6*8 | 70 | 39 | 2.6 |
K1M801D256KR50F6#*** | 25 | 58.0 | 50.0 | 62.0 | M6*8 | 70 | 46 | 2.3 |
K1M801D306KR50F8#*** | 30 | 63.0 | 50.0 | 62.0 | M8*8 | 70 | 52 | 2.1 |
K1M801D306KR64F6#*** | 30 | 55.0 | 64.0 | 77.0 | M6*8 | 50 | 39 | 3.1 |
K1M801D406KR64F8#*** | 40 | 63.0 | 64.0 | 77.0 | M8*8 | 50 | 48 | 2.6 |
K1M801D506KR64F8#*** | 50 | 70.0 | 64.0 | 77.0 | M8*8 | 50 | 57 | 2.3 |
K1M801D606KR64F8#*** | 60 | 76.0 | 64.0 | 77.0 | M8*8 | 50 | 65 | 2.1 |
K1M801D806KR64F8#*** | 80 | 88.0 | 64.0 | 77.0 | M8*8 | 50 | 80 | 1.8 |
K1M801D107KR64F8#*** | 100 | 98.0 | 64.0 | 77.0 | M8*8 | 50 | 95 | 1.6 |
UNDC 1000Vdc, Urms 500Vac | ||||||||
K1M102D505KR50F5#*** | 5.0 | 41.0 | 50.0 | 62.0 | M5*8 | 120 | 23 | 5.4 |
K1M102D106KR50F6#*** | 10 | 58.0 | 50.0 | 62.0 | M6*8 | 120 | 38 | 3.2 |
K1M102D156KR50F8#*** | 15 | 70.0 | 50.0 | 62.0 | M8*8 | 120 | 52 | 2.5 |
K1M102D156KR64F6#*** | 15 | 58.0 | 64.0 | 77.0 | M6*8 | 80 | 38 | 3.9 |
K1M102D206KR64F8#*** | 20 | 66.0 | 64.0 | 77.0 | M8*8 | 80 | 47 | 3.1 |
K1M102D256KR64F8#*** | 25 | 74.0 | 64.0 | 77.0 | M8*8 | 80 | 56 | 2.7 |
K1M102D306KR64F8#*** | 30 | 81.0 | 64.0 | 77.0 | M8*8 | 80 | 64 | 2.4 |
K1M102D406KR64F8#*** | 40 | 93.0 | 64.0 | 77.0 | M8*8 | 80 | 79 | 2.1 |
K1M102D506KR64F8#*** | 50 | 104.0 | 64.0 | 77.0 | M8*8 | 80 | 90 | 1.9 |
Remark: 1. *** Internal code.
2. Customization for special specification and requirement is available.
