Home > Products > Thermal protector/Thermostat > Normally Closed 70Degrees KSD9700 Temperature Protector Switch

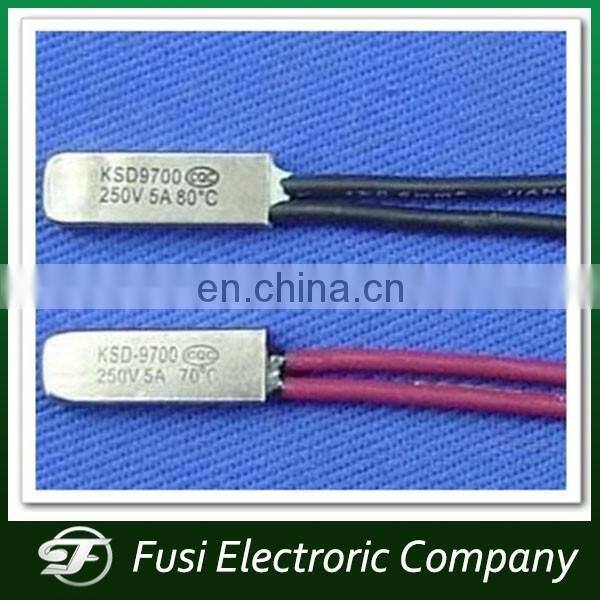

Normally Closed 70Degrees KSD9700 Temperature Protector Switch
US$ 0.11 - 0.16
/ Piece
1000 Pieces(Min. Order)
- shengzhen
- Credit Card
You May Like
-
95Degrees KSD9700 Plastic Case Bimetal Thermostat Temperature Controller Switch Thermal Protector
-
All Kinds of Bimetal Temperature Switchs With UL VDE
-
150Degrees KSD9700 Metal Case Bimetal Thermostat
-
135Degrees Bimetal Thermostat for Gas Control Valve
-
65degrees Normally Closed Thermal Protector
-
Temperature Bimetal Thermal Protector
Product Details
| Place of Origin | Guangdong, China | Brand Name | FUSI | |
| Model Number | KSD9700 | Usage | Household | |
| Theory | Bimetal Thermometer | Accuracy | ±5℃ | |
| Temperature Range | 30~155°C |
Product Description

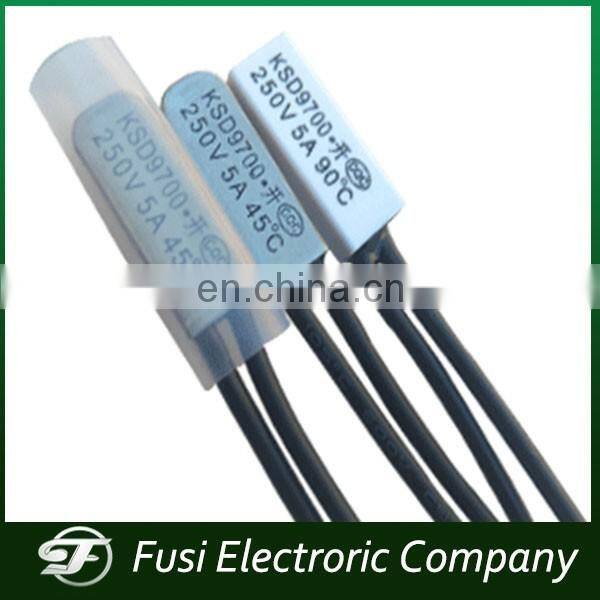

Thermal protector KSD9700 temperature control switch
Name: Thermal protector
Model: KSD9700
Switch Type: normally open / normally closed
Material: metal / plastic housing
Specifications: Metal 20mm * 7.4mm * 3.8mm; Plastic 20mm * 8.0mm * 4.0mm
Rated voltage: 250V
Overload Current: 5A
Operating temperature: 30 degrees -180 degrees
Rated current: AC125V / 8A, AC250V / 5A
Normal Electric Strength:> 800V
Normal contact resistance: <50mΩ
Insulation resistance:> 100MΩ
Response speed: <= 1 ℃ / min
The number of times life:> 10,000 times or more
Operating temperature: 20 ° C -180 ° C (error ± 3 ° C / ± 5 ° C)
Reset temperature: 10 ° C- 140 ° C (error ≤15 ° C
Application
Overheat Protection for Electric Motors,Gas Water heater, Fluorescent Ballasts, Battery Chargers,
Thansformers,Solenoids, Heating Pads, QA-Machines, Gas control valve etc.

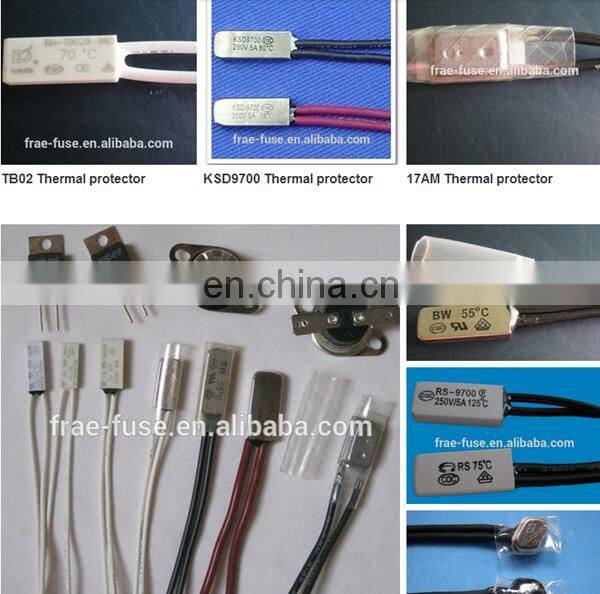

Related Products
About our company
We are specialized in manufacturing of various bimetallic thermal protectors and thermostats. Our bimetal thermal protectors and thermostats are widely used for thermal protection and temperature control in Electric Motors, Fluorescent Ballasts, Battery Packs, Transformers, Solenoids, LED driver power, power switches, electric water heater, washer, electric oven, fried pan, refrigeration industry, electric tools, and the fields of overcurrent or over temperature protection for various household appliances.
Certifications
Packing & Delivery
Packing Details : Regular packing
Delivery Details : 5~7 days,it will depend on the quantity for order.
Delivery Details : 5~7 days,it will depend on the quantity for order.
Delivery ways
We usually send the goods to you through the international express,such as UPS,DHL,TNT,EMS,Aramex,Fedex,and it will take 3~7 working days to your door.
And big order, we advice that you can choose by sea, it can save the cost of shipping for you,but it will takes about 25-30days to arrive your destination port.

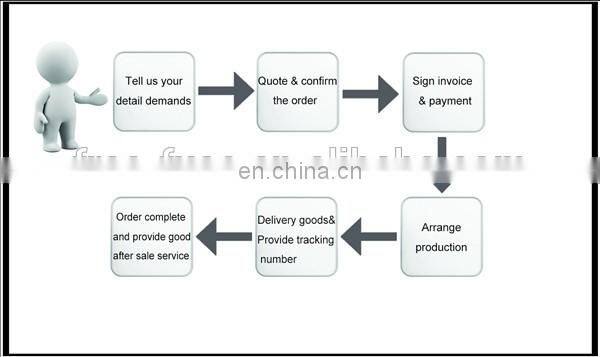

Order process
