Thermal Protectors for Home Appliance
- shengzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | FUSI | |
| Model Number | KSD301 |
Product Description
Our products are suitable for motors,transformers, chargeable batteries, ballasts, massagers, various fractional motors, plastic package motors, transformers,apparatus, water dispensers, disinfectant cabinet, electric open-water bottle, coffee pot, water heaters, microwave ovens and other household appliances.
KSD301 series use bimetal as temperature-sensitive component.In normal condition,the pair of metal sheets are in a free state with contacts being closed/disconnected state.when the temperature reaches the temperature for action,the pair will generate inner stress and move rapidly to open/close contact,switch off/on circuit,and thus playing a role in temperature control.When the electrical devices cool to the reste temperature, the contacts will automatically close/open and return to normal working condition.

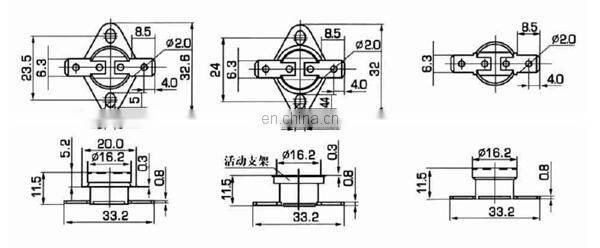

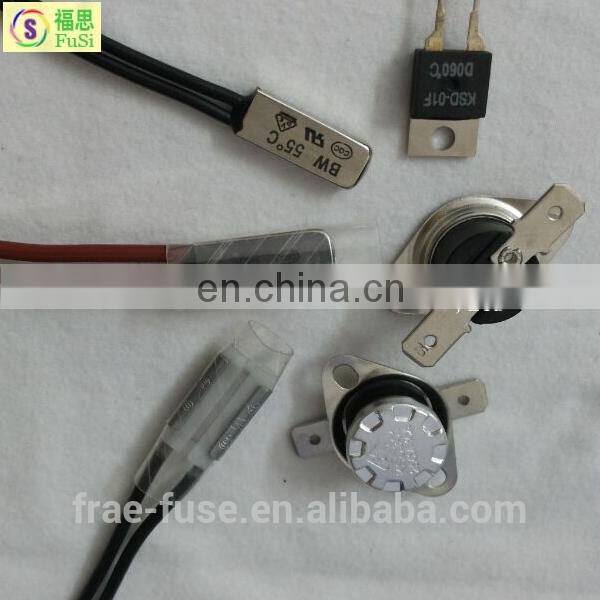

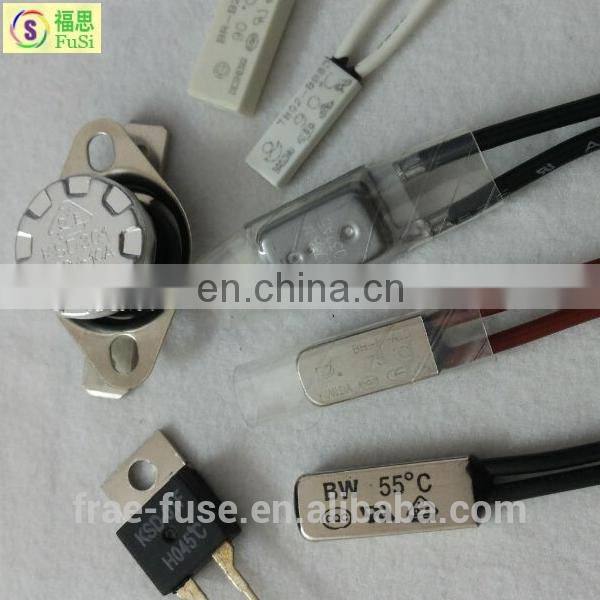

1.Photo show:

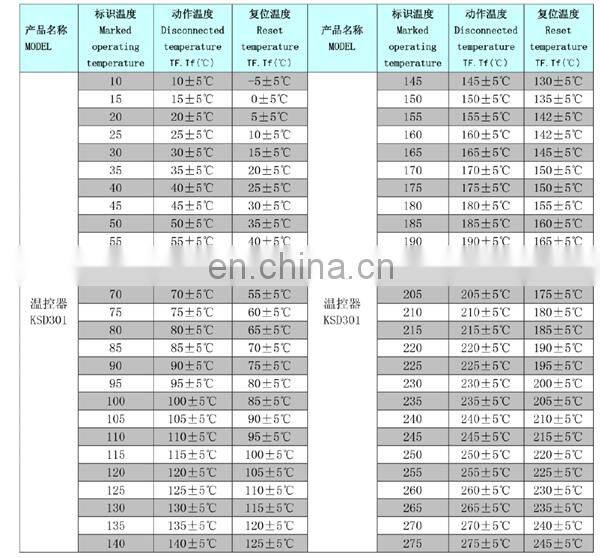

2.Temperature range:
| CODE | OPEN TEMP | RESET TEMP | CODE | OPEN TEMP | RESET TEMP | |
| 30 | 30±3.5°C | ≥20°C | 95 | 95±5°C | 70±15°C | |
| 35 | 35±4°C | ≥25°C | 100 | 100±5°C | 70±15°C | |
| 40 | 40±4.5°C | ≥30°C | 105 | 105±5°C | 75±15°C | |
| 45 | 45±5°C | ≥33°C | 110 | 110±5°C | 75±15°C | |
| 50 | 50±5°C | ≥35°C | 115 | 115±5°C | 80±15°C | |
| 55 | 55±5°C | 42±6°C | 120 | 120±5°C | 85±15°C | |
| 60 | 60±5°C | 45±8°C | 125 | 125±5°C | 85±15°C | |
| 65 | 65±5°C | 48±10°C | 130 | 130±5°C | 90±15°C | |
| 70 | 70±5°C | 50±12°C | 135 | 135±5°C | 95±15°C | |
| 75 | 75±5°C | 53±14°C | 140 | 140±5°C | 100±15°C | |
| 80 | 80±5°C | 55±15°C | 145 | 145±5°C | 100±15°C | |
| 85 | 85±5°C | 60±15°C | 150 | 150±5°C | 105±15°C | |
| 90 | 90±5°C | 65±15°C | 155 | 155±5°C | 110±15°C |
The above temperatures are only for your reference,if you can't find the one you need, contact us immediately, please offer the specification of the product, such as temperature,size, color, quantity,drawing,etc.we will quote it for you asap.

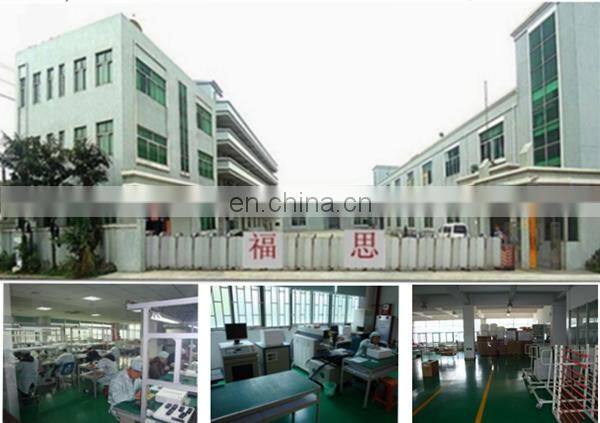

3.Our factory:
4.Contact ways:
Welcome to inquiry or order for us. Competitive price,High Quality and Complete After-sales.
