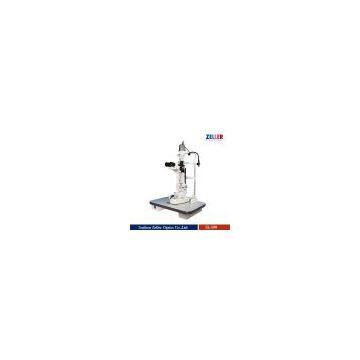

china slit lamp microscope

We have many different high quality slit lamp for your choose .

Tower style/The high eyepoint and open field eyepieces design can guarantee the clear image even when you wear glasses.
There's three options : 5 Steps / 3 Steps / 2 Stpes )
10x, 16x (Common )
10x, 16x, 25x (Standard)
6x, 10x, 16x, 25x, 40x (Professional)

Microscope

Type     Galilean-Type

Magnification change        Revolving Drum

Total magnification Ratio      6x,10x, 16x, 25x,40x

Eyepieces      12.5x

Angle between eyepieces     13 degree

Pupillary adjustment      55mm~78mm

Diopter adjustment      ±6D

Field of view      40x (5.5mm), 25x (8.5mm),16x (13.5mm), 10x (22mm), 6x (34.7mm)

Slit Illumination:

Slit width      Continuously variable from 0 to 14mm

at 14mm,slit becomes a circle

Slit length      Continuously variable from 1mm to 14mm

Lamp      6V/20W Halogen Lamp

Slit angle      0~180 degree(continuously adjustable both vertical and horizontal)

Slit inclination      4 step 5 degree,10 degree,15 degree,20 degree

Filters       Thermal safety,UV,Red-free,Cobalt Blue

Aperture diameters      14mm,10mm,5mm,3mm,2mm,1mm,0.2mm
