china chart projector vision tester

Specifications

The best vision chart in China . With CE ,FDA
Including a wide range of test charts ,Precise test distance adjustment

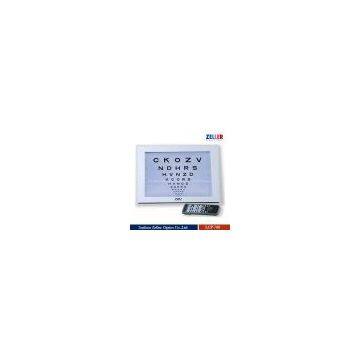

LCD vision chart LCP-700 IS The best vision chart in China . With CE ,FDA
Including a wide range of test charts
Precise test distance adjustment
Clear and sharp screen display, the brightness reaches 160cd/(minPossessed of red-green mask function, etc.
Easy to upgrade by using a USB Disk / Small size, east to installDesktop and bracket installation are both available

Specification :
LCD: 17-inch XGA Panel
Distance:   2 M -7M (in steps of 0.1m)
Remote control: IR
Remote control battery:  AAA
Brightness: 160 cd/m2  (min)
Optotype: E, C, Letter, Number, Children
Test function: Schober Test,  Worth Test,EDTRS,Cross Grid,Coincidence Test,Stereo Test ,Astigmatism Test,Fixation point Test,Ishihara Test,Cross cylinder,Red Green Panel,Red Green Balance,Contrast adjustment
Mask type: Change of the background, Single mask, Horizontal mask, Vertical mask, Red/Green mask
Visus unit: 5-Grade, Decimal,  LogMAR, Snellen(ft), Snellen (M)
Other functions: Use with path folding mirror possible,Screen-saver function
Specification parameter
Power:               Input: 110-230V AC +-10%, 50/60Hz,Output: 12V DC
Power consumption:   20 Watt(max)
Dimension:            395 mm×325 mm×38mm(L/W/H)
Packing dimision:       500 mm x440 mm x255mm (L/W/H)
Weight:                2.15KG
Working environment
Temperature:           +5°C~+40°C
Relative humidity:       ≤80%
Air pressure:           800hPa~1060hPa
