Proximity Card Reader (ERFID08A)

Brand Name	ework		Place of Origin	China
Model Number	08A

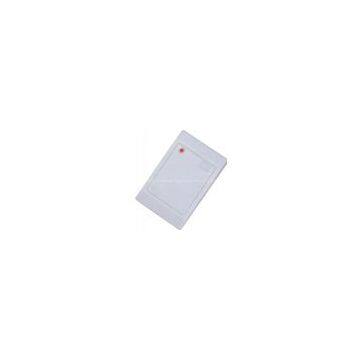

ERFID08A Proximity Card Reader

Specification

*Wiegand 26bits/ Wiegand34bits, RS232, RS485 interface.
*Less than 0.2 second Response Speed
*Less than 0.5 seconds Proximity Time Distance:
*5-10cm Proximity Range
*Support ID (125 kHz) or Mifare1 (13.56 MHz Frequency) Card
*-25 C to 75 C Ambient Temperature
*10%-90% Ambient Humidity
*Built-in Antenna
*Built-in LED (Double Color LED)
*Built-in Loud Speaker (Buzzer)
*DC 5V-16V Working Voltage. Standard Direct Current 12V
*70mA Working Current
*100 Meters Communication Distance
*Real Time Data Transfer
*White or Black Color
*PVC Case Material (Black Resin for Water-Proof Function)
*114*76*16(mm)

Installation

Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.

Wire Connection

Red DC 5V-16V
Black GND
Blue D1
White D0
Brown BEEP
Green LED
Yellow Alarm

Notice

1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply
2. When external Power is used, make sure sharing the power with Controller Box or using the same GND

3. When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia, or using several parallel Network wires
