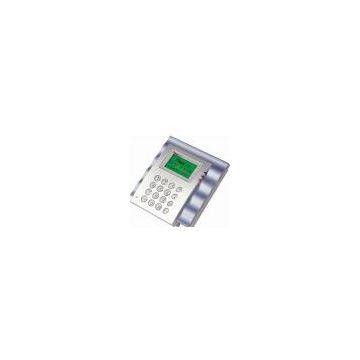

Time Recorder (TQ02)

Brand Name	ework		Place of Origin	China
Model Number	TQ02

Features

With built-in TCP/IP protocol, 10M per second transfer speed, directly connecting factory LAN or Internet, realizing the Data Share among the Factory or different factory area.
Data Real Time Transfer, improve attendance data reliability via the Newest Net Platform
10000 Proximity Card, 24000 Offline Reocords

Synchronize Time Attendance Server Time, Exact and Accurate time
2 Routes Switch Signal Output, connecting door bell or alarm light. It is also OK to use for access controller and dining room timely consumer.
Support Time Attendance Message Show Function, with LCD Display: Two lines, 16 words or 4 lines, 32 words
Language Display: Chinese, English, Traditional Chinese
Display Job Number and Name
Super Large LED Display, green light is on when reading effective card, red light is on when reading no effective card

Software Features

Based on SQL Data Warehouse, with basic reliability function. B/S Structure, All the authorize customer can use IE explorer to visit the record data and doing the concerned deal.
Complete Authority Management, can set up the compatible authority for different rank of manger.
Short Message Function for individual or group (such as notice. ) on the online condition
Software Platform can be extended into the function of Access Control or Consume System, realizing One Card, One Data warehouse in real meaning.
Complex Shift Management: For example, transfer shift, reverted shift
Normal Status Time Attendance Mange: Self definition for work time, calculate time length and times for early leave and late for work.
Abnormal Status: For the status of business leave, work ill, absent, be out temporarily, etc.
Ask for leaving management: Self definition for type, having salary or not, yearly Holiday can be input long leave.
Different set for Overtime work type
Provide Time Attendance Report, such as Original Record List, detailed report, daily report, monthly report, and abnormal report.
With Time Attendance Data Copy or Return Function.

Specifications

CPU 32-MCU
Operating voltage DC9V, 500mA. Back Light
Operating current 200mA
Capacity 10000 Proximity Card, 24000 Offline records.
COM port 1OM Ethernet Interface
Display 4 Line* 8 words with LCD, 65*35MM LED indication
Red, Green, And Yellow
Size 160*180*45(MM)
Keypad 16 digit keypad in glass (with Back Light)
Type of Cards ID, MIFARE
Reading Range More than 5CM
