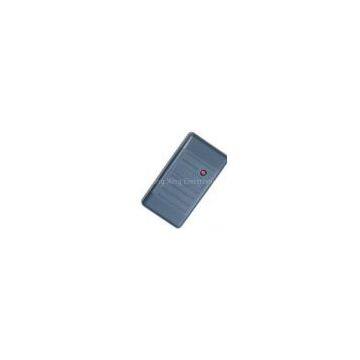

Wiegand 26/34 EM-ID Reader (ERFID08C)

Brand Name	ework		Place of Origin	China
Model Number	08C

Wiegand 26 Proximity Card Reader

Specifications

*Wiegand 26bits/ Wiegand34bits, RS232 and RS485 Standard Format Data Output
*Less than 0.2 second Response Speed
*Less than 0.5 seconds Proximity Time Distance:
*5-10cm Proximity Range
*Support 125 kHz ID Card (UEM 4100 or compatible with it, 64bits, Manchester Code)
*-25C to 75C Ambient Temperature
*10%-90% Ambient Humidity
*Built-in Antenna
*Built-in LED (Double Color LED)
*Built-in Loud Speaker (Buzzer)
*DC 12V Working Voltage
*70mA Working Current
*100 Meters Communication Distance
*Real Time Data Transfer
*Dark Grey
*80*42*12.5(mm)

Installation

Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.

Wire Connection

Red DC 5V-16V
Black GND
Blue D1
White D0
Brown BEEP
Green LED
Yellow Alarm

Notice

1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply
2. When external Power is used, make sure sharing the power with Controller Box or using the same GND
3. When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia, or using several parallel Network wires
