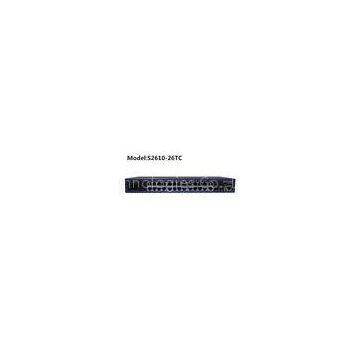

8.8Gbps Managed 24 Port Gigabit Smart Switch 16K MAC Address S2610-26TC

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	GCOM		Place of Origin	China
Model Number	S2610-26TC

Delivery Time:15 working days
Certification:CE, FC, UL, CCC

8.8Gbps Managed 24 Port Gigabit Smart Switch 16K MAC Address S2610-26TC

o 24*10/100Base-T

o 2*ComboGE (100/1000BaseX SFP or 100/1000BaseT)

o 16K MAC address

o 512 ACL

o 4K VLAN,selective QinQ

o STP/RSTP/MSTP

o AC220V and DC

Product Specification:

?	S2610-12TC
Backpla-ne bandwidth	8.8Gbps
Forward-ing capacity	6.25Mbps
Port	2410/100 Base-T 2ComboGE (100/1000 BaseX SFP or 100/1000 BaseT)
MAC	MAC Black Hole Port MAC Limit
L2 features	IGMP Snooping STP/RSTP/MSTP Remote-loop-detect 802.3ad linkage convergence Port mirroring Vast frame
VLAN	4K VLAN entries Selective QinQ Port-based VLAN Port and protocol-based VLAN ACL-based VLAN
Multicast	512 L2 multicast groups IGMPv1/v2/v3 Snooping IGMP Filter IGMP Fast leave
QoS	Packet limit speed rate of port or self-defined flow receiving and sending Packet mirroring and packet re-direction of port or self-defined flow Priority remark of port or self-defined flow, provide 802.1P,Remark of DSCP priority Advanced queue scheduling of port or self-defined flow, each port/flow supports 8 priority queues, provide the algorithms of SP, WRR, and SP+WRR
Security	Radius authentication SSHv2 Secure Shell Access control based on port and MAC Suppression on broadcast storm
Management	CLI, Console port, Telnet and WEB management SNMPv1/v2/v3 RMON (Remote Monitoring)1,2,3,9 MIB GN.LinkⅡ Server NGBNView network management
Power supply	Input AC: 176～265V, 47～63Hz Input DC: -36V～-72V
Environmental requirements	Operating Temperature:-20°C～60°C Storage Temperature:-20°C～85°C Relative humidity:5%～95%,non-condensing
