Product Details
| Brand Name | GCOM | Place of Origin | China | |
| Model Number | EN2000-04S-W |
Product Description
Certification:CE, FC, UL, CCC

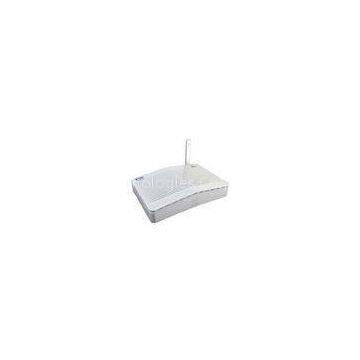

12V 1.5A FTTX EPON ONU 2K MAC Address Low Power Consumption EN2000-04S-W
Overview
EN2000 Series terminal class ONU is for all kinds of FTTB FTTH access ONU launched by GCOM. As network application oriented toward carrier-class FTTH, it supports multi-service access including pure data, data+ audio, data+ audio+ WIFI, data+ audio+ CATV etc,. EN2000 series adopts chip with high performance and low power consumption, and also conforms to China Telecom’ CTC2.1 interconnection and mutual intelligibility standard. EN2000 series can provide users with abundant functions of business management while coordinating with GCOM NGBN’ unified network management operating system, which could fully meet the equipment demand of carrier-class network FTTB HTTH.
Business Features
| Attributes | EN2000-01GS/02S /02S-V | EN2000-04/04-T | EN2000-04G | EN2000-04W/04V-02V/04V-W | EN2000-04S-2VT/ 04S-2VWT | EN2000-08/ 16/ 24 | ||
| PON features |
Conform to IEEE 802.3ah EPON standard Conform to China Telecom/China Unicom GEPON interoperability standard Support 20KM transmission distance of signal optical fiber Support 128Bits uplink and downlink triple agitation encryption Support standard OAM and extended OAM management function Support batch upgrading, timing upgrading and real-time upgrading of ONU software Support PON ports optical power, accept optical power monitor |
|||||||
|
VoIP features |
Support SIP/H323/MGCP Support G711,G726,G729 CODEC etc. Support T.38/G711 punch through FAX pattern Support the GR909 line testing function of POTS port Show caller ID through FSK signal Support two types of faxes – unvarnished transmission, T38 under high/ low- speed mode Support three-party conference of ports, three-party conference also supports local audio mixing Support RFC2833 DTMF Support Telnet management and VoIP’s Web management |
|||||||
| CATV features |
Metric system CATV RF junction Support RF bandwidth of 47~870 MHz Support shut off CATV’s signals Support CATV signal |
|||||||
| L2 features | MAC |
EN2000-01G supports 64 MAC address EN2000-02 / 04G-S2 / 04C supports 2K MAC address EN2000-02V / 04v2 / 04W / 04V-v2 / 04V-W / 04TV-v2 / 04TV-W supports 1K MAC address EN2000-08v3 supports 8K MAC address EN2000-16v2 / 24v2 supports 16K MAC address |
||||||
| VLAN |
Support 4K VLAN entries Port isolation under same VLAN Support port-based VLAN |
|||||||
| Spanning tree | Support loop detection | |||||||
| Port |
Bandwidth control Port mirroring |
|||||||
| Security features | User’s security | MAC address binding to port and port MAC address filtration | ||||||
| Device security | Anti-CPU/DOS attack and virus attack on the control layer | |||||||
| Network security |
Port-based broadcasts Multicast suppression and auto-shutdown risk port |
|||||||
| QoS |
Support port-based, 802.1P, ToS and customized TCP/UDP ports’ advanced queue scheduling Every port supports 4 priority queue Offer FIFS,SP and WRR etc. queue scheduling arithmetic |
|||||||
| Multicast |
IGMPv1/v2 Snooping Support across-VLAN multicast function |
|||||||
| Reliability features | Link protection | Support static link aggregation (link healing time<10ms) | ||||||
| Equipment protection |
All the ports acquire more than 4Kv signal lightening protection capacity Power partially support more than 2Kv anti-surge capacity |
|||||||
| Maintenance features | Network maintenance | Support statistics of receiving packet and transmitting packet based on the ports of WEB
