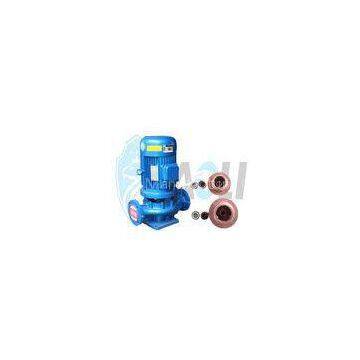

Vertical Detachable Single Stage Centrifugal Pump For Hot Water Transfer
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Horizontal Single Stage Centrifugal Pump , Booster Water Pump For Urban Water Supply
-
Explosion Proof Horizontal Centrifugal Pump , End Suction Pump For Liquids Transfer
-
High Performance Horizontal Single Stage Centrifugal Pump For Transport Clean Water
-
Portable Electric Sewage Pump , Submersible Drainage Pump For Waste Water
-
High Flow Submersible Sewage Pump For Farmland Irrigation In Rural Areas
-
Stainless Steel Industrial Submersible Water Pump For Sewage Treatment
Product Details
| Brand Name | AOLIPUMP | Place of Origin | China | |
| Model Number | ALGB,ALRB,ALHB,ALYB. |
Product Description
Certification:ISO/WSC/CE/SGS
Detachable?Vertical end suction centrifugal pump For Hot Water Transfer
Usage:
ALGB detachable single stage centrifugal pumps are mainly used for industrial and urban high-rise water supply, pressurization of fire service pipes, cold and hot water circulation for HVAC, long distance water delivery, and cyclic pressurized delivery in production.
ALRB detachable single stage hot water pumps are suitable for the pressurized circulation transportation of high temperature water in the industries of metallurgy, chemical, textile, woodworking, papermaking, and boilers in restaurants, bathrooms, hotels etc., as well as for the heat supply of urban heating system.
High-rise pressurized water supply
Delivery in factories.
Pressurization in water treatment system.
Circulation of cold and hot water in central air-conditioning.
Delivery in boiler system
Water delivery in swimming pool
Pressurized circulation in technological process
Partial Performace Parameters:
| Model | Capacity (m3/h) |
Head (m) |
Speed (rpm) |
Power Kw |
(NPSH)r | Voltage (V) |
| 200-12.5(I) | 400 | 12.5 | 1450 | 22 | 4 | 380 |
| 200-14(I) | 322 | 14 | 1450 | 18.5 | 4 | 380 |
| 200-17(I) | 358 | 17 | 1450 | 22 | 4 | 380 |
| 200-20(I) | 400 | 20 | 1450 | 30 | 4 | 380 |
| 200-24(I) | 346 | 24 | 1450 | 37 | 4 | 380 |
| 200-28(I) | 374 | 28 | 1450 | 45 | 4 | 380 |
| 200-32(I) | 400 | 32 | 1450 | 55 | 4 | 380 |
| 200-32(I)A | 320 | 32 | 1450 | 45 | 4 | 380 |
| 200-38(I) | 346 | 38 | 1450 | 55 | 4 | 380 |
| 200-44(I) | 374 | 44 | 1450 | 75 | 4 | 380 |
| 200-50(I) | 400 | 50 | 1450 | 75 | 4 | 380 |
| 200-56(I) | 320 | 56 | 1450 | 75 | 4 | 380 |
| 200-60(I) | 346 | 60 | 1450 | 90 | 4 | 380 |
| 200-70(I) | 374 | 70 | 1450 | 110 | 4 | 380 |
| 200-80(I) | 400 | 80 | 1450 | 132 | 4 | 380 |
| 200-96(I) | 320 | 96 | 1450 | 132 | 4 | 380 |
| 200-112(I) | 352 | 112 | 1450 | 200 | 4 | 380 |
| 200-125(I) | 400 | 125 | 1450 | 200 | 4 | 380 |
| 250-44 | 428 | 44 | 1450 | 75 | 5 | 380 |
| 250-50 | 466 | 50 | 1450 | 90 | 5 | 380 |
?
Model Meaning:
Schematic Diagram of Removable Type:
?
?AOLIPUMPS:?
** Providing more details about your requirement such as flow, head, motor, medium and the like, you will get more correct products and price.?
?
?
