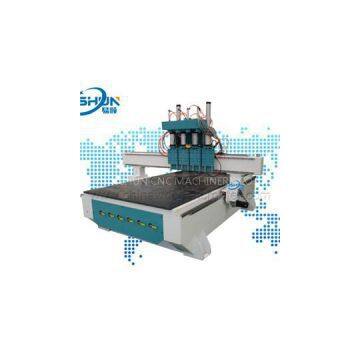

2,3 Or 4 Shift Cnc Router

Place of Origin	China

Two spindle?Alternately ?? ?Three spindle?Alternately ?? ?Four spindle Alternately ?? ?Pneumatic Tool Change CNC Router is very easily to use. Users only need to save the cutters position in the tool path,Website: , then system could realize the cutter auto changing according to the cutter code. And the user does not need to worry tool changing failed or spindle changing speed etc, also will not feel pity using 8.5kw spindle to drill 6mm holes. ?This series support spindle integrated control for multi-head from 2 to 8pcs, can delivery command to spindles to work in tandem, also can work similar as CNC router with auto tool changer. Pneumatic Tool Change CNC Router allow users to set different tool path for different spindles( cutters), similar working mode as auto tool changer. When the first spindle complete its work, the second spindle( cutter) can go on its own work automatically. ?? ?? ?The advantage using Pneumatic Tool Change CNC Router is its high speed of spindle changing or we call it cutter changing, only takes 2 seconds, you can turn on spindle in advance for warming up; could using different spindle, from 800w to 6.5kw, do not have to use 8.5kw ATC spindle to drill holes; easier maintenance, replace spindle easily; no exist of tool changing problem, will not have to stop working because of failed tool changing problem, good for mass production line. ?Pneumatic Tool Change CNC Router prove you that time is money. High efficiency, easier operation, low maintenance fee. You only need to install the extra spindle ( ATC spindle is very expensive, while common spindle is only 30%-60% around of it at the price. ?Model:YS 1325,YS1530,YS2030,?YS2040 ?X,Y-Axis Travel: 1300*2500mm; 1500*3000mm or more ?Z-Axis Travel: 200mm or others ?Spindle Power: 3kw*3, 24000rpm/4.5kw/6kw or others ?Collet: ER20/ER25 ?Positioning Accuracy: 0.025mm ?Repeatability: +/- .0025mm ?Max Traverse Speed: 30m/min ?Max Power Consumption: 3.0, 4.5kw or 6.0 spindle ?Drive System X and Y axis: Rack and Pinion, Hiwin rail linear bearing ?Drive System Z axis: Lead Screw,Hiwin rail linear bearing ?Standard Work Surface: Aluminum T-Plate Extrusion Combined Bakelite Vacuum Table ?Motor: Stepper or servo ?Spindle Protection Device: digital spindle temprature monitor ?Command languages: G code, *mmg, *plt, *u00 ?Voltage: AC380V/50/60Hz,3PH (Option: 220V) ?Software: Type3, Artcam etc ?ControllerType: DSP Remote ControllerInterface: USB ?Memory: 128 MB ?File Size Limit: Unlimited ?File Type: G codes & PLT ?Optional ?Servo motor system ?HSD selfcooling spindle, 18000rpm ?PC platform working mode( Weihong Controller system and NC studio software)Mechanical part of the machine ___________________________________ 1 piece ?Spindle Motor 3.0 KW 4.5 or 6.0kw power ?(is mounted on the machine) _______ 1, 2 or 3 ??piece ?CNC electronic control box _______________________________________ 1 piece ?Control System _______________________________________________ ?1 piece ?Vacuum pump ?(for the vacuum table)_______________________________ 1 piece ?Wate pump (for water cooling spindle) ______________________________ 1 piece for each spindle ?SOFTWARE ?TYPE3 or ARTCAM ?SPTA ?(Spare Parts, Tools and Accessories) ?for the machine ?1. Tool kit ?_________________________________________________ 1 kit ?2. Collets ?ER20 or ER25 or ER32 _____________________________ 4 pcs for each spindle ?3. Clamps ?for fastening workpiece ?____________________________ ?8 pcs ?4. Kit of bits ?______________________________________________ 20 pcs ?5. Brush __________________________________________________1piece ?6. Allen Key _______________________________________________ 4 pcs ?7. Open Spanner ___________________________________________ 2pcs ?8. Sealing Strip _____________________________________________ 1 piece ?9. Achor Bolt _______________________________________________ 4-6 pcs
