Vertical Drilling With ATC CNC

Place of Origin	China

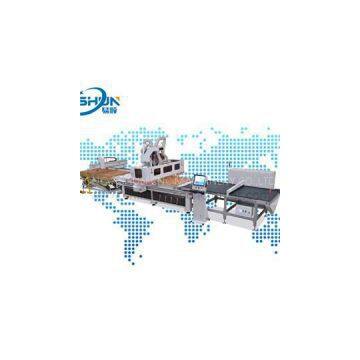

YS Vertical Drilling with ATC CNC Router for FurnitureThe customer is able to streamline the material handling,Website: , CNC routing, and offloading operations, seamlessly and efficiently.?The System is G-Code based and compatible with Cabinet Vision and other standard cabinet design programs and all popular CAD/CAM programs.Here's how it works:The YS-1325 CNC Systems furniture produce line automatically loads a 4x8 sheet from a pallet by way of a scissor lift located at the rear of the CNC machine. A movable gantry system equipped with suction cups using retractable guide rails and stops on the table safely and accurately guides the material sheet onto the CNC platform. Once the sheet is placed, the operator turns on the vacuum hold down and starts the cut cycle for the CNC to execute. After the sheet is fully processed, it is then pushed off to a conveyor table at the front end while another sheet is simultaneously loaded from the rear of the machine again. During this whole process the residual dust or chips that are not picked up from the dust collector are swept off the table and conveyor into various chutes keeping the work cell clear of dust and debris. Upon completion, the individual parts are labeled by the operator through an integrated barcode system. This facilitates clear identification of the finished parts for quick and easy assembly later on.SpecificationsProcess Area4 ft x 8 ft5 ft x 10 ftZ-Axis Travel7.5 inches7.5 inchesLoading and Unloading Speed800 in/min800 in/minDriveX/Y helical rack and pinion drive, Z ball screw driveX/Y helical rack and pinion drive, Z ball screw driveTable structureVacuumVacuumSpindle power12 HP12 HPSpindle speed24000r/min24000r/minTraverse speed17001700Cutting speed12001200Tool magazineCarouselCarouselTool Position88Construction Features9.0KW Italy HSD high frequency automatic tool changer spindle?YS Material handling Production work cell comes standard with a 12HP HSD high frequency automatic tool changer spindle. This precision spindle requires no maintenance, uses industry standard ER collets and ISO 30 tool holders. Fully programmable speeds from 6000 to 24000 RPM, and comes complete with pneumatically retractable vacuum hood.Base FrameAll frames are designed using state-of-the-art CAD/CAM software which analyze stresses applied to the frame’s structure, also known as Finite element analysis. This state-of-the-art leading edge technology assures the support foundation is structurally stable that will last the test of time. Each frame is stress relieved assuring long term stability in the frame structure mechanics.GantryThe gantry is constructed of tubular steel with reinforcing ribs welded throughout the length of the column which results in a steady firm beam assembly. This quality engineering and workmanship result in smooth precision cutting.Gantry Support (Uprights)The Gantry uprights are cast iron with heavy duty gussets formed into the casting. Each support is machined for housing the various drive assemblies including motors, bearings, and wiring harnesses.8 Tool Rotary CarouselProduction work cell includes an 8-position rotary carousel that moves with the machine while the gantry travels. The use of a carousel speeds up tool changes assuring faster cycle times increasing production capabilityFam Drill Bank5 + 4 VerticalAny Other configurations are available upon request.Linear Racks?The YS Series Production work cell uses precision Helical gear racks on the X- and Y-axes. The use of Helical precision rack n pinion assures smooth precision cutting at high feed rates. In addition, the method in which the racks are mounted help reduce maintenance.Drive MotorsThe New Venture Series Production work cell utilizes high-powered AC Servo motors powered by Delta Drives. These motors are brushless, therefore, requiring no regular maintenance, thus, reducing any maintenance downtime.Drive Train Assembly with reduction boxThe XY include a precision gearbox which is directly coupled to the Servo motor and pinion. This eliminates belt stretch inaccuracies assuring high-speed machining while the system positions the spindle accurately.BearingsHIWAN bearings and rails are used on all three axes. These superior quality components complement the overall construction by providing smooth play-free motion. This results in superior cut quality, requires minimal maintenance, and increases the machines longevity.Material Alignment System - Pusher BarYS Series Model Production work cell machine comes standard with a material alignment system. The material is centrally aligned with the machine's origin assuring the operator does not have any intervention with realigning the machine's start origin point.Vacuum Pump??TEFC (totally enclosed fan-cooled). Rotary Vane Vacuum Pump???Available in 230/460V, 50-60Hz, 3 ph or single phase?????Comes standard with motor starter, vacuum gauge, primary and secondary filter, check valve and all necessary plumbing to connect to router??Rated for ultra quiet operationCNC Windows-Based G-Code InterfaceThis included with each YS Series Production work cell machine and is an indispensable tool in any CNC Router application. It’s open architectural design accepts G-Code files from any industry standard CAD/CAM software package. The jogging buttons, speed controls and run displays are all visible on the main page. The intuitive single-screen design and functions are easy to use and remember. Customers that are new to automation find the YS CNC Systems CNC Interface easy to learn and operate. Most are up and running in less than one day. Customers soon discover that just because the YS CNC Systems CNC Interface is easy to use does not mean that it is not a comprehensive CNC program.?Several impressive features include:1, YS atc wood cnc router automatic furniture production line for furniture cabinet cutting drillingproduction line Perfect function,automatic loading and unloading function,vertically drilling,slot,cutting,engraving2, Saving time and labor,materials,replace traditional CAD draftman,splitting men,cutting men,only need 8 minutes to input size&design&split.Automatic layout optimization,improve matarial utilization3, High quality,automatic design.automatic typesetting,auto labeling.no human intervention,minimizing error rate,ensure the quality of the order
