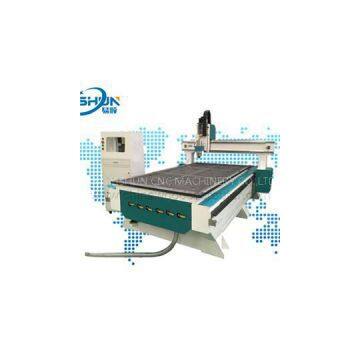

Wood Acrylic Cnc Router

Place of Origin	China

We choose YS CNC for our CNC Router it is really smart and worth the money we spend on it,Website: , We know that the machine will decrease our production time and expand our capabilities. This will allow us to take on additional jobs that we would not have been able to do before. Wood carving is done in speed time, Thank you, ys cnc, wish you wonderful days!"Characteristics1.Vacuum table with 6 vacuum zones, which can absorb different size materials, no oil vacuum pump, high suction, more convenient, stable capability.2. HIWIN square orbit, double slippers, bearing heavy, working steadily, high precision, and long life time, import ball screw, high precision for cutting.3. 3.0 kw HQD water cooling Spindle. Max speed is 25m/min. With water cooling spindle highly upgrade the processing speed.4. The optional equipment for spindle is Japan imported high power water cooling motor (Japan NSK bearing) high speed spindle, stable capability.5. Unique intelligent budget principle, fully develops the potential of the motor and lead to high processing speed, the synchronization of curves and straight lines, smoother curves.6. Well compatibility: CAD/CAM designing software e.g. Type3/Artcam/Castmate/Ucancam etc.?Apply to industry and materialsFurniture industry: the cabinet door, wooden door, solid wood, plate, doors and Windows, tables and chairs. Decoration industry: screen, wave plates, large wall hanging, advertising board, logo production.?Performance indexX,Y-Axis Travel: 1300mm*2500mm; 1500mm*3000mm, 2000mm*3000mm,2000*4000mm or others.Z-Axis Travel: 200mm or othersSpindle: 3kw watercooling 24000rpm or higher power; HSD3kw aircooling 18000rpm or higher powerRepeatability: +/-0 .025mmTraveling Speed: 15m/min-50m/minDrive System X and Y axis: Rack and Pinion, Hiwin rail linear bearingDrive System Z axis: Lead Screw,Hiwin rail linear bearingStandard Work Surface: Aluminum T-Plate Extrusion Combined Bakelite Vacuum TableMotor: Stepper/ServoSpindle Protection Device: digital spindle temperature monitor (not fitted for air-cooling spindle)Command languages: G code, *mmg, *plt, *u00Voltage: 380V/3phase; 220V/3phaseControllerType: ?DSP Remote Controller/ NC studio/ SyntecInterface: USB /PCIMCMemory: 128 MBFile Type: G codes & PLT/ Gcode/ G code&M code.Accessories, Mechanical part of the machine ___________________________ 1 pieceSpindle Motor 3.0KW or others (is mounted on the machin_______ 1 pieceCNC electronic control box _______________________________ 1 pieceDSP(USB) console panel(Weihong controller or MACH3)________ ?1 pieceWater pump (for water cooling Spindle) ______________________1 pieceCables for connection ____________________________________1 kitSOFTWARETYPE3 or ARTCAMSPTA ?(Spare Parts, Tools and Accessories) ?for the machine1. Tool kit ?_________________________________________________ 1 kit2. Collets ?ER20 or ER25 or ER32 ______________________________ 4 pcs3. Clamps ?for fastening workpiece ?____________________________ ?8 pcs4. Kit of bits ?______________________________________________ 20 pcs5. Brush____________________________________________________ 1piece6. Allen Key _________________________________________________ ?4pcs7. Open Spanner ____________________________________________ ?2pcs8. Sealing Strip (if with vacuum table) _____________________________ 1 piece9. Anchor Bolt _______________________________________________ 4-6pcsAvailable Options for YS CNC RouterYS CNC router optional accessories:Working tableSpindle (0-9.0KW)SystemZ?axis sizeDriver and motorRotary axis diameterT?slotvacuumHQDHSDNc-studio ? ? ?March 3 ? ? ?DSP0-23.6inch ? ? ?0-600mmStepper or servo0-19.6inch ? ? ?0-500mmYS cnc router model?Process areaWorking area(inch/mm)Max working speedTravel speed?X?(inch/mm)Y ? ? ?(inch/mm)Z ? ? ?(inch/mm)YS 404015.715.75.915.7*15.7787inch/s ? ? ?20m/min984inch/s ? ? ?25m/min400400150400*400YS 606023.623.65.923.6*23.6600600150600*600YS 609023.635.45.923.6*35.4600900150600*900mmYS 121247.247.27.847.2*47.2120012002001200*1200YS 122447.294.47.847.2*94.4120024002001200*2400YS 132551987.851*98130025002001300*2500YS 1530591187.859*118150030002001500*3000YS 203078.71187.878.7*118200030002002000*300YS 204078.7157.47.878.7*157.4200040002002000*4000mmMachine specs can be custom made.Please sent us inquiry, through the following email.Our staff will contact you ASAP.Machine structureThe machine structure is very steady, we have different time for you to choose.Base frameAll frames are designed using state-of-the-art CAD/CAM software which analyze stresses applied to the frame’s structure, also known as Finite element analysis. This state-of-the-art leading edge technology assures the support foundation is structurally stable that will last the test of time. Each frame is stress relieved assuring long term stability in the frame structure mechanics.Vacuum table and pumpTool clamp and vacuum sunctional function work together, so you can use clamp to fix the material, or use vacuum pump as you like. It can save a lot of power, as it is with 5.5kw vacuum pump.? ? ? ?? ?HSD or HQD spindleAll best brand in the world, it have water cooling type and air cooling type, low noisy, steady,Long time, you do not worry about repair it as its leading quality.Rotary axisRotary axis diameter from 100mm to 500mm, you can choose 100mm, 150mm, 200mm, 300mm, 400mm, 500mm diameter as you like. The rotary axis can put on the working table or put beside the working table as you like.GantryThe gantry is constructed of tubular steel with reinforcing ribs welded throughout the length of the column which results in a steady firm beam assembly. This quality engineering and workmanship result in smooth precision cutting.Gantry Support (Uprights)The Gantry uprights are cast iron with heavy duty gussets formed into the casting. Each support is machined for housing the various drive assemblies including motors, bearings, and wiring harnesses.Helical gear racks?The YS Series Production work cell uses precision Helical gear racks on the X- and Y-axes. The use of Helical precision rack n pinion assures smooth precision cutting at high feed rates. In addition, the method in which the racks are mounted help reduce maintenance.Drive MotorsThe New Venture Series Production work cell utilizes high-powered AC Servo motors powered by Delta Drives. These motors are brushless, therefore, requiring no regular maintenance, thus, reducing any maintenance downtime.BearingsHIWAN bearings and rails are used on all three axes. These superior quality components complement the overall construction by providing smooth play-free motion. This results in superior cut quality, requires minimal maintenance, and increases the machines longevity.
